Speed Selector and Wheels
3.1 Speed Selector
Remove cotter pin in upper rod and disconnect
rod from pivot.
Remove cotter in lower rod and disconnect from
shift arm lever.
Remove upper cap screw and nut in pivot and
remove shift rod and knob.
Remove lower cap screw and nut in pivot and
remove pivot from upper handle bar panel.
Check parts for wear or replacement.
Assemble, using reverse procedure.
3.2 Speed Selector Adjustment
Place Speed Selector in Reverse (R) position. While
pulling lower rod up to its maximum up position,
turn upper shift rod into lower rod until end of
upper rod lines up with hole in shift handle. Insert
upper rod into shift handle, install cotter pin and
tighten lock nut on shift rod.
3.3 Shift Arm Lever and Links
Remove cotter pin and clevis pin holding shift links
to shift arm lever.
Remove (3) capscrews, on outside of frame, holding
shift lever bracket to frame and remove bracket.
Remove capscrews, nut and spacer from shift arm
lever and disconnect lever from shift lever bracket.
Check parts for wear or replacement.
Assemble, using reverse procedure.
ggsl
isssi
- j
1. Lock Nut
2. Cotter Pin
3. Upper Shift Rod
4. Lower Shift Rod
5. Capscrew
6. Speed Selector Knob and Rod

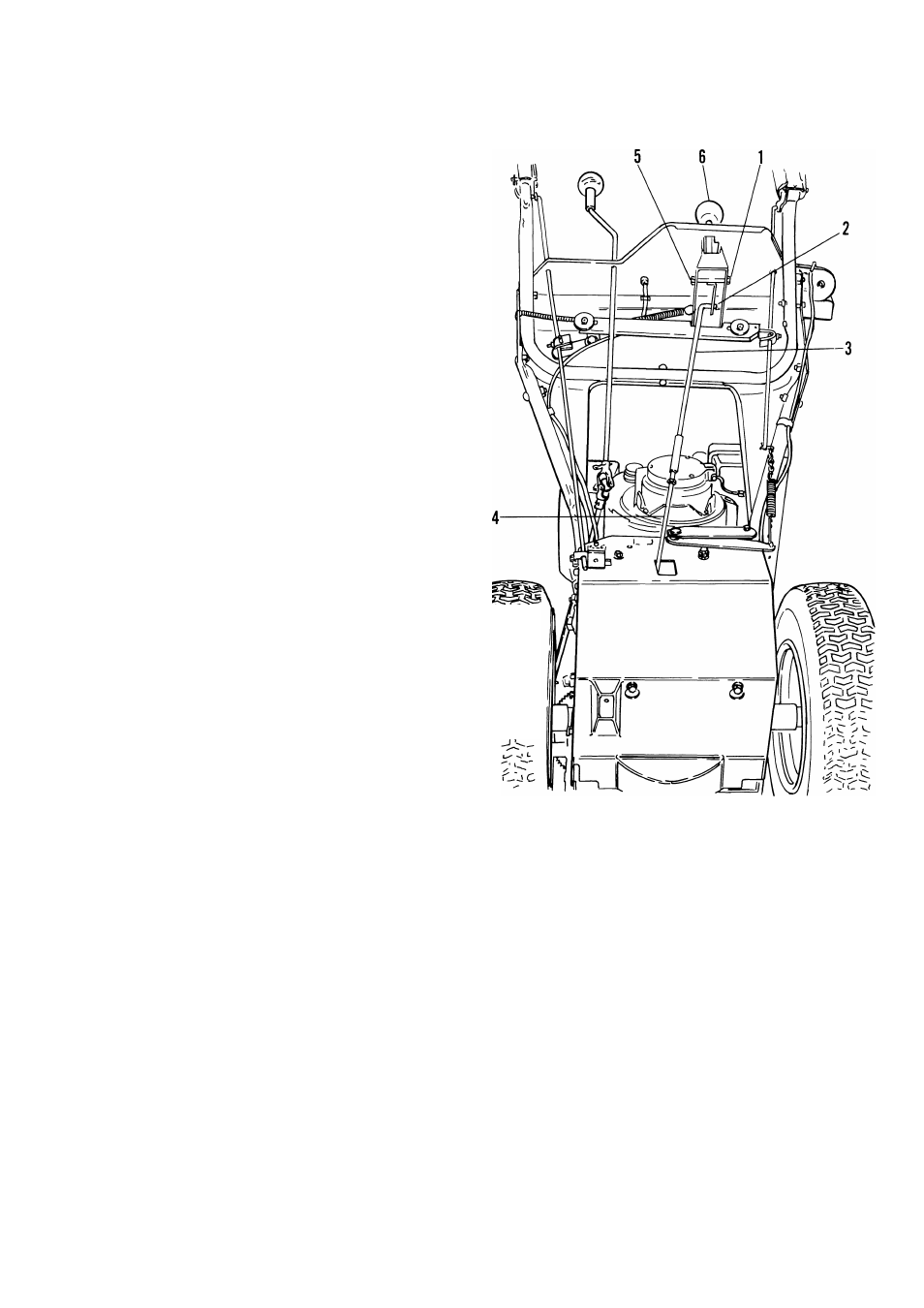

Figure 3-3: Speed Selector
3.4 Wheel Assembly
Remove hub cap, push nut and spindle cap.
Remove (3) bolts holding wheel to wheel hub and
remove wheel.
Check parts for wear or replacement.
Assemble, using reverse procedure.
