Engine and Headlight

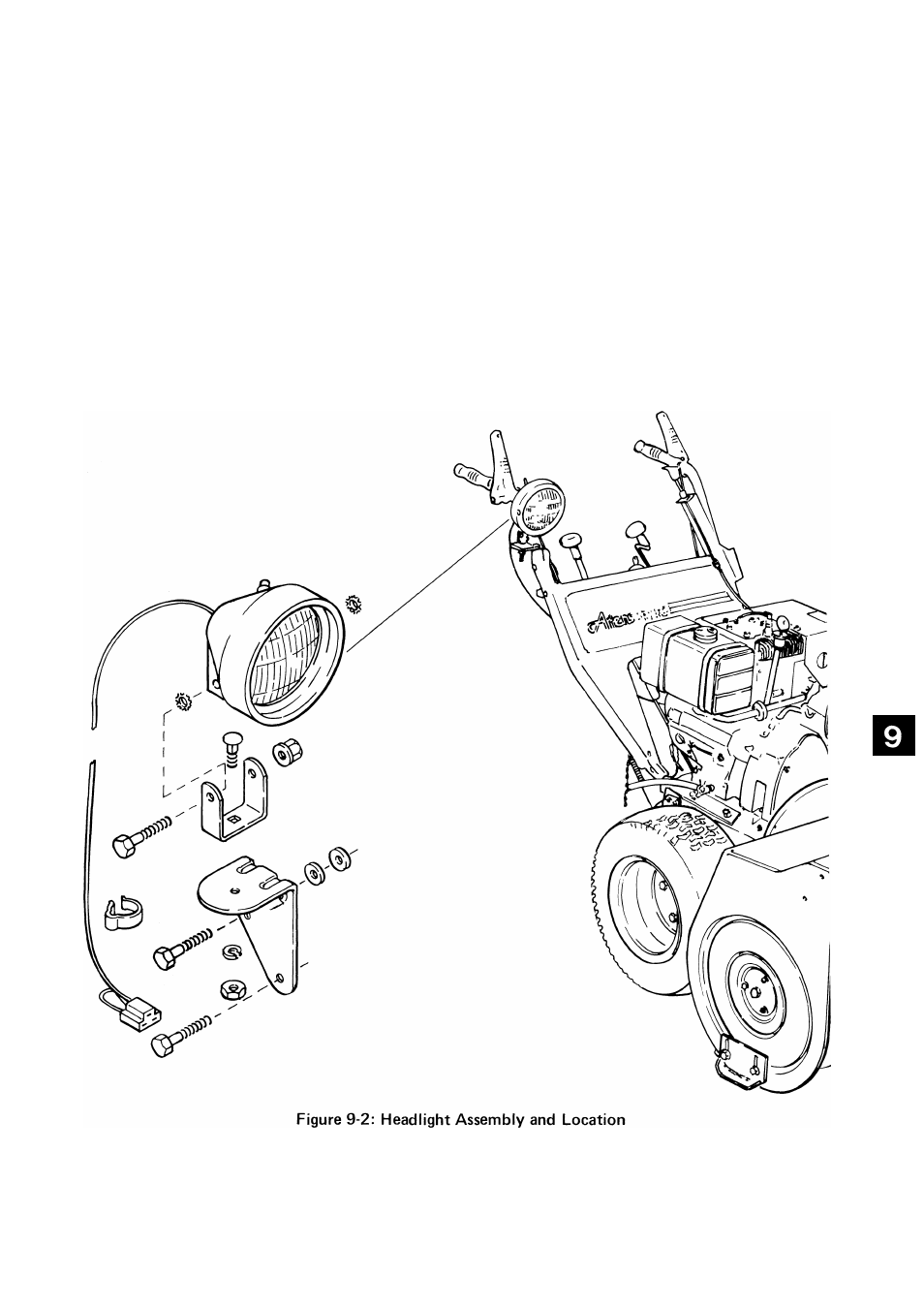

d.6 Headlight

Install headlight bracket (level with floor) on right

handlebar with hardware provided (Figure 10-1).

NOTE;

Two

washers

between

bracket

and

handlebar at top hole.

Assemble

headlight,

bracket

and

U-bracket

with

hardware

provided

and

install

onto

headlight

bracket.

Position headlight wire harness behind name plate
along handlebar and plug into alternator connector.

Secure harness to handlebar with clips.

9-3
