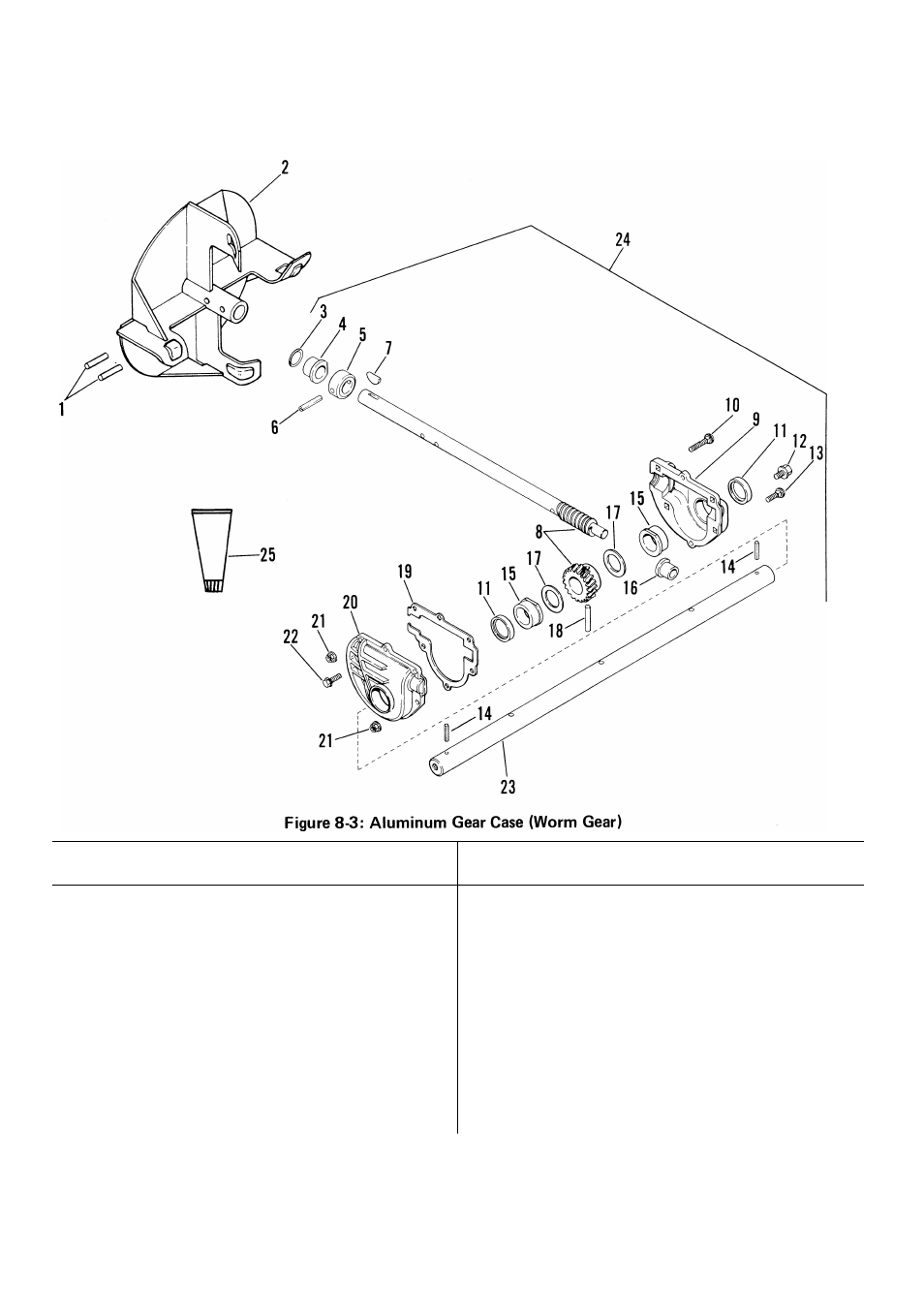

Gear Case
Aluminum
ITEM
NO.
DESCRIPTION
ITEM
NO.
DESCRIPTION
1
Roll Pin 1/4
X
1-3/4
15
Bushing
2
Impeller
16
Bushing
3
0-Ring
17
Washer 1"
4
Bushing
18
Groove Pin 5/16 x 1-7/16
5
Thrust Collar
19
Gasket
6
Groove Pin 3/16
X
1-1/4
20
R.H. Gear Case Half
7
Woodruff Key 3/16 x 7/8 x 3/8
21
Lock Nut 1/4-20
8
Worm Gear & Shaft
22
Taptite 3/8-16 x 1/2
9
L.H. Gear Case Half
23
Rake Shaft
10
Carriage Bolt 1/4-20 x 1-1/4
24
Gear Case Assembly
11
Seal
Requires 2 oz. Liquid Grease
12
Taptite No. 10-24 x 3/4
Part No. 000072
13
Carriage Bolt 1/4-20 x 7/8
25
Liquid Grease 8 oz. Tube
14
Roll Pin 3/16
X
1-1/2
8-4
