11

| PIR Ready VT7600 Series-Installation Guide

028-0363-02

u

ser

i

nTerfaCe

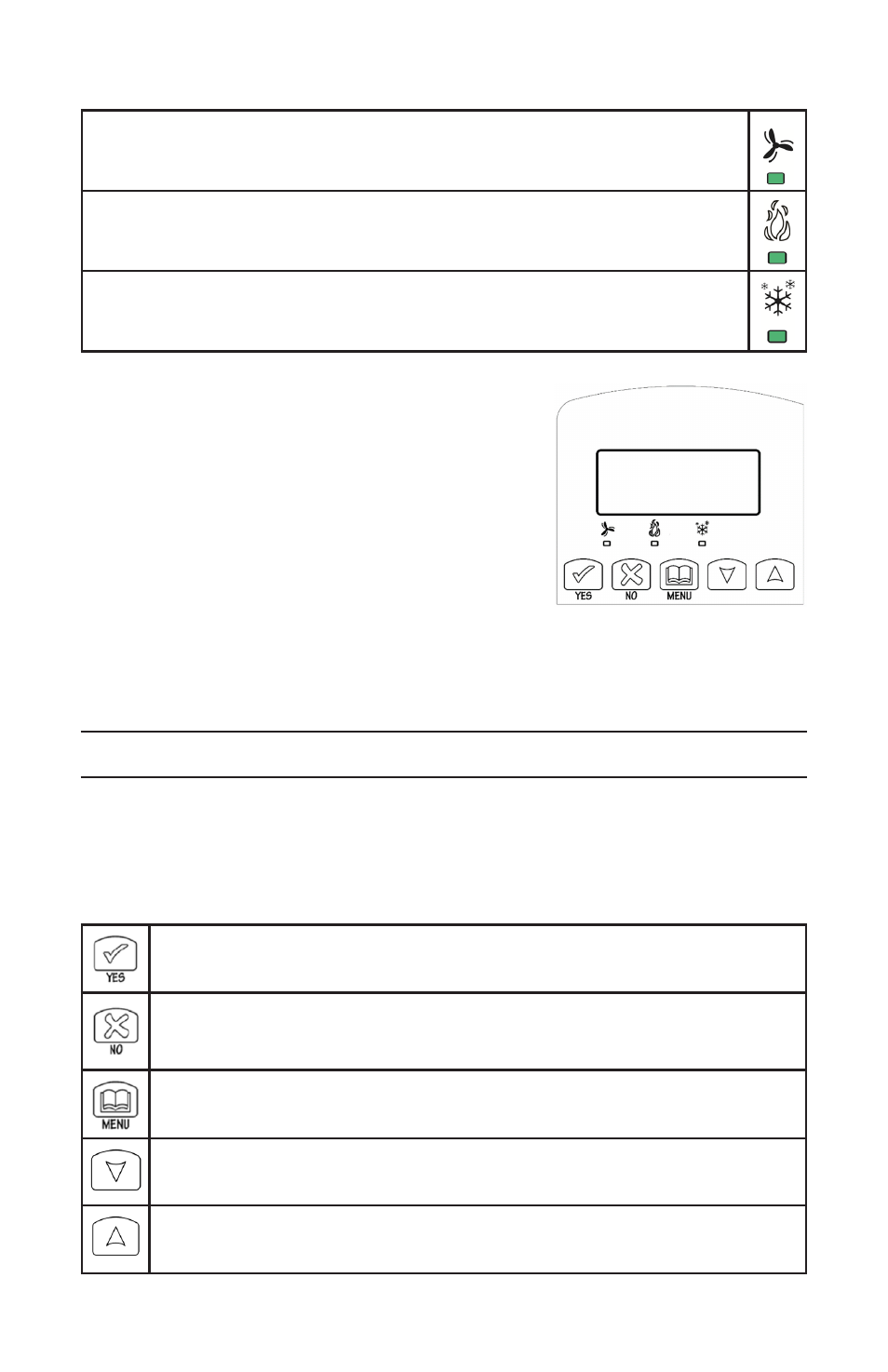

When any of the fan is ON, the FAN LED will illuminate

When heating & reheat is ON, the HEAT LED will illuminate

When cooling is ON, the COOL LED will illuminate

User configuring instructions menu
The VT76X6E series of controllers feature an intuitive,

menu-driven, back-lit LCD display that walks users

and installers through the configuring steps, making

the configuring process extremely simple. This menu

is typically accessed by the user to set the parameters

such as the clock time set, the schedule time events

and the system mode.
It is possible to bring up the user menu at any time

by depressing the MENU key. The status display

automatically resumes after exiting the user-configuring menu.
If the user pauses at any given time during configuring,

Auto Help text is displayed to

help and guide the user through the usage and configuring of the controller.

Ex.:

Press yes key to change cooling temperature setpoint

Use the up or down arrow to adjust cooling setpoint

Local keypad interface
Each of the sections in the menu is accessed and configured using 5 keys on the

Terminal Equipment Controller cover.
The priority for the alarms is as follows:

The YES key is used to confirm a selection, to move onto the next menu

item and to manually scroll through the displayed information.

The NO key is used when you do not desire a parameter change, and to

advance to the next menu item. Can also be used to toggle between heat-

ing and cooling setpoints.

The MENU key is used to access the Main User Menu or exit the menu.

The down arrow key is used to decrease temperature setpoint and to adjust

the desired values when configuring the Terminal Equipment Controller.

The up arrow key is used to increase temperature setpoint and to adjust the

desired values when configuring the Terminal Equipment Controller.
