Chapter 2 - Setup 8

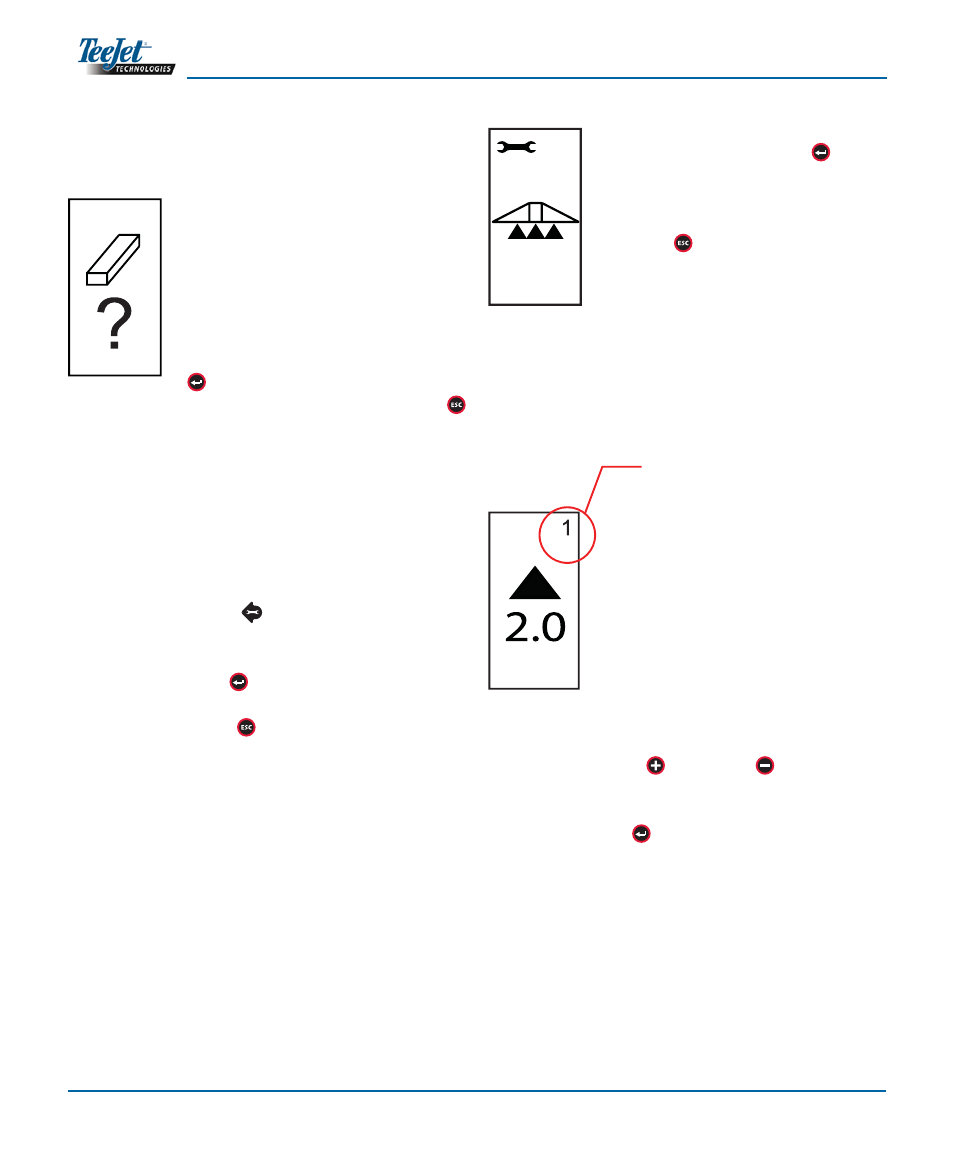

Area Reset
At the end of the CL230BP power up sequence, the
Area Reset window will be displayed:
Area Reset retains existing bounded
and applied areas and A-B guide-
lines. This option allows the bounded
and applied areas and guidelines to
be reset before starting on a new
fi eld or continuing an existing fi eld.
To reset the bounded and applied ar-
eas and guidelines, press the Enter
key. If the previous application is
being resumed, press the Escape
key to continue to Operation or Setup
mode. This screen is only available
upon CL230BP power up. It cannot
be accessed during normal opera-
tion.
Setup Mode
Press the Setup Mode key to enter into CL230BP
Setup Mode. The initial CL230BP Setup Mode Screen
will be displayed.
Press the Enter • key to save the setting and
advance the screen.
Press the Escape
• key to exit from Setup Mode
without saving any changes.
After 10 seconds of inactivity, Setup Screens will
•
time out (changes will be saved). The CL230BP
will return to Operation Mode.
INITIAL SETUP SCREEN
This is the initial CL230BP Setup
Screen. Press the Enter
key to
advance to the Delay On screen.
After time out, the screen will go back
to Operation Mode. Press the
Escape key to exit from Setup
Mode without saving any changes.
NOTE: If a SmartCable or SDM is not connected
to the system, Delay On, Delay Off, Overlap, Num-
ber of Boom Sections, and Boom Section Width
screens will not be displayed.
DELAY ON
Delay On functions as a “look ahead”
for timing the boom section valves to
switch on exactly when entering an
area that has not been applied. Delay
On time is established in seconds and
tenths of seconds. If the boom turns
on too soon when entering an un-
applied area, decrease the Delay On
setting. If the boom turns on too late
when entering an un-applied area, in-
crease the Delay On setting. Use the
Plus
and Minus keys to adjust
the value. The Delay On Time range
is 0.0 - 10.0 seconds. Press the En-
ter
key to accept the changes and
advance to the Delay Off setting.
NOTE: To increase the time setting (make On
or Off happen sooner), increase Delay On/Off re-
spectively. To decrease the time setting (make
On or Off happen later), decrease Delay On/Off
respectively.
Setup screens are numbered sequen-
tially for ease of operation.
