Chapter 3 - Operation 16
Bounded Area Screen
NOTE: If a SmartCable is not connected to the
system, the console cannot be placed in
“Auto” mode. However, acreage can be
bounded.
Applied Area Screen
NOTE: This screen will only be displayed if a
SmartCable or SDM are installed in the
system.
To reset an existing area counter, while on the Ap-
plied Area Screen, press the Enter
key to highlight
Applied Area 1. Press and hold the Minus key for
approximately 3 seconds to reset the total in Applied
Area 1. If the area counter was reset by mistake,
press the Plus
key again to restore the existing
total.
Highlight Applied Area 2 by pressing the Enter key.
Press and hold the Minus key for approximately
3 seconds to reset the total in Applied Area 2. If the
area counter was reset by mistake, press the Plus
key again to restore the existing total. Pressing the
Escape
key will deselect the highlighted area.

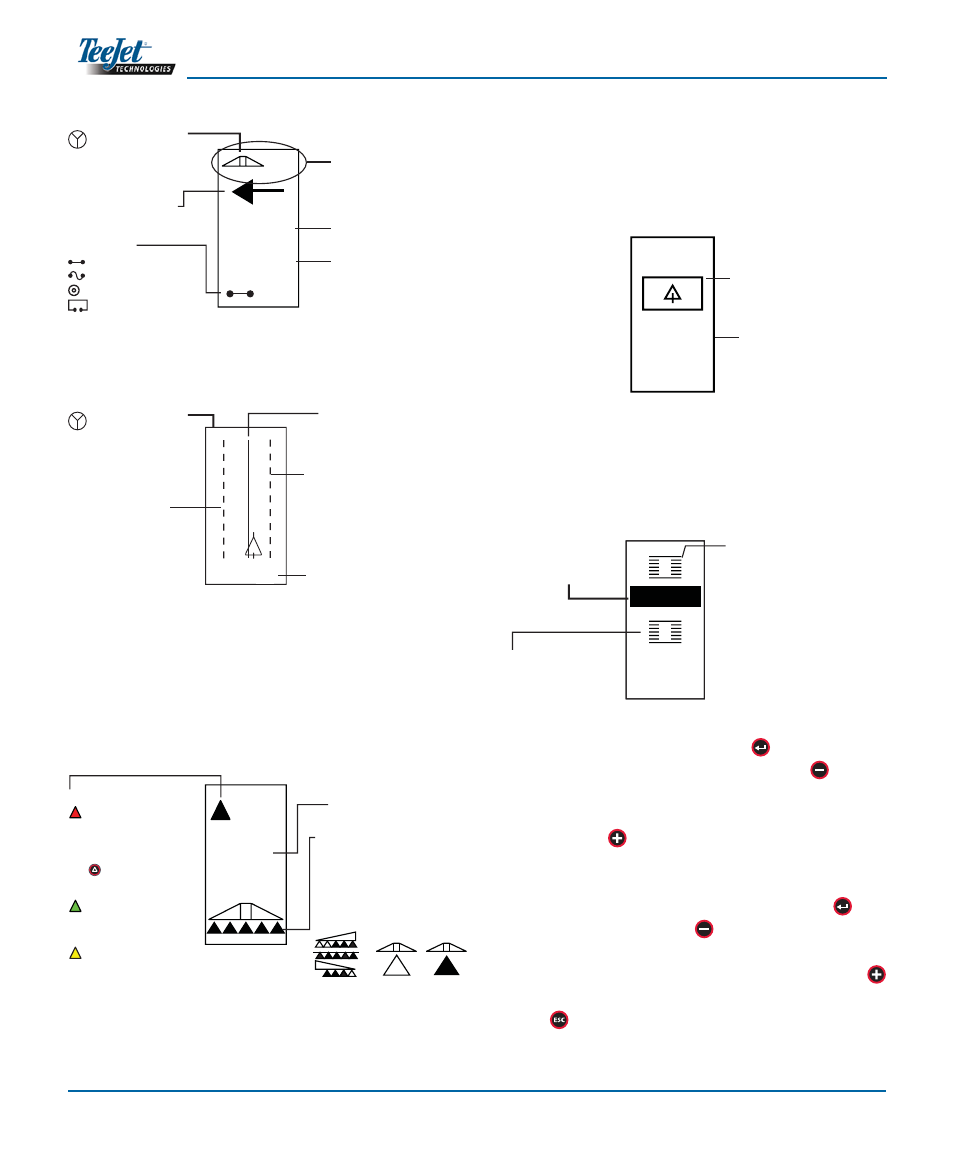

Navigation Screen - Operation
Guidance Screen - Map Page
Auto Boom Section Control Screen
NOTE: This screen will only be displayed if a
SmartCable or SDM are installed in the
system.
1200.0
33200.0
2
1
Acres
Applied Area 1
May be used to display the accumu-
lated total of applied area (in acres/
hectares) of the CURRENT fi eld (user
preference).
Applied Area 2
May be used to display the ac-
cumulated total area of all fi elds
applied (user preference).
The highlighted area indi-
cates which Applied Area is
selected for reset.
6.0 MPH
1.5
Swath Number
+ to the right of the A-B baseline
- to the left of the A-B baseline
Guidance Mode
Straight A-B Guidance
Curved A-B Guidance
Circle Pivot Guidance
Headland Circuit
Distance to main guideline
Vehicle Speed
Direction to main guideline
+1
This icon located in the
upper left corner of the
screen indicates that
Assisted Steering is engaged.
This icon located in the
upper left corner of the
screen indicates that
Assisted Steering is
engaged.
KM/H
6.0 Ft
Center guideline
Next guideline to the right
Next guideline to the left
Distance from
center guideline M
Mode Indicator
ALL - All On mode
overrides the controller
boom section status and
turns all boom sections
on. The Swath Status
key must be held the
entire duration of oper-
ating in ALL ON mode.
AUTO - Auto mode al-
lows the CL230BP to
automatically control the
boom sections.
MAN - Manual mode
disables automatic
boom section control.
The operator controls
the boom sections via
the rate controller boom
switches.
6.0
MPH
AUTO Vehicle Speed
Individual Boom Section Status
The CL230BP can control up to 15
boom sections. Hollow triangles
indicate the boom section is “off”.
Solid triangles indicate the section
is “on”.
Example: Boom
Section
Off
Boom
Section
On
KM/H
1435.00
Bounded Area
Indicates a bounded area has been
completed
Hectares (acres) Bounded
Indicates the number of hectares
bounded by Headland Circuit
55
8o
11o
