TeeJet CenterLine 230BP - Manual (Page 11)

Chapter 2 - Setup 10

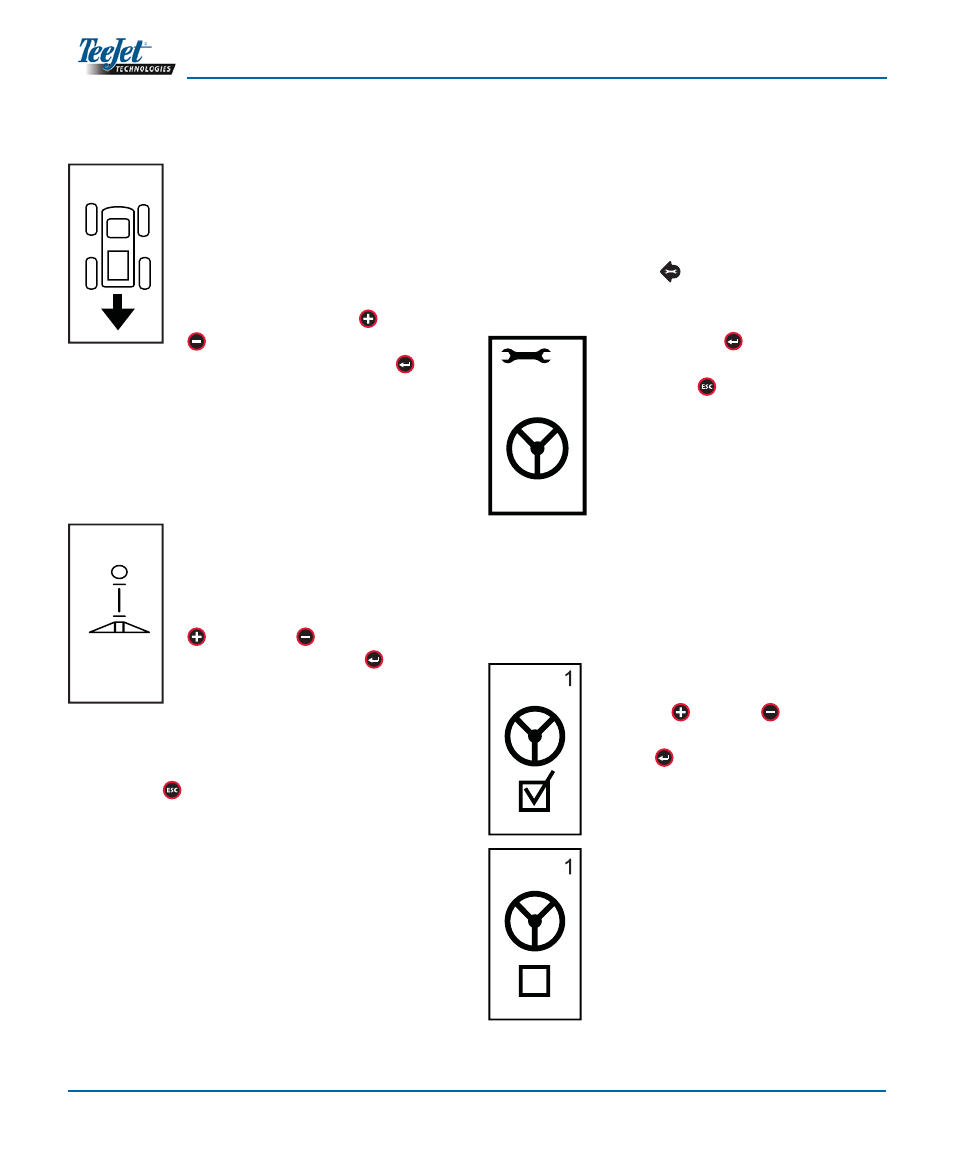

BOOM OFFSET DIRECTION
A BACKWARD selection (as shown)
indicates the boom is located be-
hind the GPS antenna as the vehicle
moves in a forward direction. A FOR-
WARD selection indicates the boom
is located in front of the GPS antenna
as the vehicle moves in a forward di-
rection. Use the Plus
and Minus
keys to adjust between Forward or
Backward. Press the Enter key to
accept the changes and advance to
the Boom Offset Distance setting.
BOOM OFFSET DISTANCE
Defi ne the distance from the GPS
antenna to the boom in decimal feet
(decimal meters). The boom offset
distance range is 0 to 50 meters (0
to 164 decimal feet). Use the Plus
and Minus keys to change the
value. Press the Enter key to ac-
cept the changes.
Once the fi nal setting has been entered and saved,
the screen will return to the initial CL230BP Setup
Screen. If no additional changes are required, press
the Escape
key to exit to Operation Mode.
Assisted Steering Setup Mode
NOTE: If a Steering Control Module (SCM) is
not connected to the system, Assisted Steering
Setup Mode will not be displayed. Proceed to the
next section.
Press the Setup Mode key until the initial Assisted
Steering Setup Mode screen is displayed.
Press the Enter key to save the set-
ting and advance the screen. Press
the Escape
key to exit from Setup
Mode without saving any changes.
After 10 seconds of inactivity, Setup
Screens will time out (changes will
be saved). The CL230BP will return
to Operation Mode.
NOTE: If an SCM is connected to the CL230BP
after it is powered on, the connection will not be
detected. Power must be cycled.
STEERING
Steering allows the Assisted Steer
function to be turned on and off. Use
the Plus
or Minus keys to toggle
the setting to “On” or “Off”. Press the
Enter
key to accept the changes
and advance to the Look Ahead set-
ting.
A checked box activates the Steering
Control system.
