NOTE: Once the Applied Area Screen is exited,
the area reset will become permanent.
The restore feature cannot be used after
the screen has been exited.
To exit the Applied Area screen, select the Change
Page
key. The CL230BP will advance to the Navi-
gation screen.
NOTE: If the system is not connected to a Smart-
Cable, Applied Area will not be accumu-
lated. The Applied Area screen will not be
displayed.

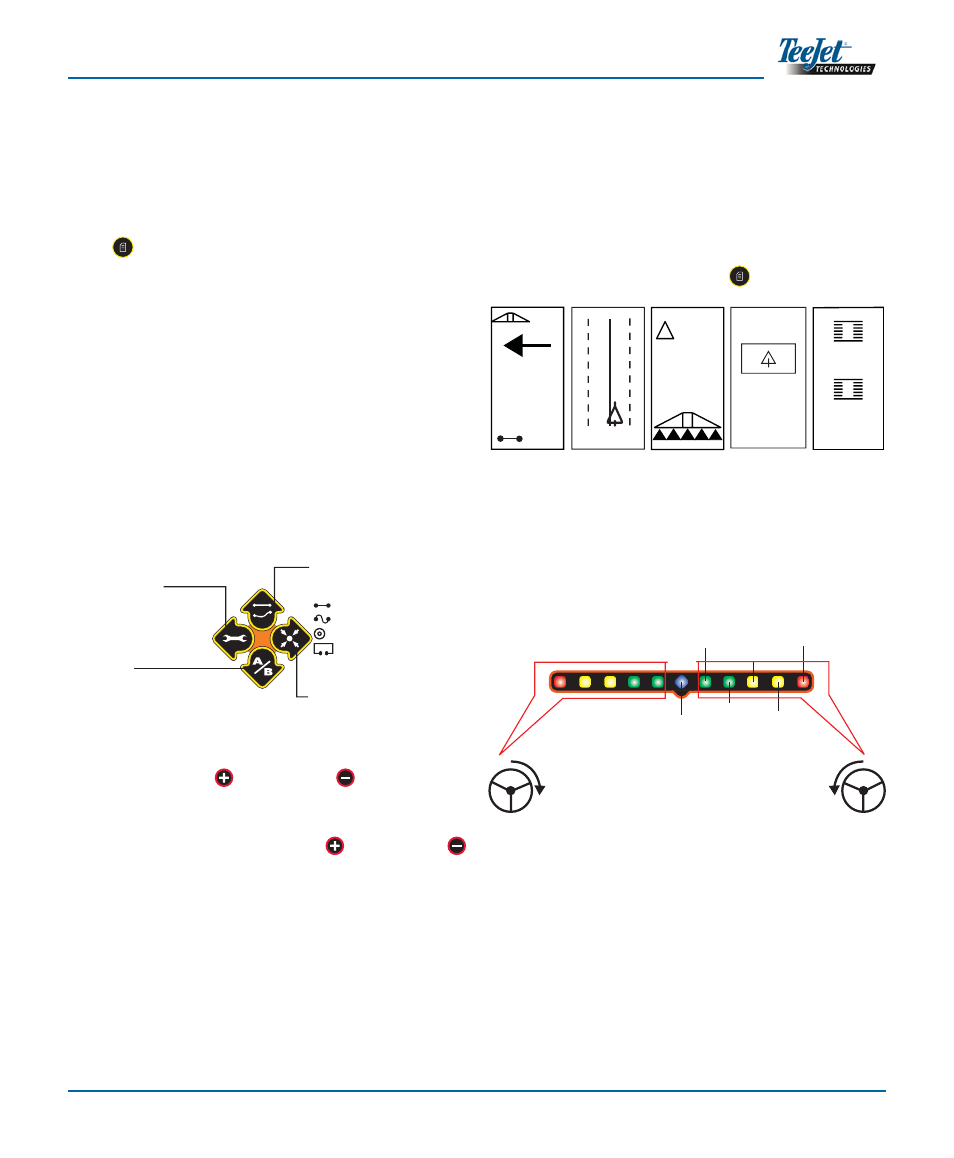

Operation Function Keys
There are several functions that can be performed
during operation. Most of these functions are initiated
by the four arrow keys, located on the keypad.
NOTE: The Plus and Minus keys control
console brightness levels during Opera-
tions modes. However, if GPS is not be-
ing received, the Plus
and Minus
keys will control the contrast level.
Operations Screens
Several screens are displayed during vehicle opera-
tion. They are consistent throughout the application
and appear as follows.
To change the view of any screen during Operations
mode, press the Change Page key.
Guidance Operation - Modes
Guidance capabilities include Straight A-B, Curved
A-B, Circle Pivot, and Headland Circuit.
lights illuminated on the right of the
lightbar require a steering adjust-
ment to the left lights illuminated on the left of the
lightbar require a steering adjust-
ment to the right
Center
60 cm (2 ft)
90 cm (3 ft)
1.2 m (4 ft)
1.5 m (5 ft) 30 cm (1 ft)
Guidance Mode
This key selects the desired guidance
mode:
Straight A-B Guidance
Curved A-B Guidance
Circle Pivot Guidance
Headland Circuit
Setup Mode
This key exits OPERATION
and enters SETUP mode.
Mark A-B Line
This key allows the operator to estab-
lish a new A-B line.
Return to Point
This key allows the operator to estab-
lish a point in memory so CL230BP
can navigate the vehicle back to that
point.
Hectares
8o
11o
+2
6.0 MP
1.5
Navigation
Screen
H
6.0
MPH
AUTO
Auto Boom Screen
6.0 Ft
Map Page
1200.0
33200.0
2
1
Applied Area
Screen
Completed Circuit -
Calculated Area
KM/H
M
KM/H
