CenterLine 230BP
020-034-UK R3
3
Tilt Gyro compensation is now available as an •
upgrade to the CenterLine 230BP. For part num-
bers and pricing, please consult your regional
TeeJet Technologies representative.
The upgrade includes the support of FieldPilot
•
Assisted Steering. Connection to the SCM is
now via CAN. Existing FieldPilot 220 custom-
ers upgrading to FieldPilot 230 must arrange to
exchange their SCM.

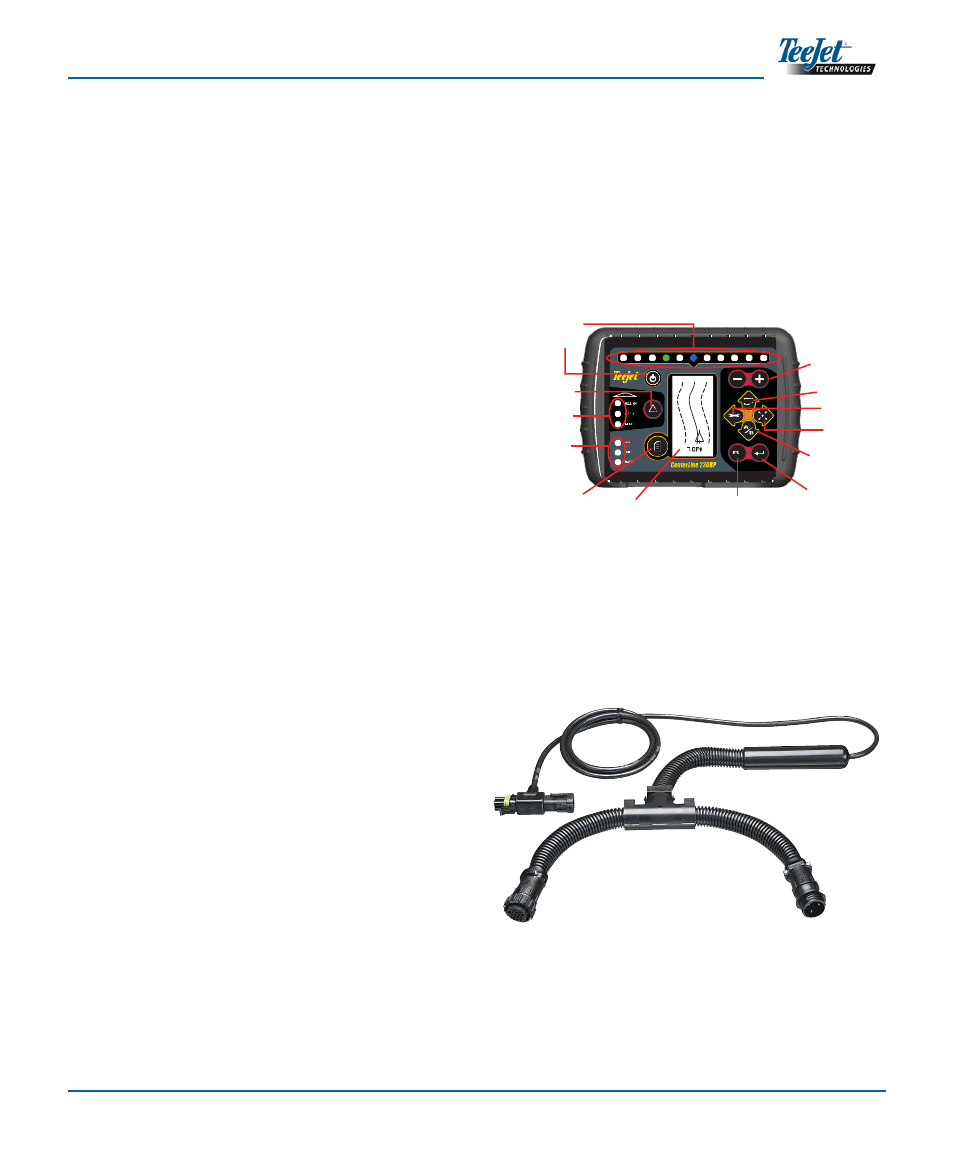

SMART CABLE - The Smart Cable is the link
between the CL230BP, the existing rate control-
ler, and the boom section valves. It allows the
CL230BP to control the boom sections automati-
cally.
CHAPTER 1 - INTRODUCTION
This User Guide provides information for software
version 1.07.
The CenterLine 230BP software 1.07 provides the
following enhancements to the system:
Applied area now includes only the area under •
the active boom sections and acre counters will
accurately represent applied area. Prior calcu-
lations counted all area under the entire boom,
regardless of whether individual sections were
on or off.
Unapplied area is now considered “untreated”
•
and can be treated at a later time.
Boundary area is calculated and displayed as
•
a result of a headland perimeter pass in head-
land circuit mode. This value is held in memory
through the next power cycle and is erased when
the user chooses to clear the memory and begin
application of a new area.
When a fi eld boundary is created in headland cir-
•
cuit mode, a “No Spray” zone is created outside
of that fi eld boundary. This boundary and “No
Spray” zone is held in memory through the next
power cycle.
Area information and as-applied data are now
•
updated and saved with greater frequency.
Drive Sensitivity (LED spacing on the lightbar)
•
can now be changed in the system Setup menu.
A section width of “0.0” can now be entered.
•
Contrast is now adjustable with the +/- keys •
during the startup splash screen. Once GPS
is attained, the +/- revert back to adjustment of
screen Brightness.
A system setting for “GPS Source” allowing a
•
devoted external source has been added. The
default GPS source is the internal GPS receiver.
DGPS LED activation will now cycle through a 2
•
minute delay for the purpose of stabilizing DGPS
performance. It is recommended guidance mode
operation begin after the DGPS LED is active.
ESC
GPS
GPS
DGPS
ALL ON
AUTO
MAN
Power
Increase/Decrease
Swath Status Lights
GPS Status Lights
Change Page
Setup Mode
Escape
Enter
Display
Return to Point
Mark A/B
Line
Guidance Mode
Lightbar
Swath Status
(Selects Mode)
