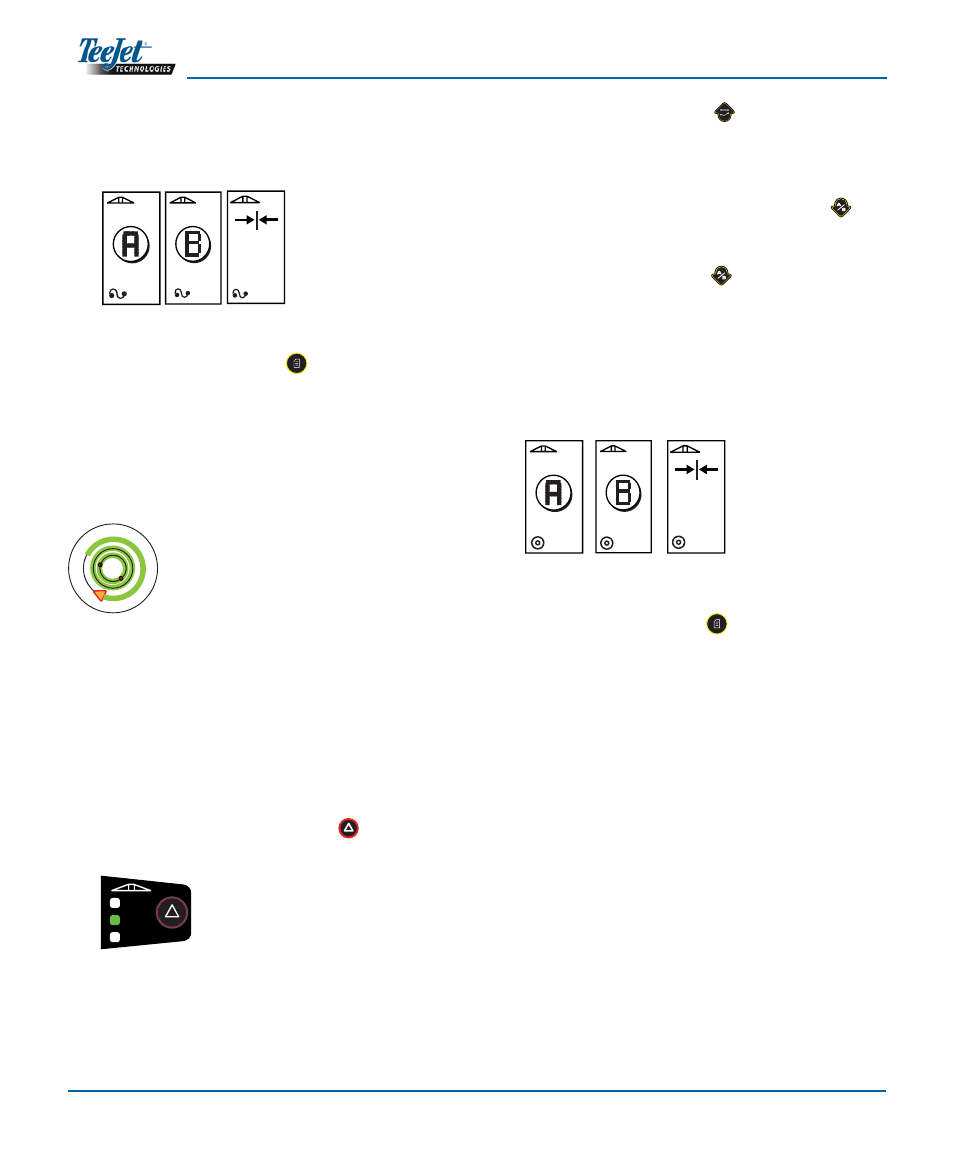

4. Use the Guidance Mode key to select Circle
Pivot guidance.
5. Drive to the desired location of Point A. With the
vehicle in motion, press the Mark A/B
key
to establish Point A. Point B will be displayed
on the screen. Drive to the location of Point B
and press the Mark A/B
key again to estab-
lish the A-B line. Point B must be at least 1/2 of
the way around the circle to complete the circle
pivot. Once Point B has been established, the
CL230BP will immediately begin providing navi-
gation information with the lightbar and Naviga-
tion Screens.
6. Use the Change Page key to advance the
screen views.
A-B line. The CL230BP will immediately begin
providing navigation information with the lightbar
and Navigation Screen.
6. Use the Change Page key to advance the
screen views.
Circle Pivot Guidance
Circle Pivot guidance provides guidance around a
central location that radiates outward.
NOTE: Steps 1 - 3 are only applicable if a Smart-
Cable or SDM are installed on the sys-
tem.
1. Turn the controller master switch to the “On”
position. The individual boom section switches
should remain in the “Off” position.
2. To activate automatic boom section control,
press the Swath Status Switch key until Auto
Mode is illuminated on the console.
3. In areas where application is not desired, manu-
ally turn “Off” the rate controller master switch to
shut off the booms. Turn the master switch “On”
to resume application.
