Installation - smartcable – TeeJet CenterLine 230BP User Manual
Page 6
CenterLine 230BP
020-034-UK R3
5

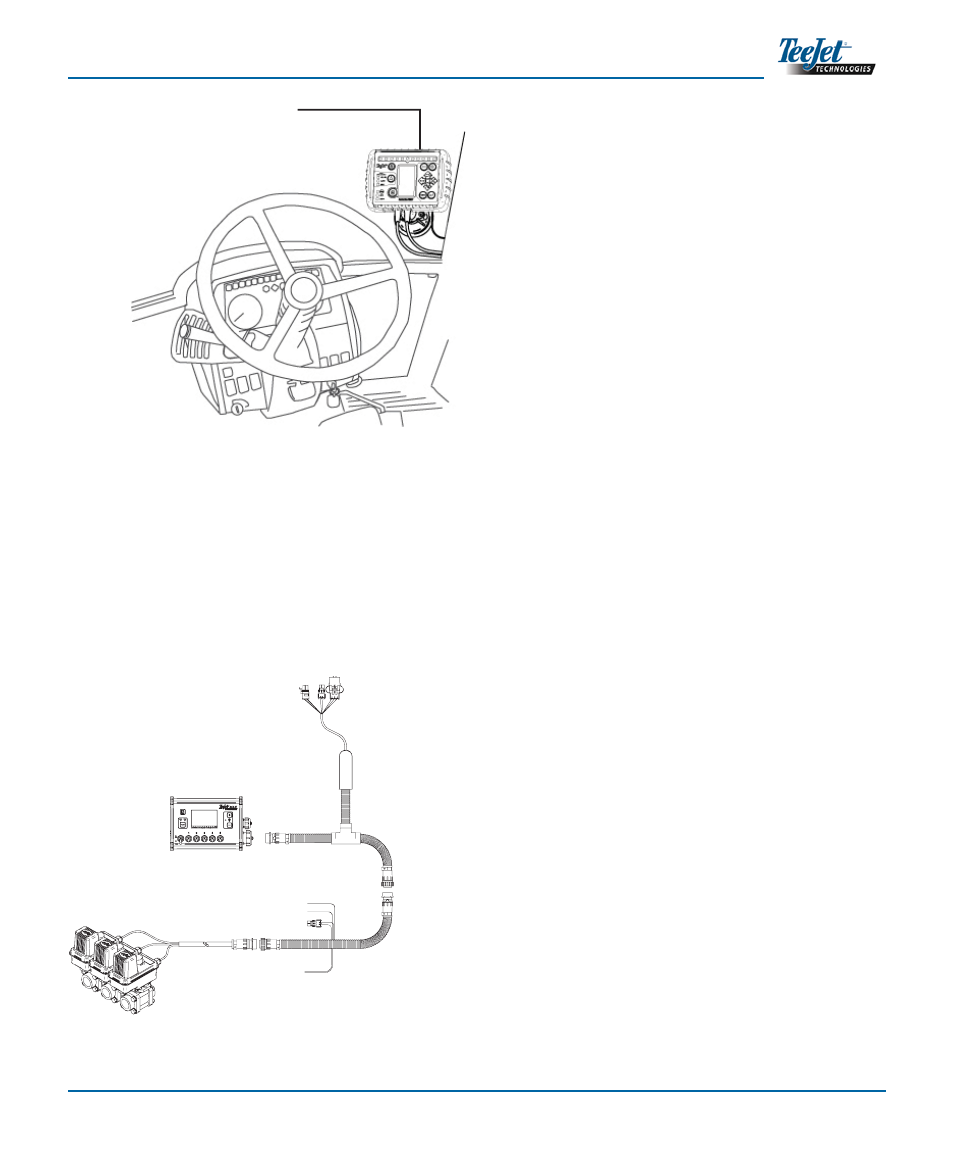

Use the suction cup to mount the
console to the window
Installation - SmartCable
Install the SmartCable between the rate controller
and the harness.
The rate controller Master Switch must be set to the
“On” position and the individual boom section control
switches must be set to the “Off” position.
TeeJet 844-E
Rate Controller
Master Switch “On”
Boom Section Switches
“Off”
SmartCable
Adapter Harness
Rate Controller Harness
Valves
Remote Master
+12 sw
RADAR Power
Battery
