CenterLine 230BP
020-034-UK R3
15
CHAPTER 3 - OPERATION
The CenterLine 230BP is confi gured to work with Au-
tomatic Boom Section Control (ABSC) through the
use of a SmartCable or Section Driver Module (SDM).
It is also confi gured to work with Assisted Steering
through the use of a Steering Control Module (SCM).
A Tilt Gyro Module is available as a standard feature
when a SCM is in use. It can also be used as an add-
on feature if no SCM is present.
Power Up Sequence
Power up the system by pressing the Power
button.
Power down the system by pressing and holding the
Power
button approximately four (4) seconds.

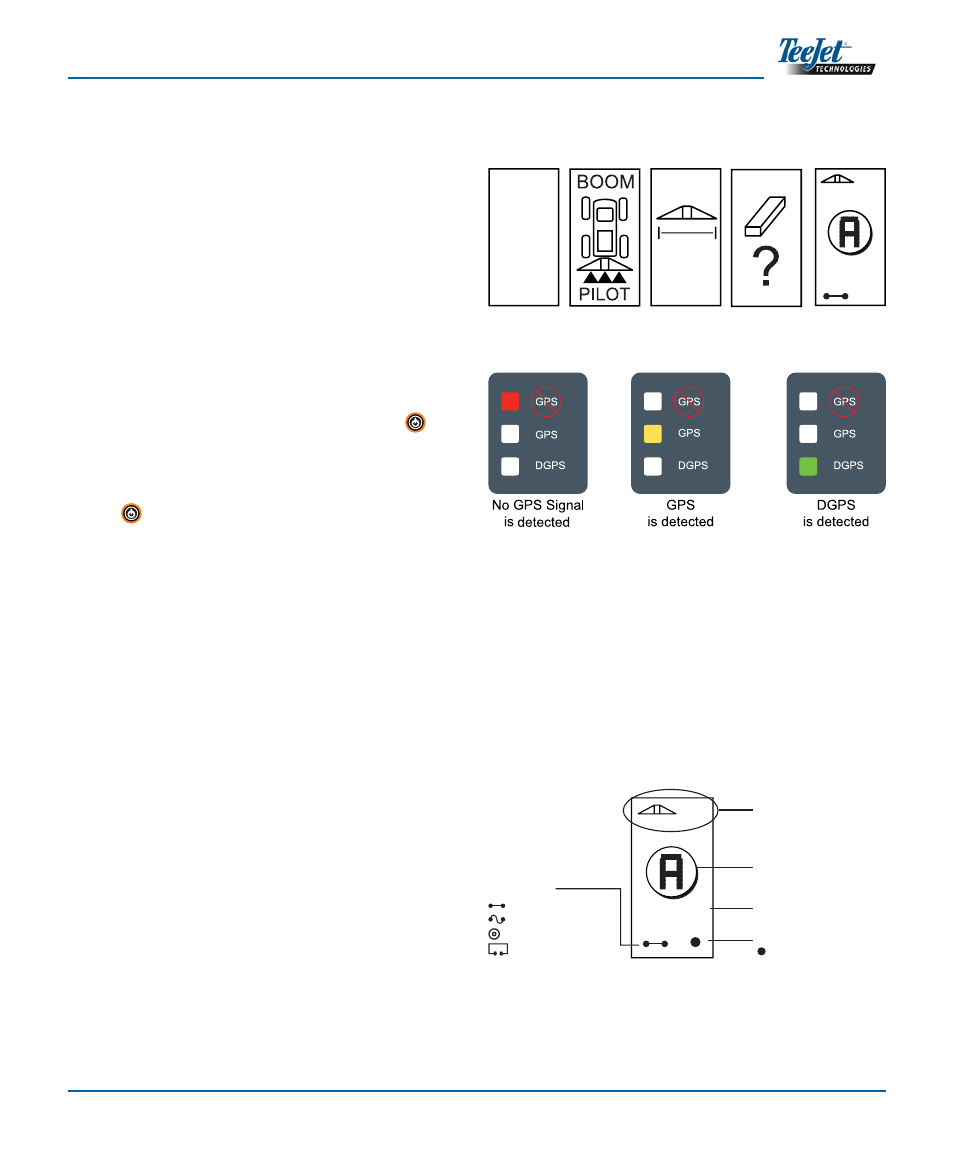

At power up, the CL230BP will perform the following
steps:
Display copyright and software version screen •
for three (3) seconds.
Display the splash screen for two (2) seconds.
•
Detect if GPS data are present (this occurs simul- •
taneously within the display screen sequence).
Display the current swath width for three (3) sec-
•
onds.
The Area Reset screen will be displayed.
•
The splash screen is displayed until the (D)GPS •
LED is illuminated or Setup mode is entered.
Once (D)GPS is locked, the Operation screen
will be displayed.
CL230BP Operation Reference
Screens
Navigation Screen - Mark A-B
+0
6.0 MPH
Swath Number
+ to the right of the A-B baseline
- to the left of the A-B baseline
Return to Point Indicator
indicates a point is stored
Guidance Mode
Straight A-B Guidance
Curved A-B Guidance
Circle Pivot Guidance
Headland Circuit
Action Indicator (currently
Mark Point A)
Vehicle Speed
If the DGPS light is fl ashing, communication has been
established with the GPS source; however, NMEA out-
put rate is too slow. Ensure proper NMEA message set-
tings of 5 GGA in the GPS device. Application cannot
occur until proper communication is established.
29.
Swath Width
Screen
5
BP
TeeJet
© 2008
Copyright
Software
Version Screen
CL230
Splash Screen
6.0 MPH
GPS detected
Operation
Screen
+0
Area Reset
Screen
V1.07
KM/H
KM/H
