ISOBUS Job Computer : IC18 Spreader European
Section or Icon Description
Remaining Bed Contents Displays the remaining bed content
NOTE: If no bed sensor is fitted or the contents are not entered in the Filling Menu prior to spraying, Bed
Contents will display “0”.
Application Rate Displays the actual application rate per hectare/acre
NOTE: When the Master is “On” the actual application rate per hectare/acre will be displayed. When the
Master is “Off” the target rate is displayed.
Alarm Displayed if an alarm condition is active
Roller RPM Displays the RPM of the belt roller
Spinner RPM Displays the RPM of the spinner
Master Screen
The Master Screen gives access to the systems currently available on your VT.
• To view the Master Screen options, select MASTER SCREEN KEY in bottom right corner of any screen.

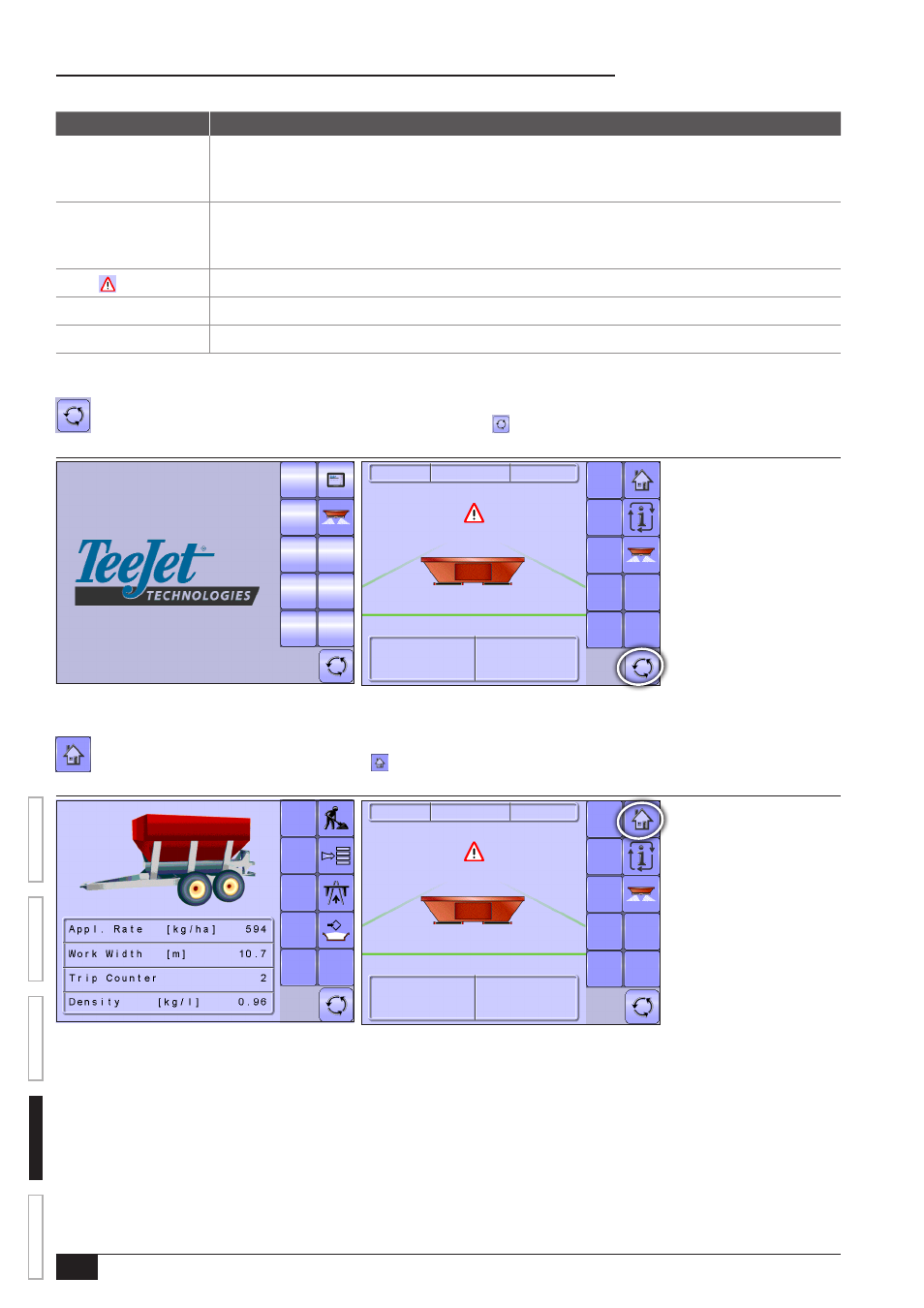

Figure 4-2: Master Screen
Master Screen Key on Operation Mode Screen
C n t 1
0 . 0 5 0 0
2 9 8 . 2 t
0
1 . 1 4 h a
1 3 11
k g / h a k g / m
0 R P M R P M
R o l r S p n r
Home Screen
The Home Screen gives access to the IC18’s available functions: Operation Mode, Transport Mode and Main Setup.
• To view the Home Screen, select HOME KEY in the top right corner of any screen.
Figure 4-3: Home Screen
Home Key on Operation Mode Screen
C n t 1
0 . 0 5 0 0
2 9 8 . 2 t
0
1 . 1 4 h a
1 3 11
k g / h a k g / m
0 R P M R P M
R o l r S p n r
