Implement Speed Sensor

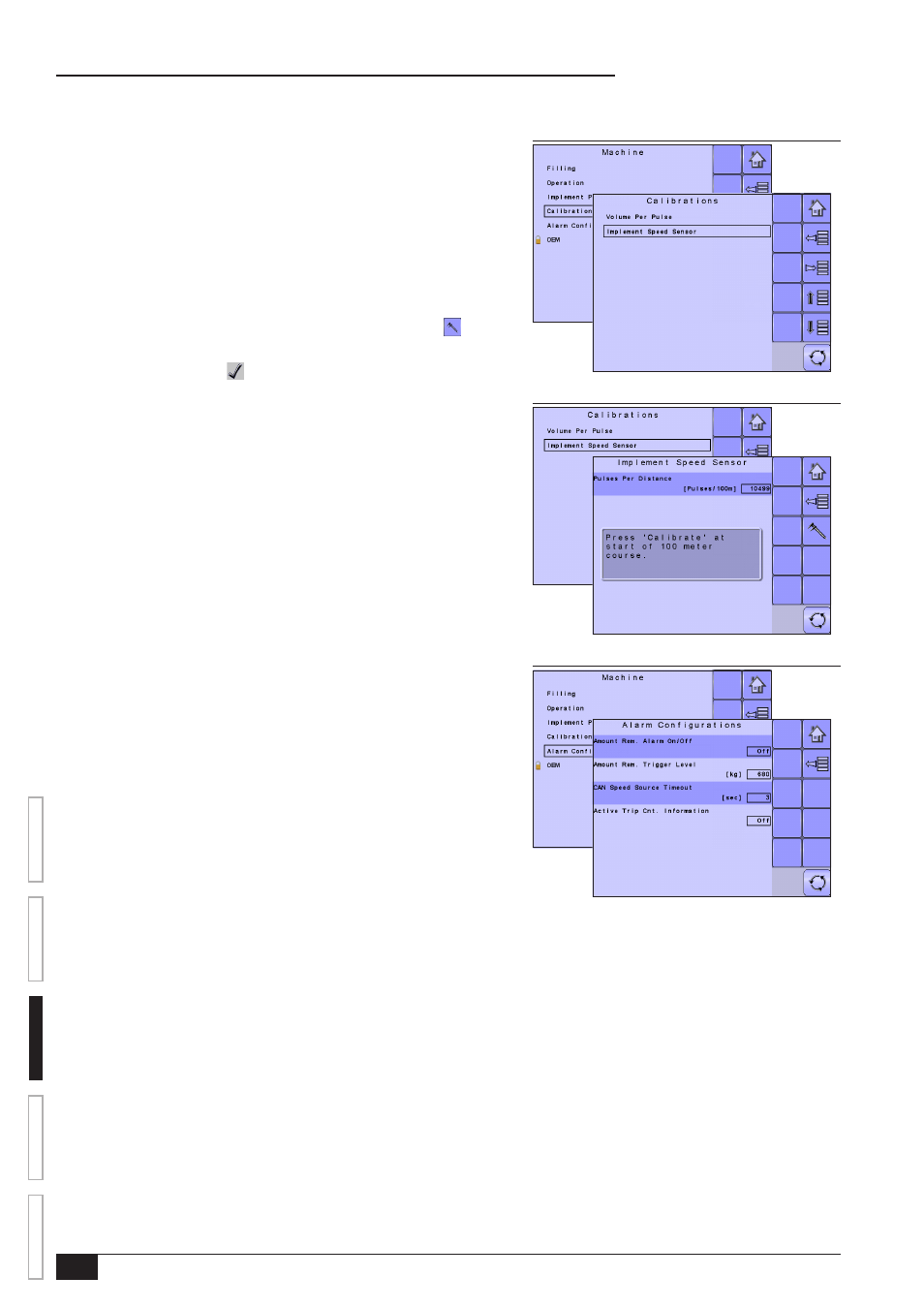

Figure 3-23: Calibrations
Figure 3-24: Implement Speed Sensor
Figure 3-25: Alarm Configurations
The Implement Speed Sensor establishes the wheel pulses over a specified
distance. This value can be established manually or calibrated automatically.
Manual Calibration
Manual calibration establishes the pulses based on a user entered value.
• To select the Pulses per Distance, use the number pad or slide bar.
Automatic Calibration
Automatic calibration establishes the pulses using the automatic calibration
function.
• To calibrate the pulses per distance, select CALIBRATION KEY .
• Follow the series of instructions displayed.
• Select the ACCEPT KEY to complete the calibration
The counted wheel pulses will be displayed during the automatic calibration.
Alarm Configurations
Alarm Configurations establishes alarms on or off as well as sets their trigger level.
Amount Remaining Alarm On/Off
The Amount Remaining Alarm will appear if the hopper amount has reached the
low limit level entered. Select either “On” to activate the alarm, or “Off” to deactivate
the alarm.
• To select the Amount Remaining Alarm mode, select an option from the drop
down menu or use the UP/DOWN ARROWS to highlight the option.
Amount Remaining Trigger Level
Amount Remaining Trigger Level establishes the low limit that will trigger the
Amount Remaining Alarm.
• To select the Amount Remaining Trigger Level, use the number pad or slide
bar.
CAN Speed Source Timeout
CAN Speed Source Timeout establishes the number of seconds the system will
continue to run on CAN speed without receiving CAN input before the alarm
triggers.
• To select the CAN Speed Source Timeout time, use the number pad or slide
bar.
Active Trip Count Information
The Active Trip Count Information Alarm will appear on power up to identify to
the user which trip counter is active and that this specific counter will be used for
storing work data. Select either “On” to activate the alarm, or “Off” to deactivate the
alarm.
• To select the Active Trip Count Information alarm mode, select an option from
the drop down menu or use the UP/DOWN ARROWS to highlight the option.
