ISOBUS Job Computer : IC18 Spreader European
MACHINE
Machine configures machine settings. Options include Filling, Operation, Implement Parameters, Calibrations, Alarm Configurations and
OEM.
MAIN SETUP MODE MENU STRUCTURE
| | | | | |
Counters Job Parameters Machine User Interface Communication Help
Filling
Operation
Implement parameters
Pulses per Volume – Calibrations
Implement Speed Sensor Alarm configurations
OEM
The OEM setup menu is password protected and the settings in this menu are directly related to the fitted OEM equipment.

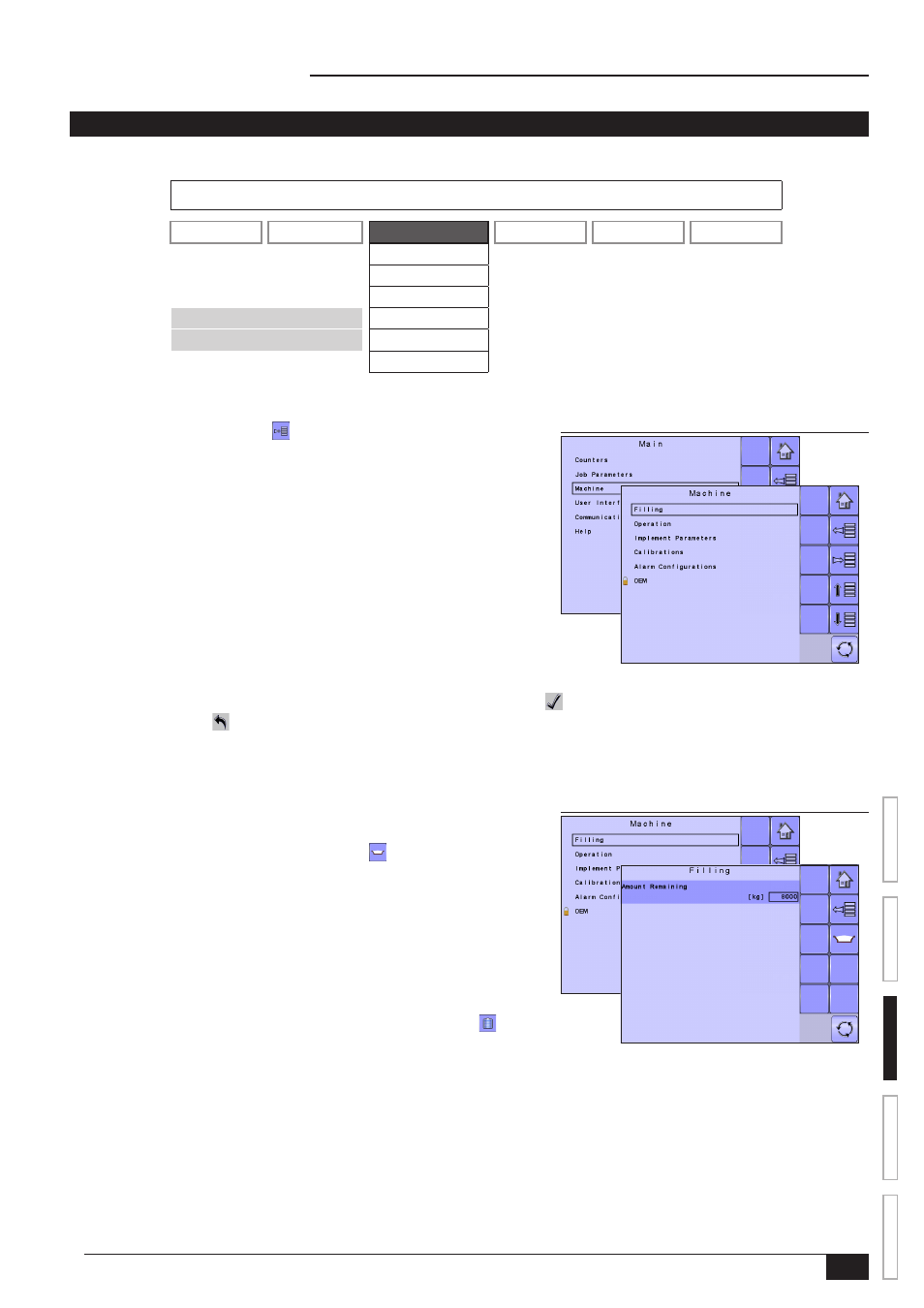

Figure 3-15: Machine
1. From the Main Setup Screen , select MACHINE.
2. Select from:
►Filling – establishes the amount of material remaining in the bed.
►Operation – establishes Speed Source, and Simulated Speed.
►Implement Parameters – establishes the Working Width, Fast Empty Bed
RPM and Master Switch location.
►Calibrations – establishes either manual or automatic settings of the
sensors.
►Alarm Configurations – establishes alarms on or off as well as sets their
trigger level
►OEM – The OEM setup menu is password protected and the settings in this
menu are directly related to the fitted OEM equipment. Refer to the OEM
manual for information regarding OEM settings.
NOTE: Settings are NOT automatically saved when selected. The ACCEPT KEY must be selected to save the setting. Select the
ESCAPE KEY to escape without saving settings and return to the previous menu.
Filling
Figure 3-16: Filling
Filling establishes the amount of material remaining in the bed.
NOTE: The size of the tank is established in the OEM menu. This is the number
that will repopulate when the Full Bed Key is pressed.
Amount Remaining
Actual Content displays the current volume of content in the tank.The volume can
be manually adjusted.
• To adjust the volume, use the number pad or slide bar.
Full Bed
Full bed returns the amount remaining value to the maximum volume of the bed.
• To reset the Amount Remaining value, press the FULL BED KEY .
