ISOBUS Job Computer : IC18 Spreader European
HELP
The Help menu allows the operator to choose between Diagnostics and the display of information about serial number, CAN BUS
information, etc. These menus are typically accessed upon Customer Service personnel request only.
MAIN SETUP MODE MENU STRUCTURE
| | | | | |
Counters Job Parameters Machine User Interface Communication Help
Diagnostic
About

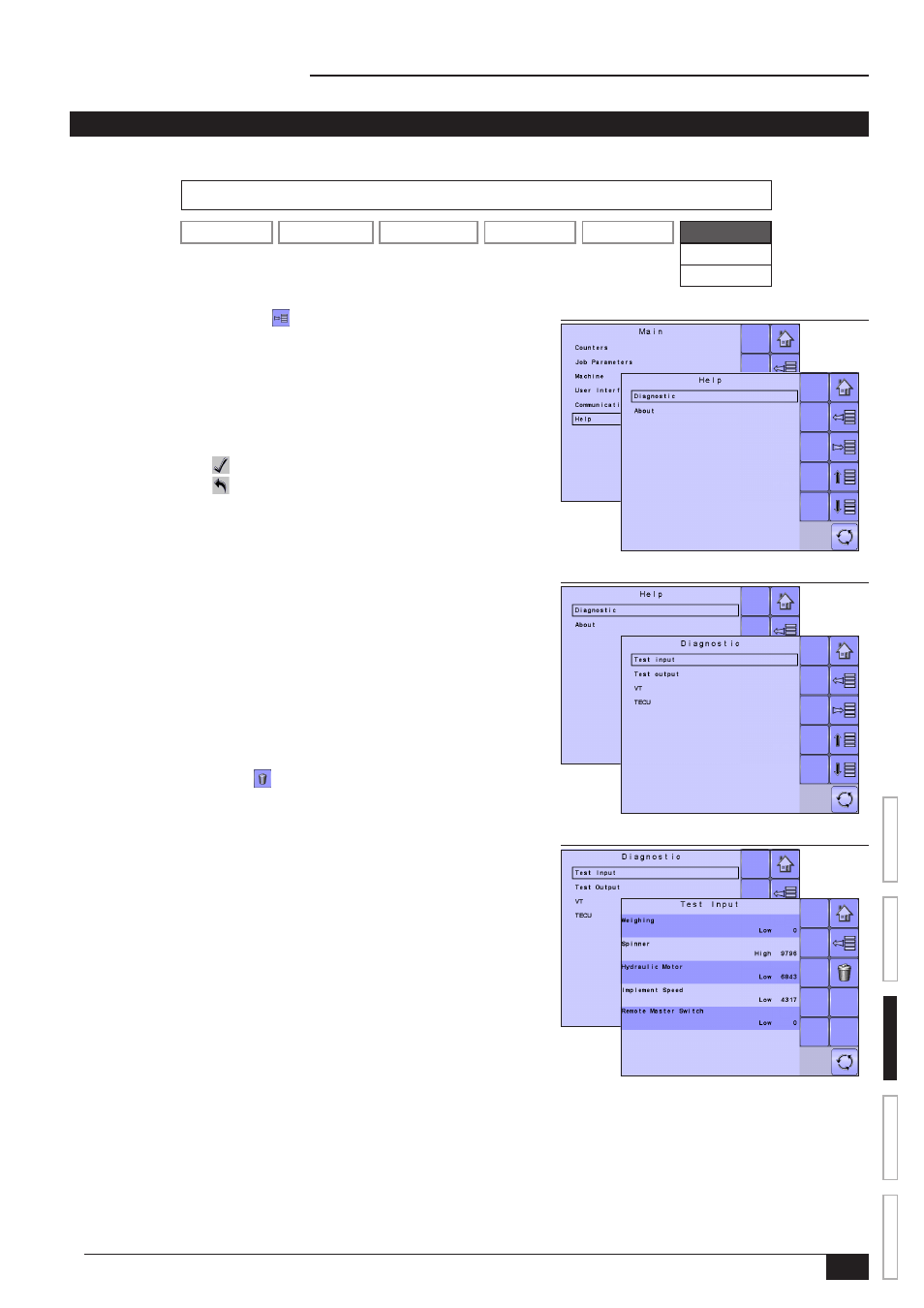

Figure 3-30: Help
Figure 3-31: Diagnostic
Figure 3-32: Test Input
1. From the Main Setup Screen , select HELP.
2. Select from:
►Diagnostic – used to troubleshoot input/output of the controller (sensor or
actuator).
►About – provides information on the console such as software version, build
number, etc.
NOTE: Settings are NOT automatically saved when selected. The
ACCEPT KEY must be selected to save the setting. Select the
ESCAPE KEY to escape without saving settings and return to
the previous menu.
Diagnostic
Diagnostic is used to troubleshoot input/output of the controller (sensor or actuator).
►Test Input – displays the input high and low values on the installed sensors.
►Test Output – allows the regulation valve to be tested at different percentages of
dutycycle..
►VT – provides information regarding the virtual terminal controller.
►TECU – provides information regarding the TECU.
Test Input
Test Input displays the input high and low values on the installed sensors.
• To reset the sensors to "0",
select TRASH CAN KEY .
