ISOBUS Job Computer : IC18 Spreader European

OEM

The OEM setup menu is password protected and the settings in this menu are directly related to the fitted OEM equipment. To obtain an

access code, contact your local dealer or TeeJet Technologies Customer Service.
To access the OEM screens:

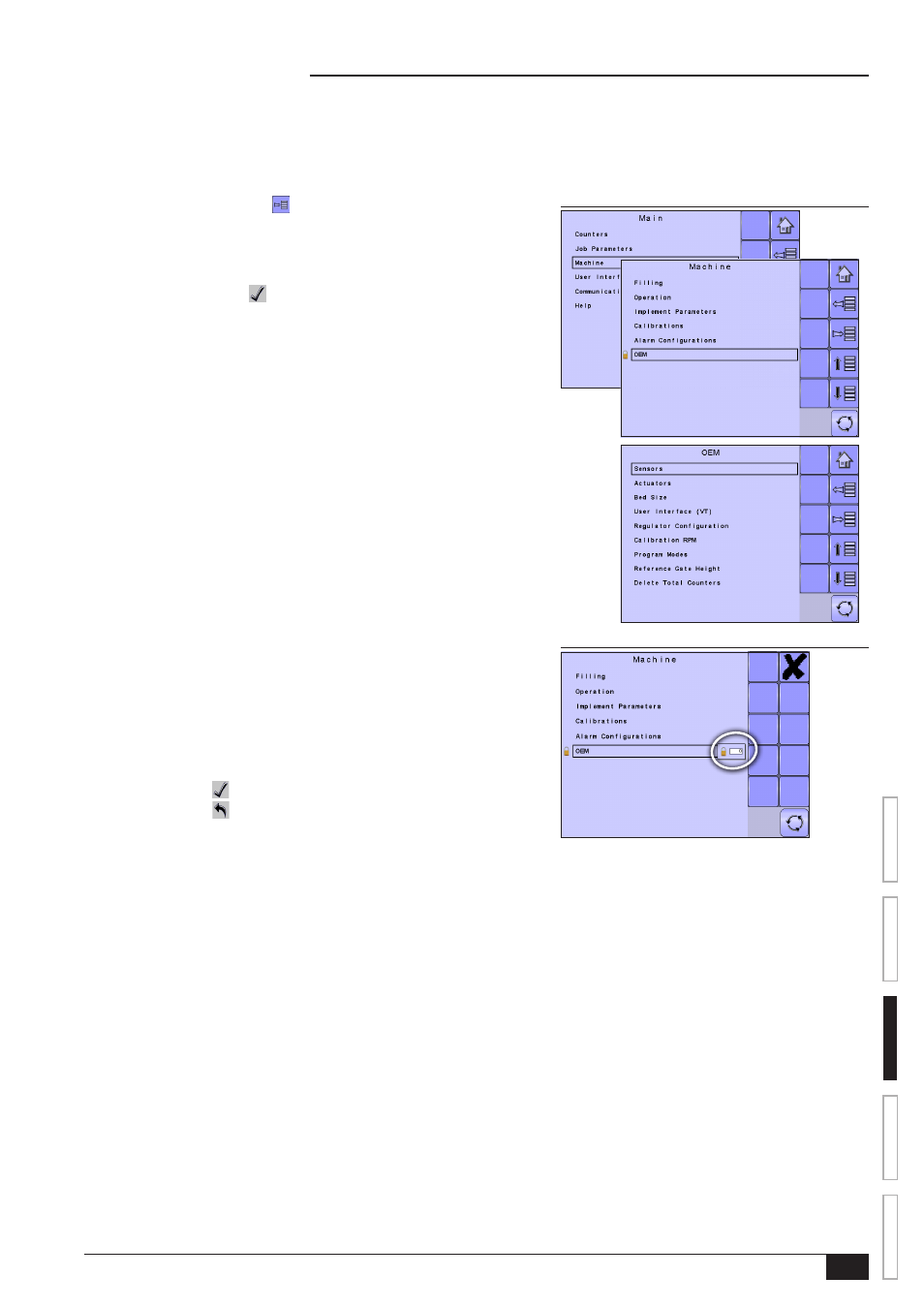

Figure 3-26: Machine to OEM

Figure 3-27: OEM Unlock

1. From the Main Setup Screen , select MACHINE.
2. Select OEM.
3. Select the Access Code Entry Box to the right of the menu option.
4. Use the number pad or slide bar to enter the access code.
5. Select the ACCEPT KEY to complete the unlock process
6. Select from:

►Sensors – used to establish the parameters for Spinner RPM, Spinner RPM

Revolution, Hydraulic Motor RPM Revolution, and Weighing systems

►Actuators – used to select the type of valve used to control the spreader belt
►Bed Size – used to establish the maximum load capacity of the spreader
►User Interface (VT) – used to establishes the displayed tolerance for

application rate

►Regulator Configuration – used to establish:

◄ Regulator Test – used to verify the regulation control matches theory

and actual settings.

◄ Valve Configuration – sets the control settings for the regulation valve.
◄ PID Parameters – sets the course and fine adjustments of the

regulation valve.

►Calibration RPM – used to program the desired roller RPM, the bed chain

speed, used during the calibration process

►Program Modes – used to designate various options that impact system

functions including program style, calibration type, flow factor, step

persentage and fast empty

►Reference Gate Height – used to establish the actual gate height used

during the calibration process

►Delete Total Counters – used to clear the Total Count system counter for

Area, Volume and Time

NOTE: Settings are NOT automatically saved when selected. The

ACCEPT KEY must be selected to save the setting. Select the

ESCAPE KEY to escape without saving settings and return to

the previous menu.
