ISOBUS Job Computer : IC18 Spreader European
CHAPTER 4 – OPERATION MODE
The Operation Screen accesses the working aspects of the IC18 including boom section control, rate control and trip/count/
application information.
NOTE: Settings are automatically saved when selected.
NOTE: The menu structure on your display might vary from the one displayed in this User Manual depending on the virtual
terminal being used.
EUROPEAN OR NORTH AMERICA CALCULATION MODE
The IC18 job computer is programed to calculate calibrations based on European or North American methods.
◄European – Gate Height is NOT calculated into the product application and calibrations will be based on volume per pulse.
◄North America – Gate Height is calculated into the product application and calibrations will be based on pulses per volume.
This setting has been established before leaving the factory, but it can be changed after purchase with assistance from TeeJet
Technologies Customer Service or your local dealer through the OEM setup menu options.
OPERATION MODE OVERVIEW
Information on the Operation screen will vary depending on the parameters set by the user and the OEM.

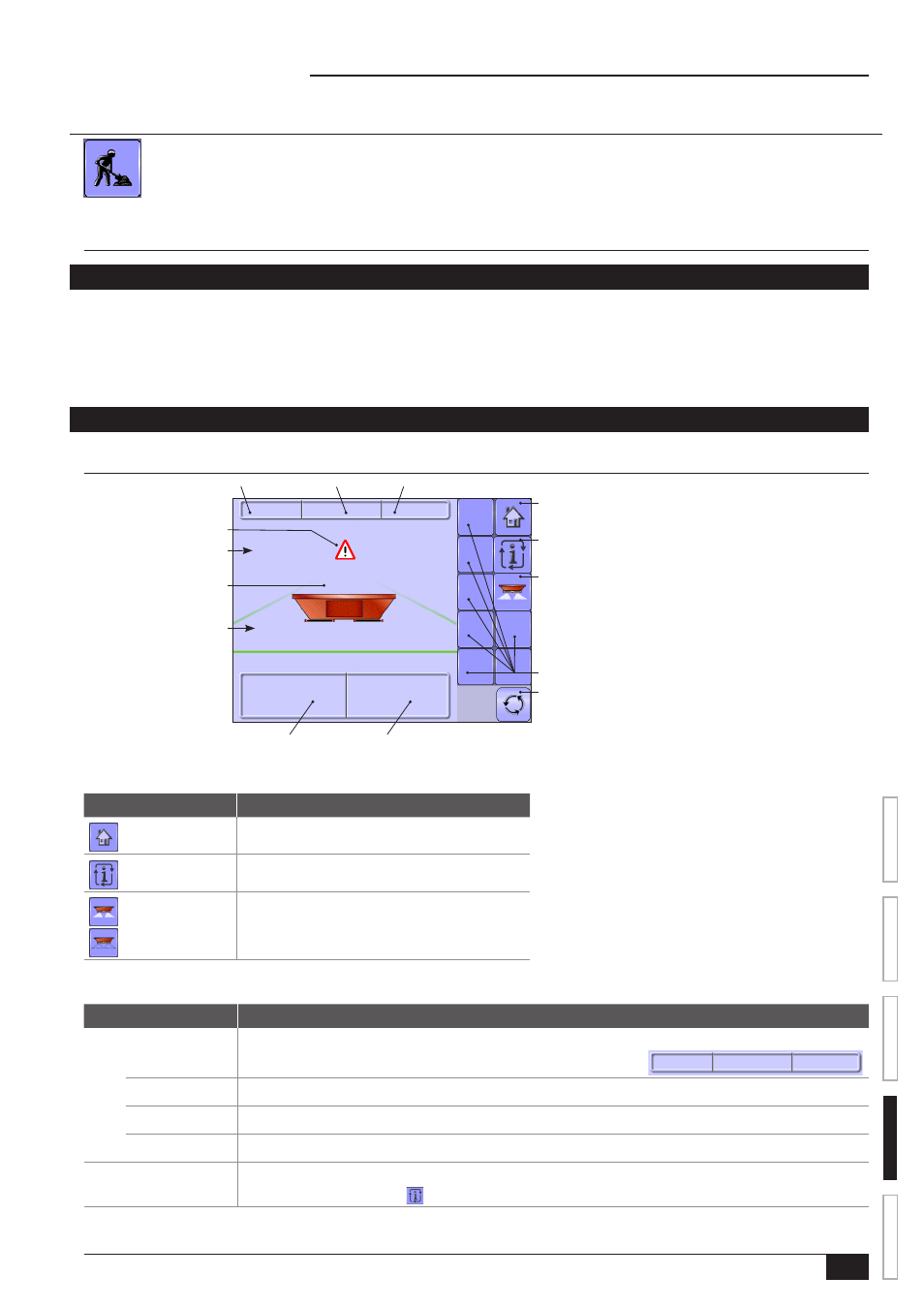

Figure 4-1: Operation Mode Screen Overview
C n t 1
0 . 0 5 0 0
2 9 8 . 2 t
0
1 . 1 4 h a
1 3 11
k g / h a k g / m
0 R P M R P M
R o l r S p n r
Count Number
Remaining Bed Content
Speed/Application Information
Alert Warning
Application On/Off Indication
Roller RPM
Applied Volume Applied Area
Spinner RPM
Extra Key Spaces
Home Key
Information Key
Master Screen Key
Start/Stop Key
Keys Descriptions
Icon Description
Home Key Press to return to the Home Screen
Information Key Press to toggle between display modes
Start/Stop Key Press to start or stop spreader
Section and Icon Descriptions
Section or Icon Description
Job Information This information bar displays the active count number,
applied volume and applied area
C n t 1 0 t 0 . 0 0 h a
Count Number Displays the current active trip or job number
Applied Amount Displays amount applied for the selected count number
Applied Area Displays applied area for the selected count number
Speed/Application
Information
Displays vehicle speed or amount applied per minute or RPM.
The Information Key toggles between display modes.
