Model 5128/29 Fire Slave Communicator Installation Manual
18 150805
S
ECTION
4
N
ORMAL
O
PERATION
This section describes normal system operations using the 5230 remote annunciator.
4.1 5230 Operation
The 5230 is equipped with an LCD (liquid crystal display) that displays English-language messages. If the
5128/29 is not being programmed, the LCD cycles through all messages that are applicable at the time,
showing a different one every 1.5 seconds. The messages are listed in the troubleshooting section of this
manual (Section 7.2).

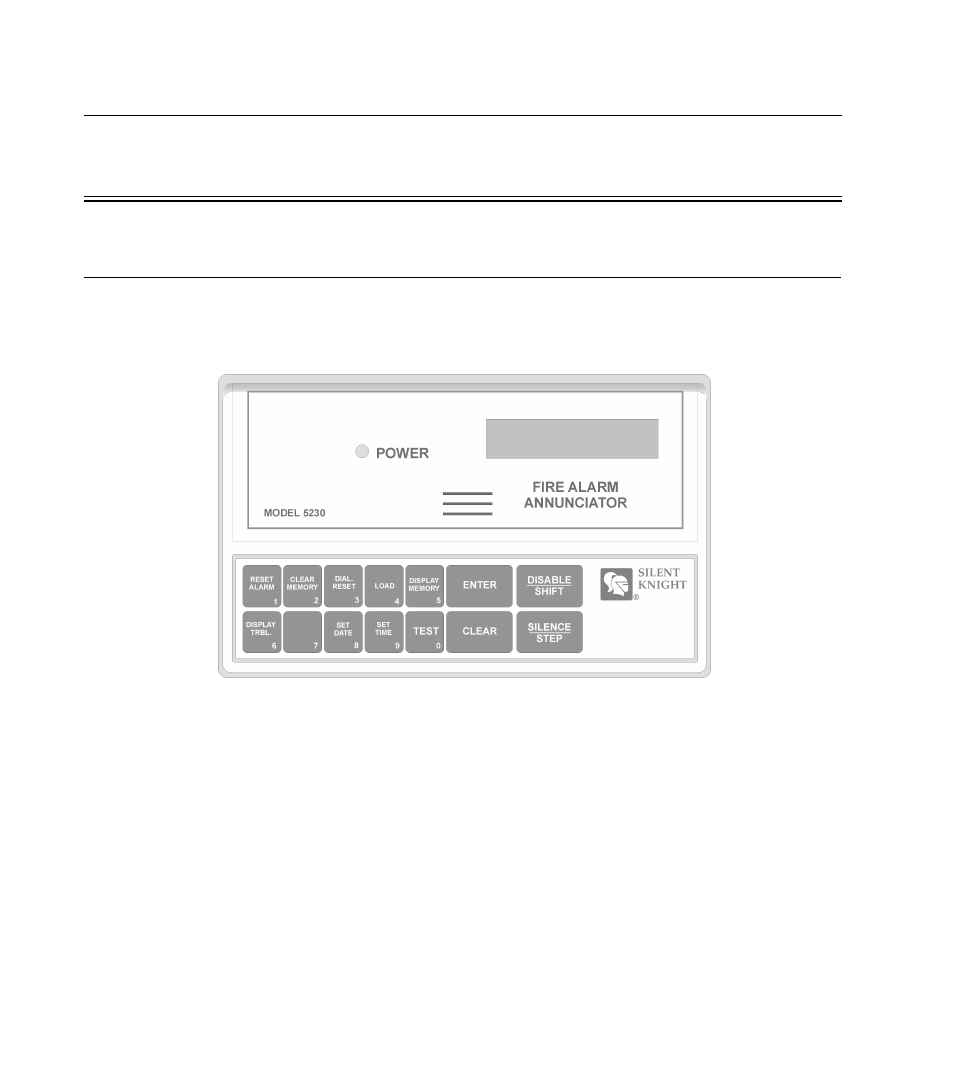

Figure 4-1 Model 5230 Remote Annunciator (Front)
4.1.1 Power LED Indicator
When DC power is being supplied, the POWER LED glows steadily. If DC power is not being supplied, the
POWER LED is off.
4.1.2 Buzzer
An audio transducer buzzer is built into the 5230 annunciator. It produces short beeps to annunciate keystrokes.
It also emits a long, high-pitched tone to indicate a trouble condition or when an annunciator function has been
entered incorrectly.
For programming and troublshooting only.
Do not leave on the system.
