PRG Mbox Remote Manual 3.9 - Manual (Page 78)

72 MBOX ® REMOTE USER MANUAL
Re-Sequence Feature
The re-sequence feature can be used to re-address fixtures one by one as they are clicked in the Context Grid
To re-address using re-sequence feature:
Step 1. At right side of window, select Fixtures tab.
Step 2. Click (Re)sequence button to enter re-addressing mode. (The button’s text will change from white to green
to indicate mode is active.)
Step 3. Enter a start Universe and Address in the fields to the right of the button.
Step 4. At Context Grid, click on fixtures one-by-one to apply new addressing. The universe and address will
increment as required as each fixture is clicked.
Step 5. Click (Re)sequence button to exit re-addressing mode.

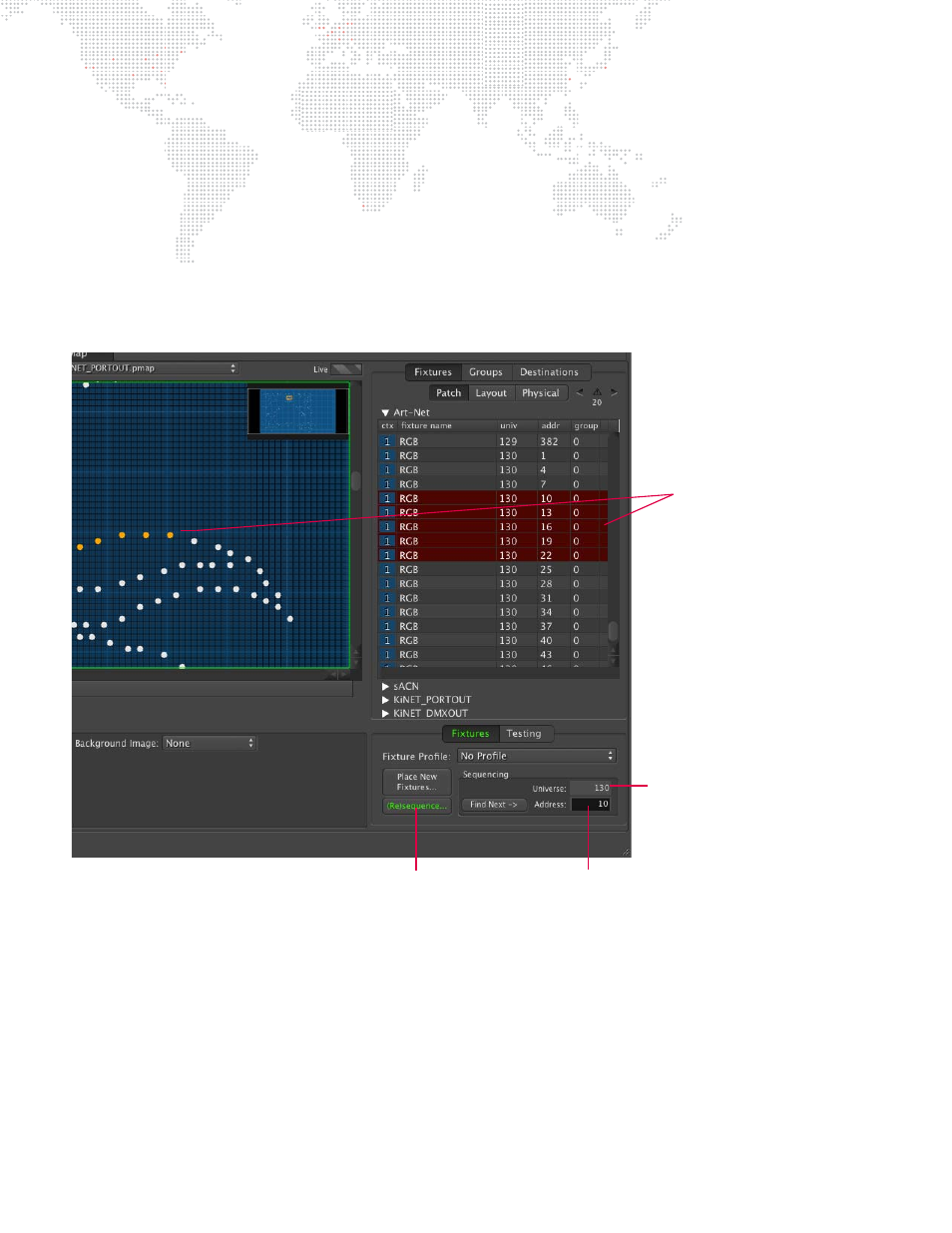

Fixtures clicked upon (which
have received a new address)
Universe applied to next
fixture clicked upon
Re(sequence) Button -
Green when mode is active Address applied to next
fixture clicked upon
