Context Grid Controls
Several special tools are available in the Context Grid area:
+ Zoom slider - adjusts the zoom level of the current view.
+ Zoom To Context button - zooms to extents of current view.
+ Zoom To Selection button - zooms and scrolls so that currently selected fixture(s) are visible.
+ Snap checkbox - snaps fixture placement to the sample rectangles (when checked).
+ Reveal Obscured checkbox - increases the transparency of layered contexts to allow those below to show
through (when checked).
+ Mini Map - provides quick navigation of the Context Grid area. The orange rectangle can be dragged around to
quickly move the view, and while hovering over the Mini Map, the scroll wheel/buttons on the mouse can be used
to zoom in/out.

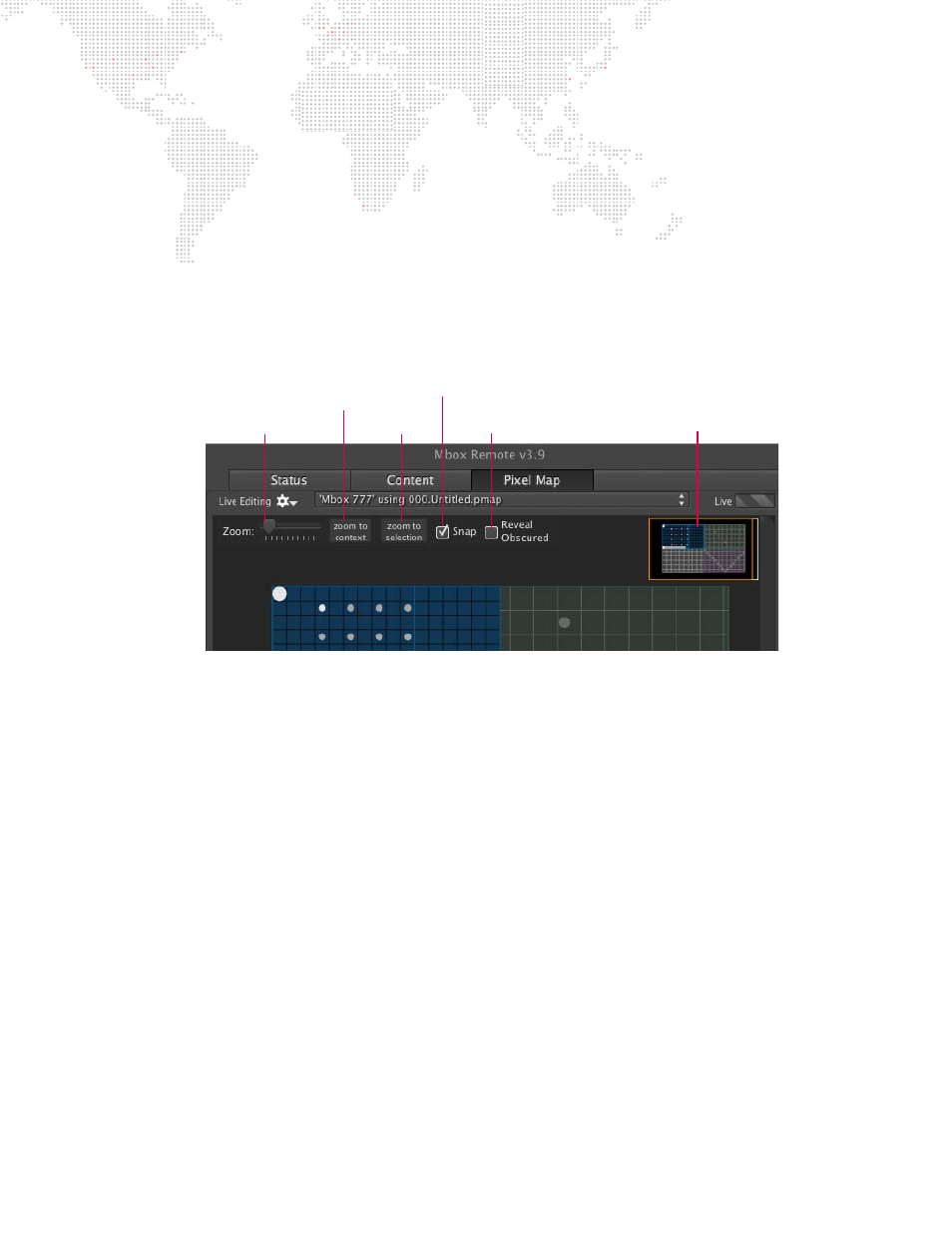

Zoom Slider
Mini Map
Zoom To Context
Reveal Obscured Checkbox
Snap Checkbox
Zoom To
Selection
