MBOX ® REMOTE USER MANUAL 97
Testing
The Testing feature provides a way to easily locate and test fixtures in order to verify the correct pixel mapping
configuration. During testing, selected fixtures can be highlighted statically or flashed between highlight and lowlight
states. (This testing functionality mimics highlight/lowlight functionality in lighting consoles.)
The Testing feature can be used while Mbox Remote is in a Live Editing session or a Test Only session. While in the
Test Only session, the pixel mapping fixtures can be tested but the configuration is locked out from changes.

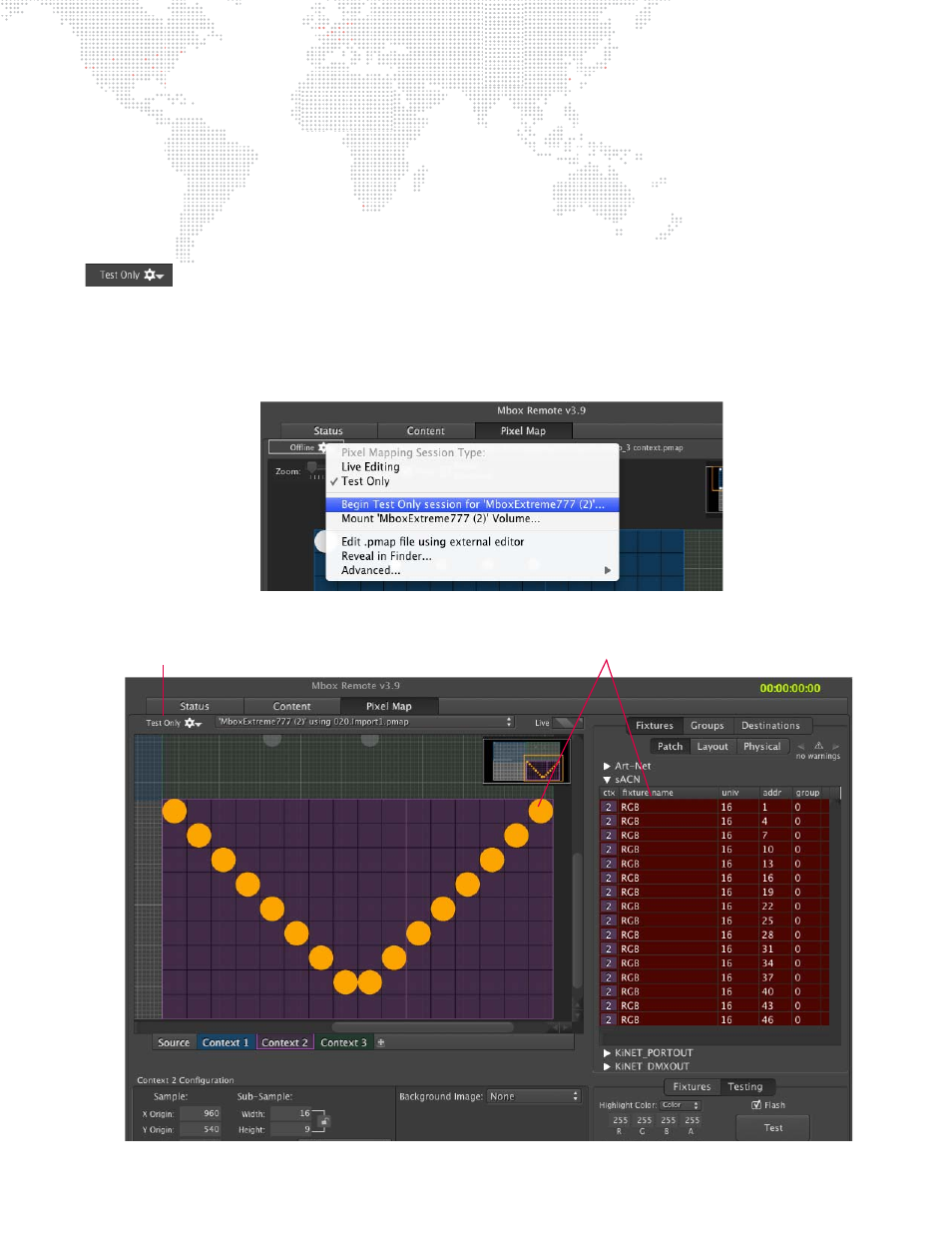

To test fixtures:
Step 1. At Servers list, select required server.
Step 2. Click gear icon and select Begin Test Only session for... The pixel mapping configuration will now be
locked from changes.
Step 3. Choose a context and select one or more patched fixtures.
Test Only Session Indicator
Selected Fixtures
