Novak Electronics, Inc.
|
Device Setup
8
8
www.teamnovak.com

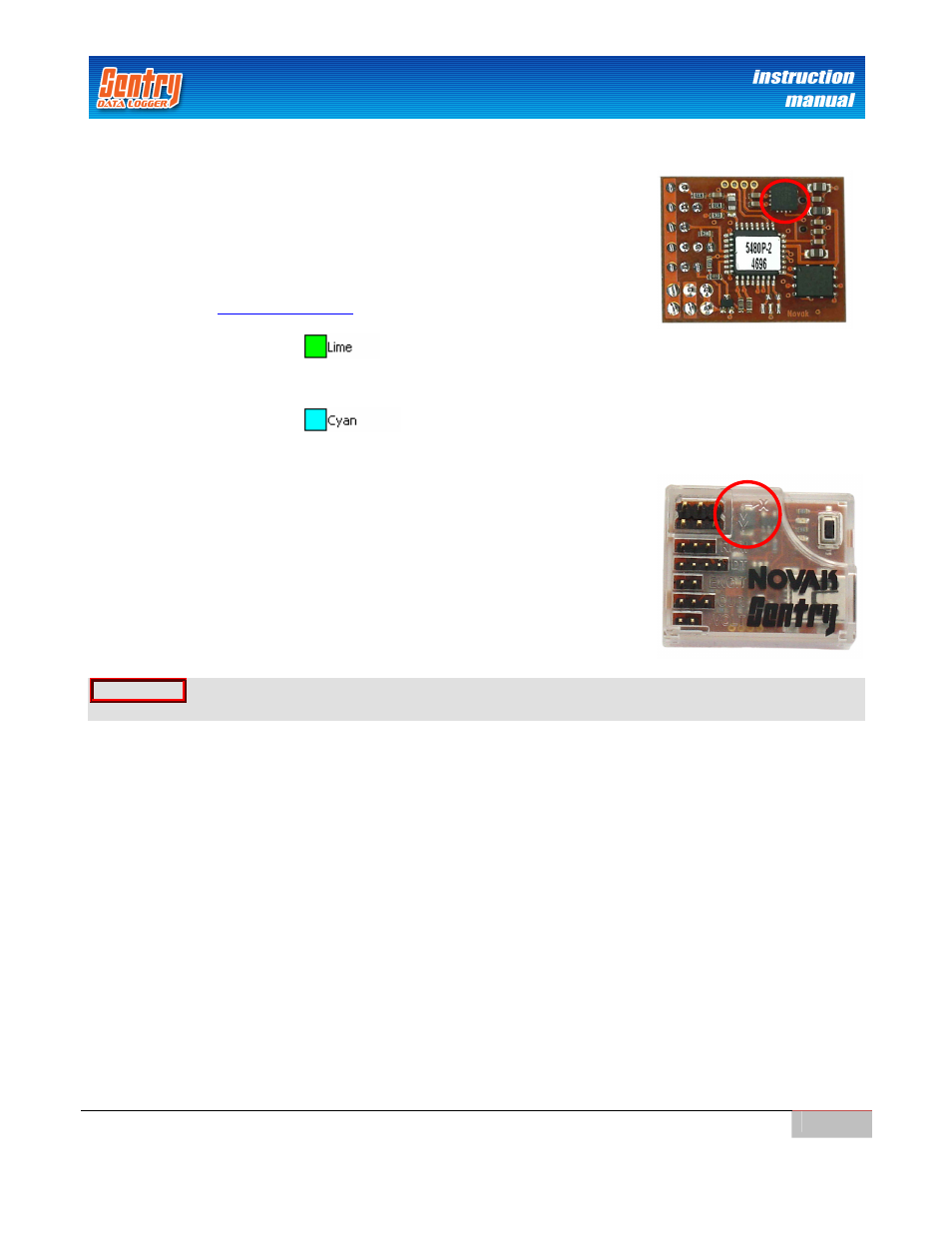

ACCELERATION (G-FORCE) SENSOR
Sensor Description: A unique feature of the Novak Sentry Data Logger is the
built-in 2-Axis Accelerometer that accurately measures G-force. The placement
in the vehicle is critical for proper measurement of acceleration.
Measurement Range: -5 to 5 G
Resolution: 0.005 G
Default Settings (
configurable setting
):
X Axis
Graph Color:
Max Value (Gauge display only): NA
Name String: X Axis
Y Axis
Graph Color:
Max Value (Gauge display only): NA
Name String: Y Axis
Installation Instructions
(refer to image shown right):
Mount the Sentry Data Logger with the included mounting tape. The
Mounting Bracket can also be used. This bracket securely holds the
sensor connectors.
Be sure to mount the unit so that the X and Y directions (noted on the
case top) are accurate because this is how the G-force values are
displayed in the software.
WARNING!
If the unit is mounted on an angle from the vehicle’s centerline, the acceleration reading will not
be accurate.
