Novak Electronics, Inc.
|
Device Setup
1
1
2
2
www.teamnovak.com

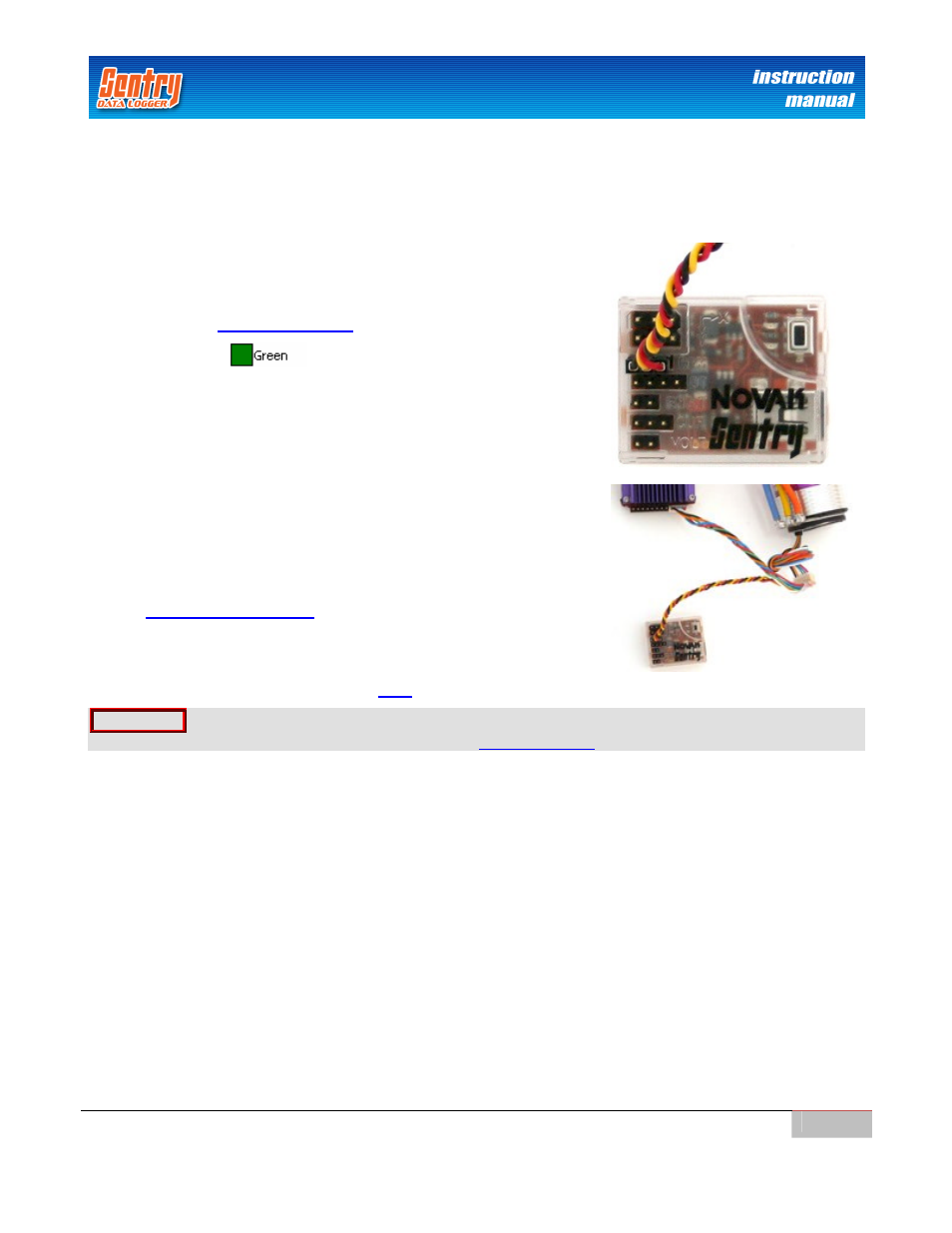

RPM SENSOR – SENSORED BRUSHLESS
Sensor Description: The Brushless RPM Sensor accurately measures the RPM of a sensored brushless
motor, which can help in gear ratio optimization.
Measurement Range: 500-99,999 RPM
Plugs Into: The 3-pin connector plugs into the RPM Slot (RPM) in the
Novak Sentry Data Logger unit with the black wire toward the outside/left
edge of the case.
Default Settings (
configurable setting
):
Graph Color:
Max Value (Gauge display only): 90,000 RPM
Name String: RPM
Installation Instructions
(refer to image shown right):
Place the Brushless RPM Sensor harness in line with the
brushless motor’s sensor harness to read motor RPM directly
from the brushless motor’s sensor harness.
Be sure the RPM Ratio setting is set to 1 (default) in the
dialog box.
Replacement Part Number:
WARNING!
Do not plug in this sensor backwards! Plugging in the RPM sensor backwards will cause
damage to your Novak Sentry Data Logger and void the
.
