Summary, Le at the bottom of the – Novak Sentry Data Logger User Manual
Page 28
Novak Electronics, Inc.
|
Summary Page
2
2
8
8
www.teamnovak.com
S
S
U
U
M
M
M
M
A
A
R
R
Y
Y
P
P
A
A
G
G
E
E
The Summary page displays the maximum, minimum and average values for each of the observed parameters.
To view this page, click on the Summary tab at the top of the screen.

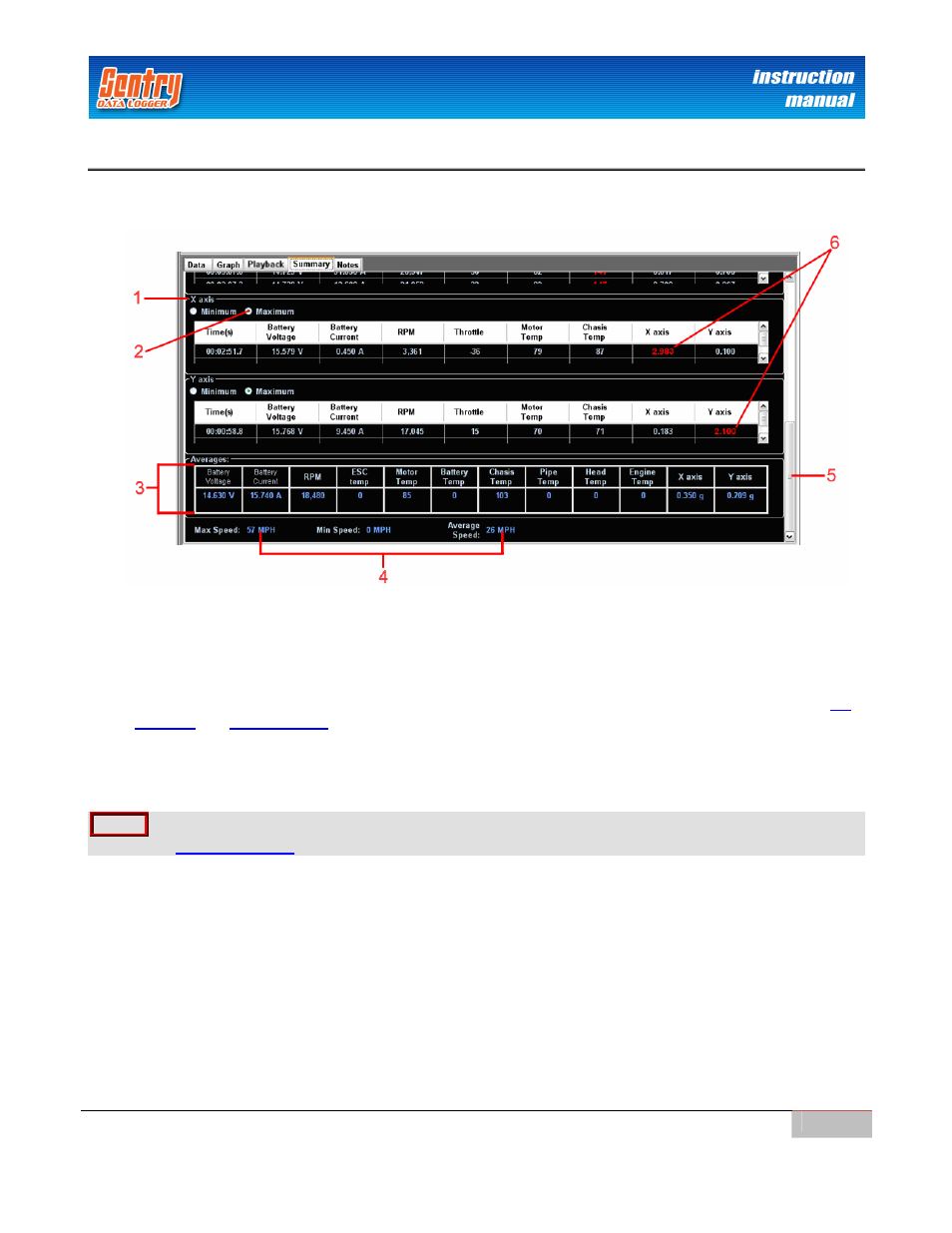

1. Sensor Name – Labeled at the top of the maximum / minimum group.
2. Maximum / Minimum Radio Button – Click on the Maximum radio button to view the maximum value
for the sensor. Click on the Minimum radio button to view the minimum value for the sensor.
3. Average Value Table - List of average value for all sensors.
4. Speed Values – The Min Speed, Max Speed and Average Speed values will only be displayed if the
tire
diameter
and
final gear ratio
are entered.
5. Scroll Bar – Used to view all the data on this page.
6. Minimum / Maximum Values – Indicated in red.
NOTE
To hide and show each sensor data, use the Customization tool bar at the bottom of the screen.
section for more detail.
