Playback Page
|
Novak Electronics, Inc.
www.teamnovak.com
P
P
L
L
A
A
Y
Y
B
B
A
A
C
C
K
K
P
P
A
A
G
G
E
E

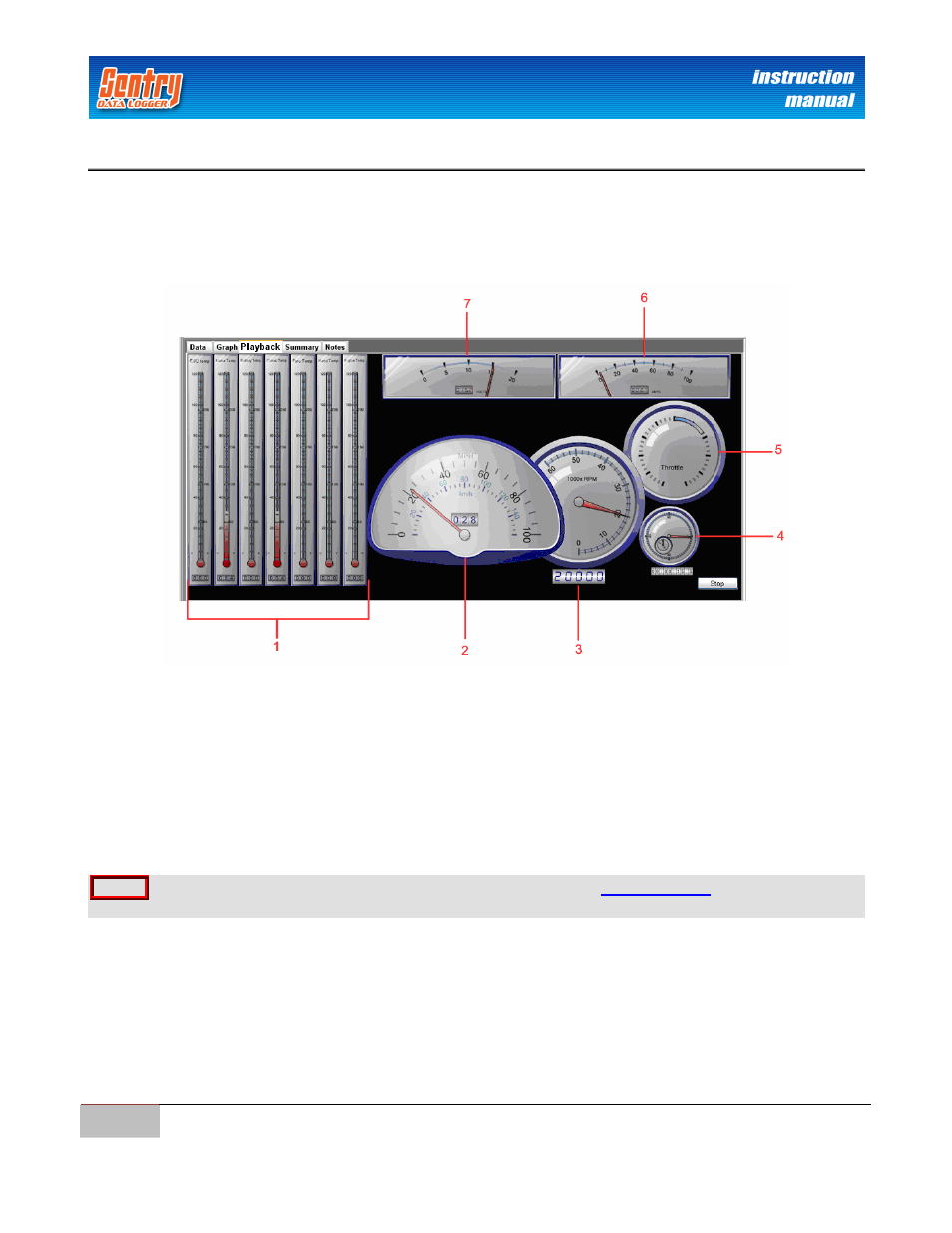

The stored information is played back on the gauges shown below.
Click on the Playback tab at the top of the display to view this page.
Click on the Start button to play the data. The playback can be stopped at any time during play by clicking the
Stop button. To reset the display, make sure playback is stopped and click the Reset button.
1. Analog and Digital Temperature Gauges
2. Analog and Digital Speedometer
3. Analog and Digital RPM Gauge
4. Analog and Digital Timer
5. Throttle / Steering Gauge
6. Analog and Digital Current Gauge
7. Analog and Digital Voltage Gauge
NOTE
If any of the sensor gauge pointers are stuck at maximum, go to
to change the
maximum value setting for the sensor.
