Page 14: Ensor
Novak Electronics, Inc.
|
Device Setup
1
1
4
4
www.teamnovak.com
INPUT HARNESS SENSOR
Sensor Description: The Input Sensor Harness monitors the throttle or steering position.
Measurement Range: -100% to 100%, 0 = neutral
Plugs Into: The 3-pin connector plugs into the first or second slot in the
Novak Sentry Data Logger unit with the black wire toward the outside/left
edge of the case.
Default Settings (
configurable setting
):
Graph Color:
Max Value (Gauge display only): NA
Name String: Throttle
Installation Instructions

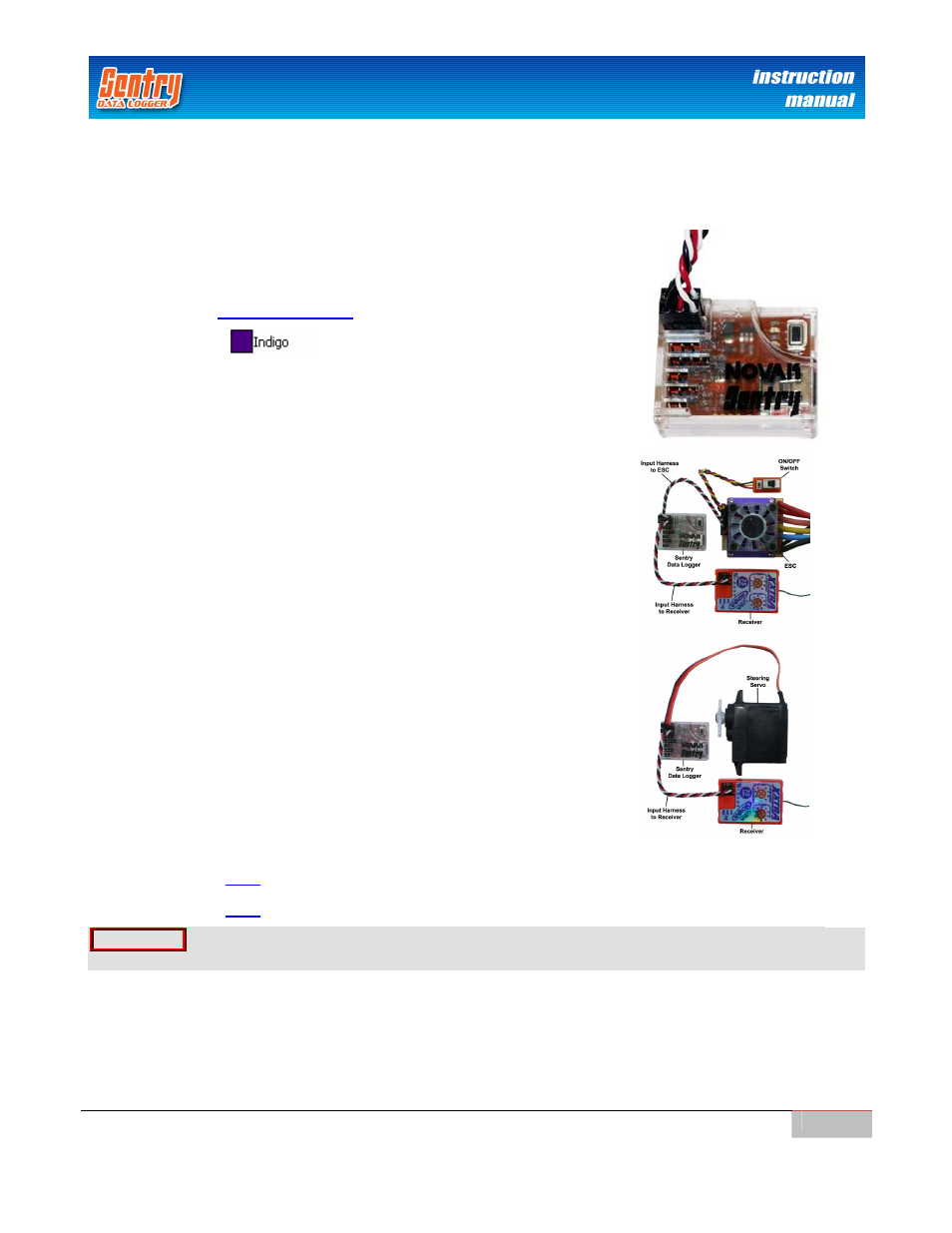

(refer to images shown right):
To measure throttle position:
Make sure one of the input harnesses is connected to the throttle
channel of the receiver. The other harness should be connected to
the speed control.
To measure steering position:
Make sure one of the input harnesses is connected to the
steering/servo channel of the receiver. The other harness should be
connected to the steering servo.
Replacement Part Number:
Nov
(4 inch input harness)
Nov
(9 inch input harness)
WARNING!
One of these sensors must be plugged into the receiver. The Novak Sentry Data Logger
receives its power via the vehicle’s BEC or receiver pack.
