Novak Sentry Data Logger User Manual
Page 27
27
Data Analysis
|
Novak Electronics, Inc.
www.teamnovak.com

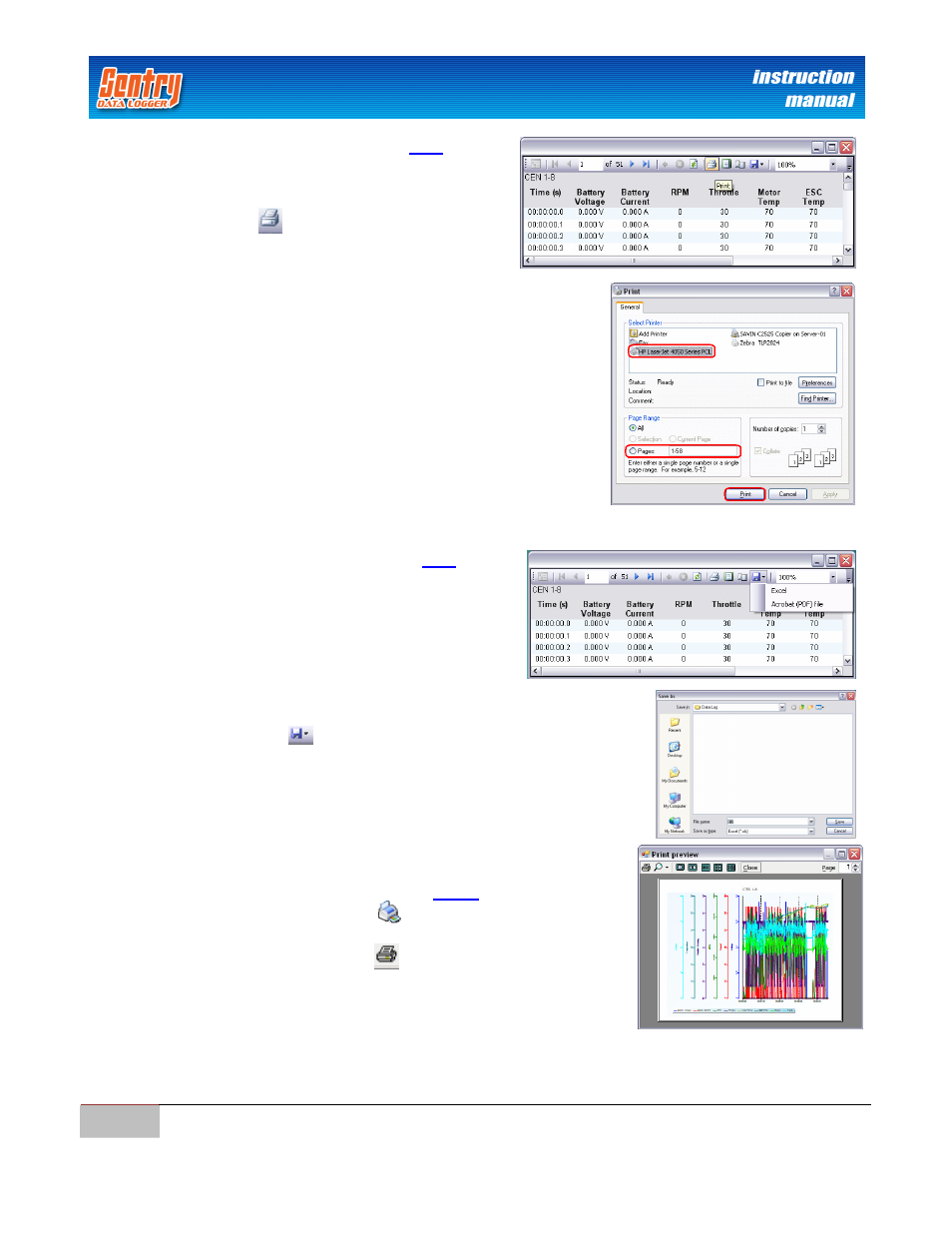

To print the data table, make sure the
page is
displayed on the screen.
Select print (see above for reference) and wait for
the Print Preview window to finish loading.
Select the Print
icon on the toolbar of the
preview window.
When the Print dialog box appears, make sure the correct printer
is selected.
If only a select number of pages should be printed, click on the
Pages radio button in the Page Range section. Type the page
range in the text box next to the Pages radio button.
Click the Print button to print.
Export Data Table
To export the data table, make sure the
page is
displayed on the screen.
Select print (see above for reference) and wait for the Print preview
window to finish loading.
Click on the Export
button.
Select Excel or Adobe (PDF) file.
Wait for the Save As dialog box to appear on the screen. Type the
name of the exported file and click the Save button.
Print Graph
To print the graph display, make sure the
Graph
page is displayed
on the screen. Click on the Print
icon on the Novak Sentry Data
Acquisition application toolbar. Wait for the Print preview window to
finish loading. Click on the Print
icon on the toolbar of the
preview window.
