Real-time data observation – Novak Sentry Data Logger User Manual
Page 20
Novak Electronics, Inc.
|
Real-Time Data Observation
2
2
0
0
www.teamnovak.com
R
R
E
E
A
A
L
L
-
-
T
T
I
I
M
M
E
E
D
D
A
A
T
T
A
A
O
O
B
B
S
S
E
E
R
R
V
V
A
A
T
T
I
I
O
O
N
N
The Real-Time Data feature provides a live visual of all the sensors connected to the Novak Sentry Data Logger
device. This feature will assist in confirming the functionality and operation of all the sensors on the vehicle.
The Novak Sentry Data Logger must be connected via USB to the computer. Refer to the
section for more details.
You can do one of the following to download the data from the device:
Click on the
icon next to Real-Time Data when the connection
menu display appears.
On the menu bar, select Tools>Real-Time Data.
On the right lower corner of the application display, click on the
arrow next to the
icon. Select Real-Time Data.
On the tool bar, click on the Real-Time
icon.

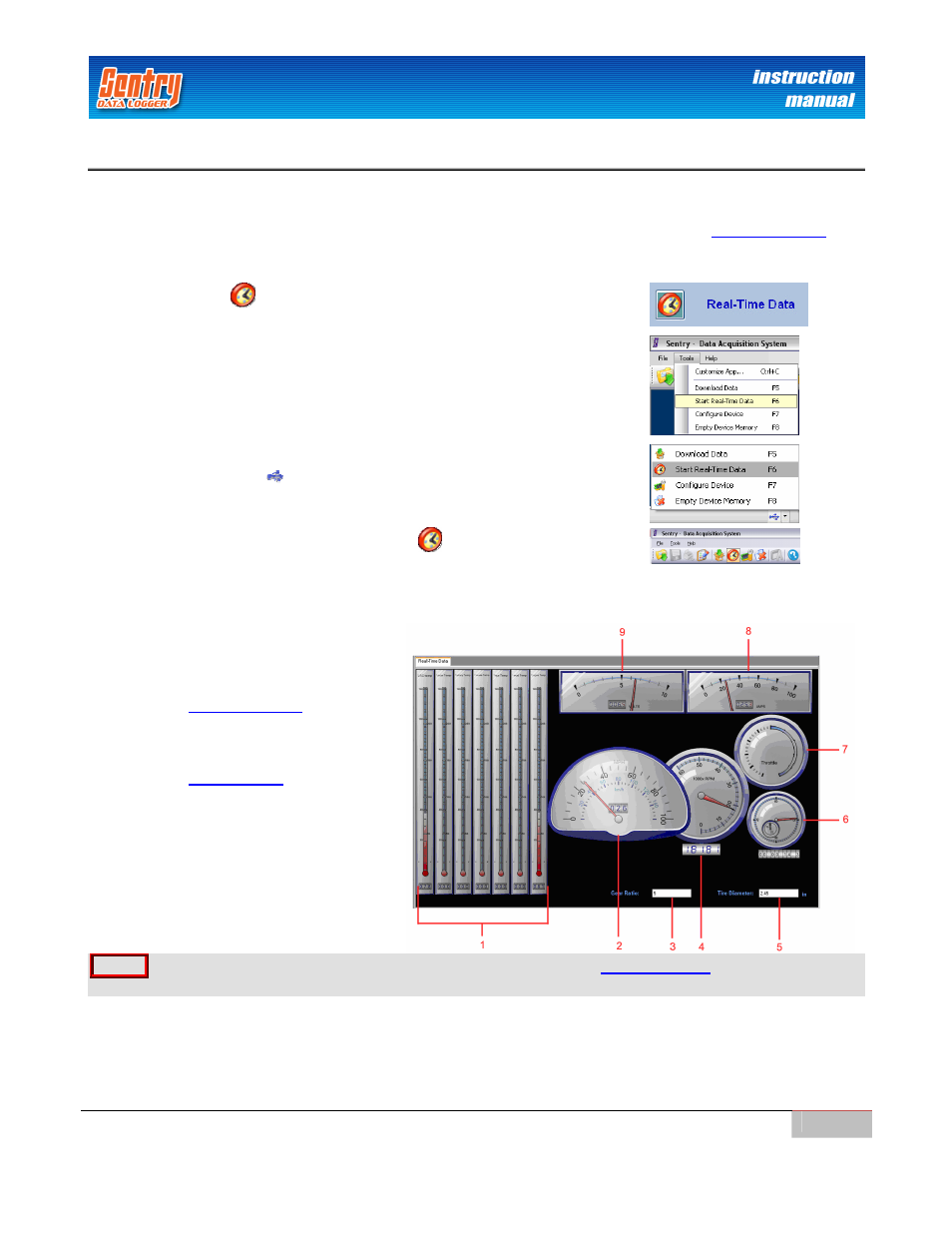

The Real-Time Data screen will display:
NOTE
If any of the sensor gauge pointers are stuck at maximum, go to
to change the
maximum value setting for the sensor.
1. Analog and digital temperature
gauges
2. Analog and digital Speedometer
3. Enter a
in the
textbox to display the correct speed
4. Analog and digital RPM gauge
5. Enter a
to display the correct speed
6. Analog and digital timer
7. Throttle / Steering gauge
8. Analog and digital current gauge
9. Analog and digital voltage gauge
