Neuspeed 49.10.95 User Manual
Page 7

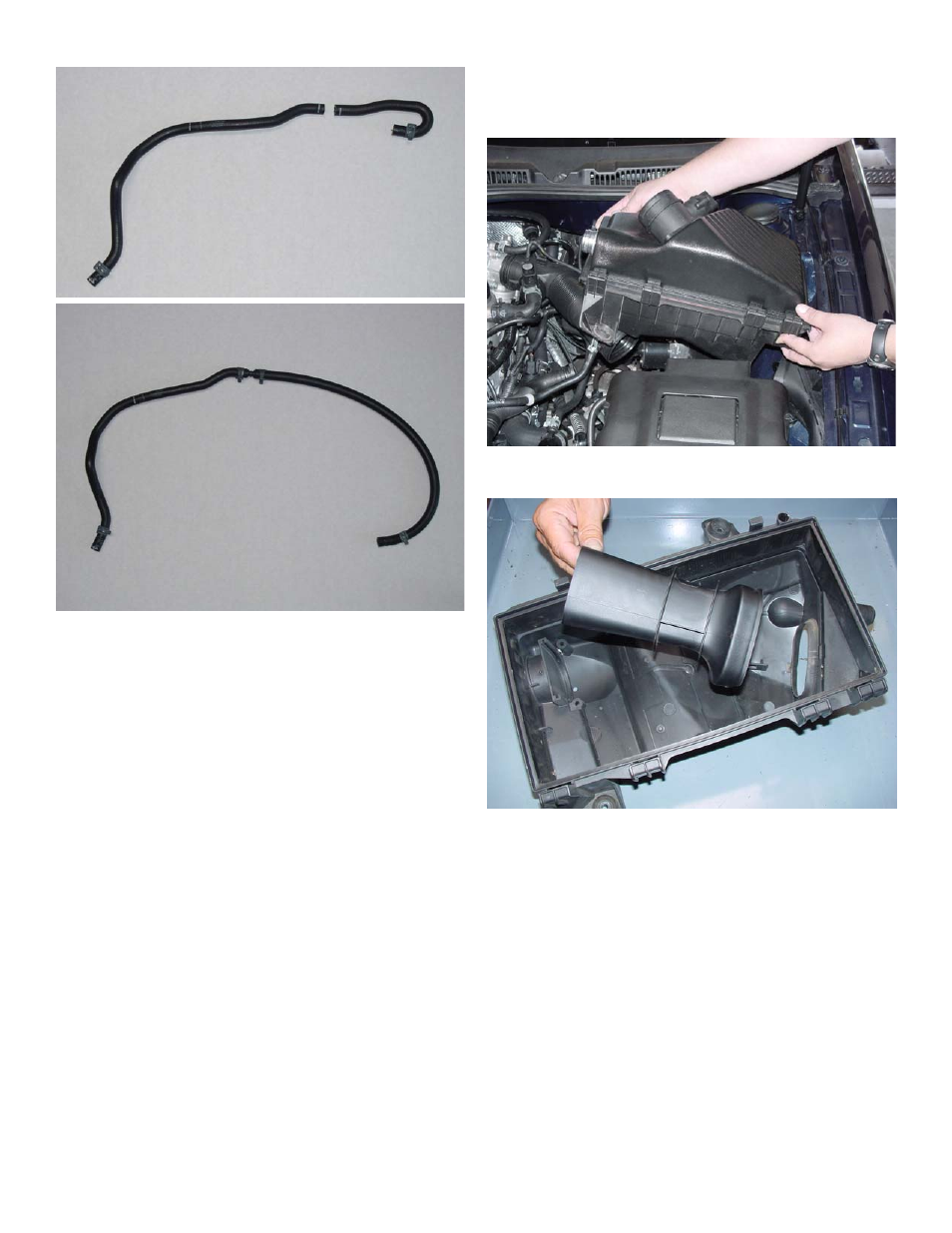

21. In order to obtain peak performance from the Supercharger
Kit, the O.E. intake baffle MUST be removed from the Golf IV
and Jetta IV. Modify the air duct as follows:
21A. Remove air box assembly from vehicle, (2) M6 (10mm
hex) bolts. Pull air box up and out as shown.
20. Remove coolant hose connecting throttle body to expansion
tank. Cut hose 6” from end as shown, insert supplied hose barb
fitting, and connect supplied
5
/
16
” x 20” hose. Position clamps as
shown. Connect new coolant hose to throttle body and opposite
end to expansion tank. Install supplied hose clips (2) on firewall
studs and secure hose with clips.
21B. Release screws, open air box and remove air filter element.
Remove baffle by releasing clip securing baffle to bottom of air
box.
Page 7
