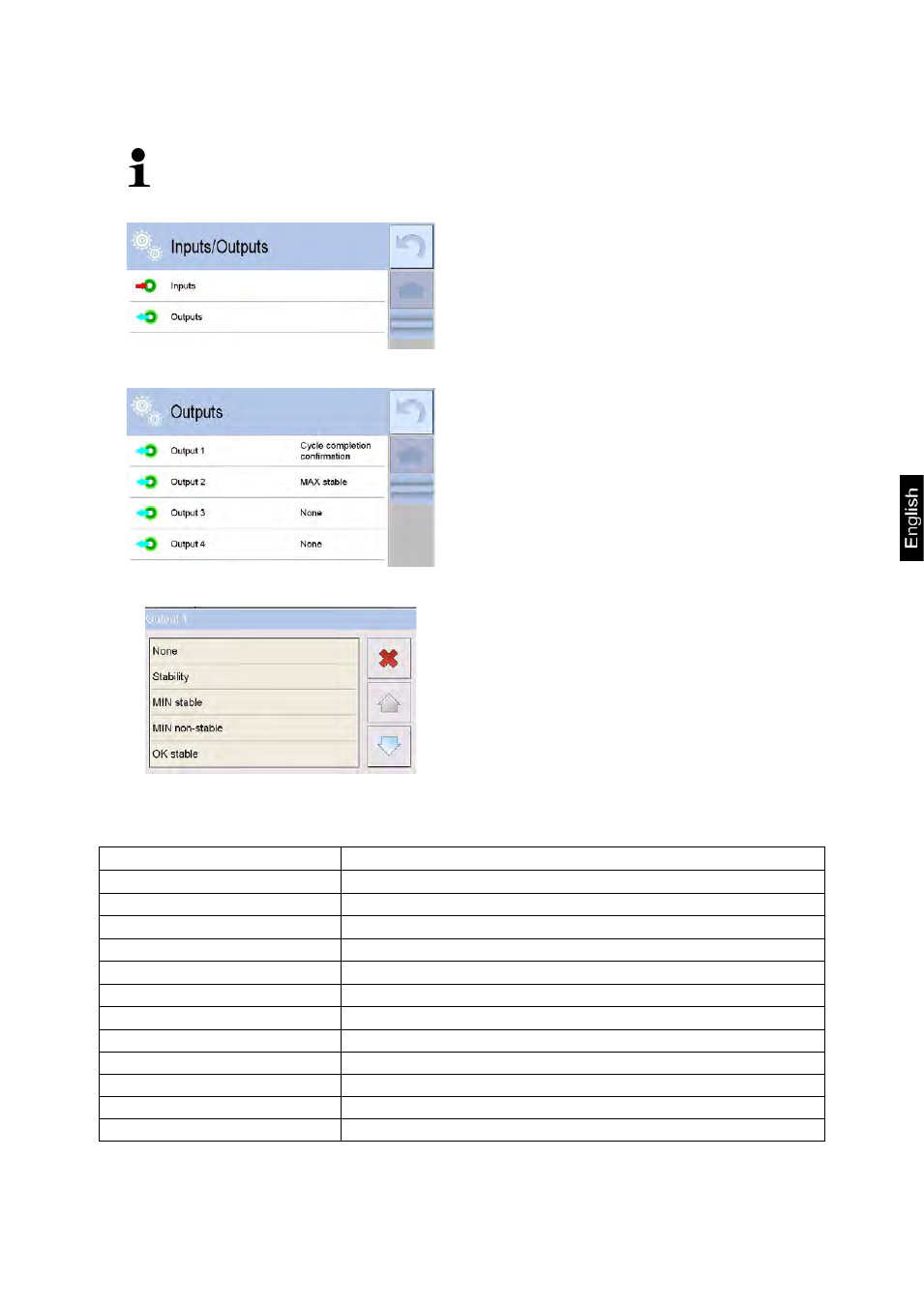

7.5.2 Outputs
For pin allocation OUT1 – OUT4, see chap. 1.2
Tap
< Outputs >.
Select output to configure
(OUT1 – OUT4).
The default setting for all parameters is
.
Select event that is to trigger enabling of
output, see table below. 6.
Tab. 6:
No Output disabled
Stable Stable weighing value above LO weight
MIN stable Stable weighing value below threshold MIN
MIN unstable Unstable weighing value below threshold MIN
OK stable Stable weighing value between thresholds MIN and MAX
OK unstable Unstable weighing value between thresholds MIN and MAX
MAX stable Stable weighing value above threshold MAX
MAX unstable Unstable weighing value above threshold MAX
Zero Stable weighing value zero net
Cycle end confirmation Confirmation signal for cycle completion of dispensing
Zero Zero weighing result (character “zero“)
! OK unstable Unstable weighing value outside OK threshold
! OK stable Stable weighing value outside OK threshold
