Corinex ADSL2+ Wireless Gateway G
Off
Ethernet cable is disconnected.
Blinking Receiving/transmitting
data.
3 WIRELESS green
Blinking Receiving/transmitting data via wireless
interface.
4 USB
green
On
Connection established between the gateway
and the computer’s USB slot.
Off
USB cable not connected.
5 DSL
green
On
ADSL connection is established.
Off
No telephone jack is connected.
Blinking The gateway is attempting to establish a
connection with your ADSL Service Provider.
6 INTERNET green
On
PPP connection is established.
Off
No PPP connection is established.

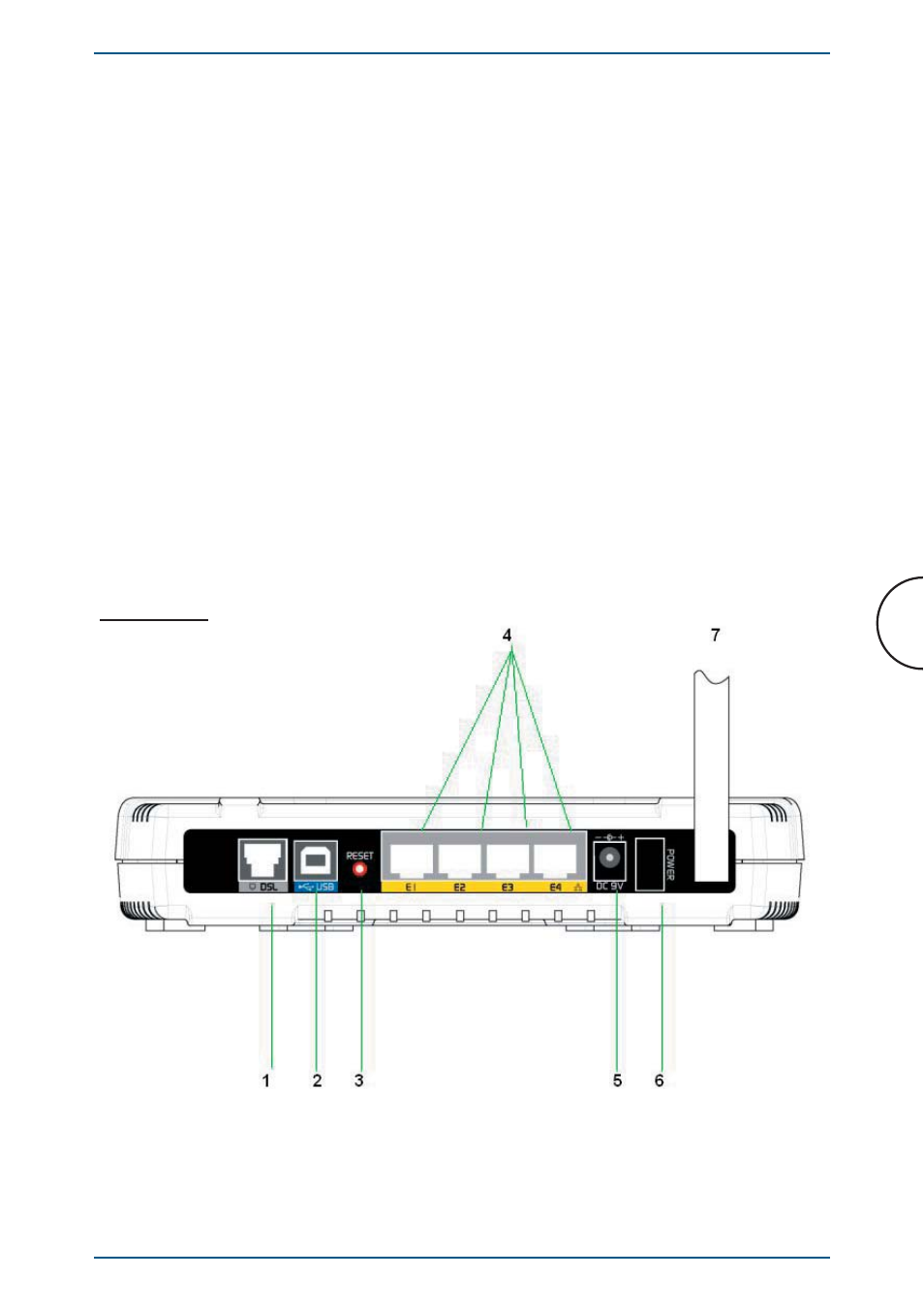

Back Panel
1 DSL (RJ-11) to connect to your DSL line.
2 USB to connect to your PC’s USB slot.
3 RESET to reset your ADSL2+ Gateway to factory default settings.
4 ETHERNET E1-E4 (10/100 Base-T Auto-MDI/MDIX RJ-45 jack) to connect to your
PC’s Ethernet Network card or Ethernet Hub / Switch.
