17
WARNING:
IF USING “INTELLIGENT” IGNITERS SUCH AS THE HALTECH
EB023 IGNITION MODULE CONSTANT DUTY CYCLE SHOULD BE
SELECTED IN THE IGNITION SET-UP PAGE. IF USING A “DUMB”
IGNITER (MOST STANDARD IGNITERS ARE DUMB) THE
CONSTANT CHARGE CYCLE SHOULD BE SELECTED
DO NOT CONNECT THE IGNITION SUB-LOOM TO
THE MAIN WIRING LOOM UNTIL YOU HAVE CONNECTED THE
E6H/E6M TO A COMPUTER

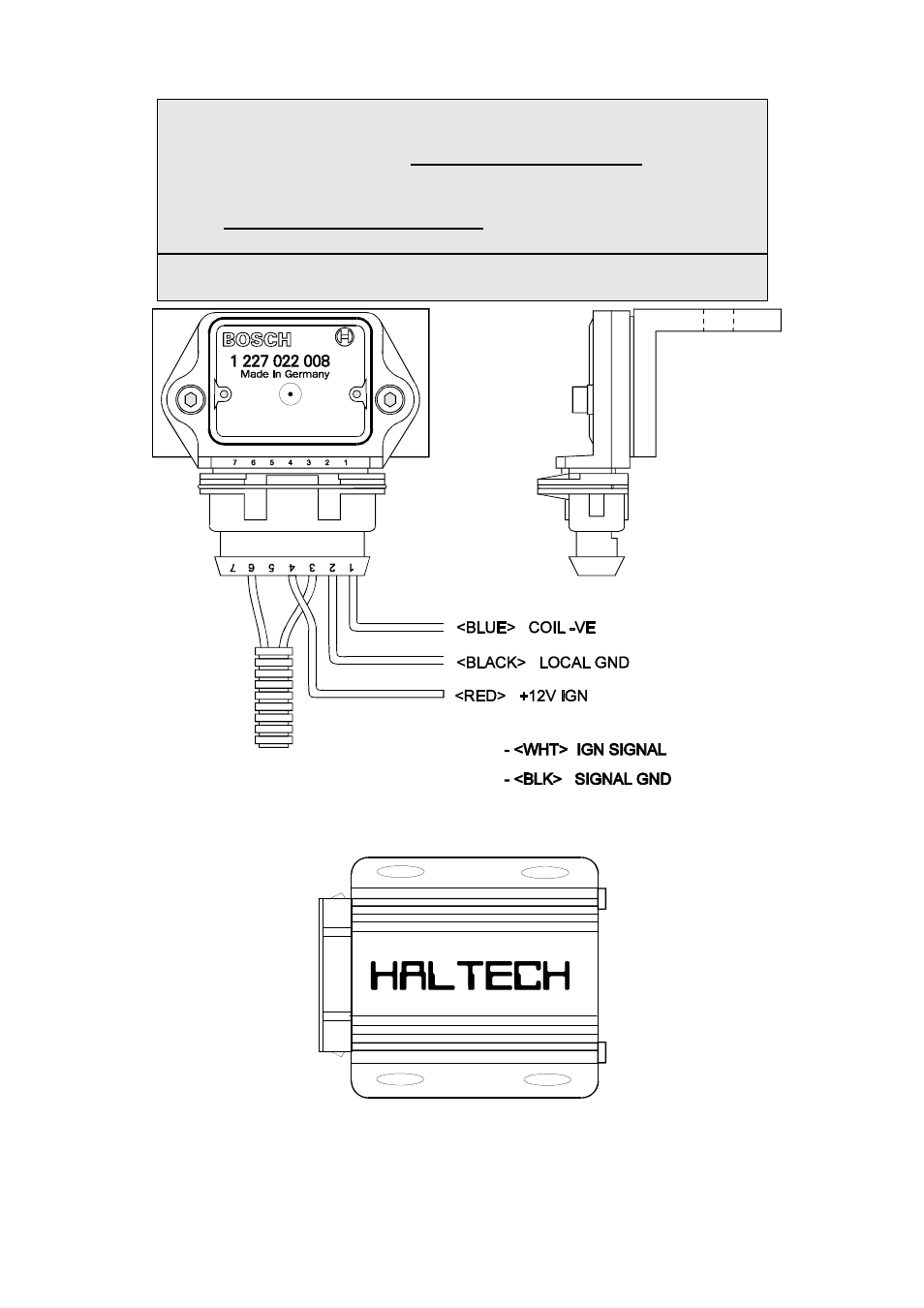

Bosch Ignition Module (Supplied as Haltech part EB023): The module must be mounted on the bracket,
and the bracket must be mounted to a suitable surface. It behaves and is configured in the same fashion as
the Haltech module as seen below.
Haltech Ignition Module (part number HIM1).
TO E6K IGNITION OUTPUT
