99

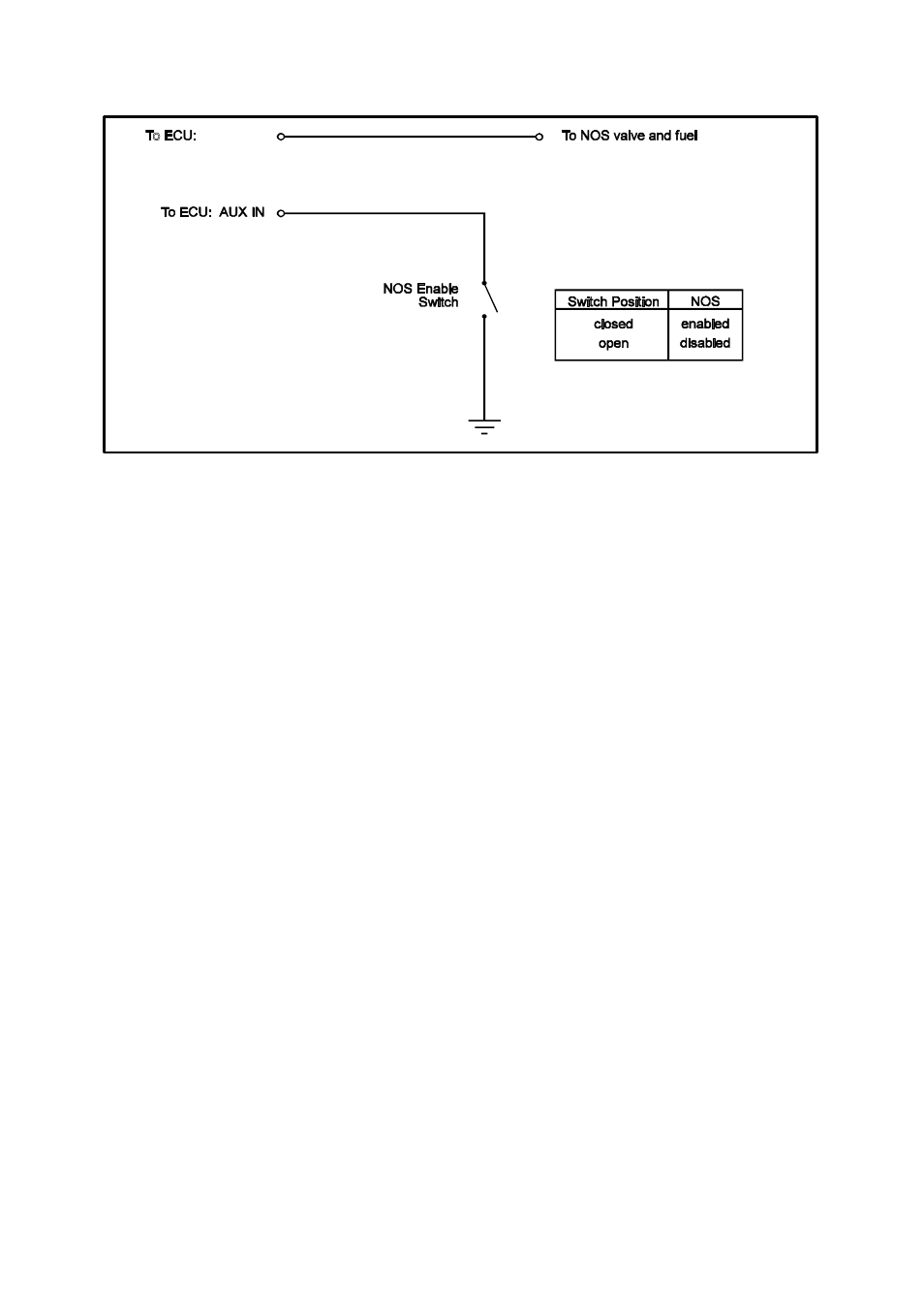

Figure 16.14. Example circuit for a NOS switch.
16.15 Anti-Lag Switch
The Anti-Lag switch function allows turbo-charged vehicles to decrease the “lag” associated
with boost when the motor is not under full load.
There are 5 adjustable parameters:
Retard Value
The ignition timing is retarded by this angle when the Anti-Lag conditions for
operation are met. The valid range for the Retard value is (-70° to 70
°
)
% Inc. Fuel
The percentage of fuel increased during Anti-Lag operation. The valid range for this
function is (1 to 50)%.
Zero TPS ONLY
If the Anti-Lag function is to be used when the Throttle Position Sensor value is zero
then turn this function ON. Otherwise select OFF.
Zero Inj Time
If the zero TPS only function is ON then this value determines the amount of fuel
injected at zero or no throttle. The valid range is (1-16) ms.
Throttle Perc
The throttle position value below which Anti-Lag is operational. The valid range is (5-
80)%.
On RPM
This field specifies the RPM above which Anti-Lag is operational.
On Coolant Temp
This field defines the coolant temperature above which Anti-Lag is operational
Dig. 1 or 2
