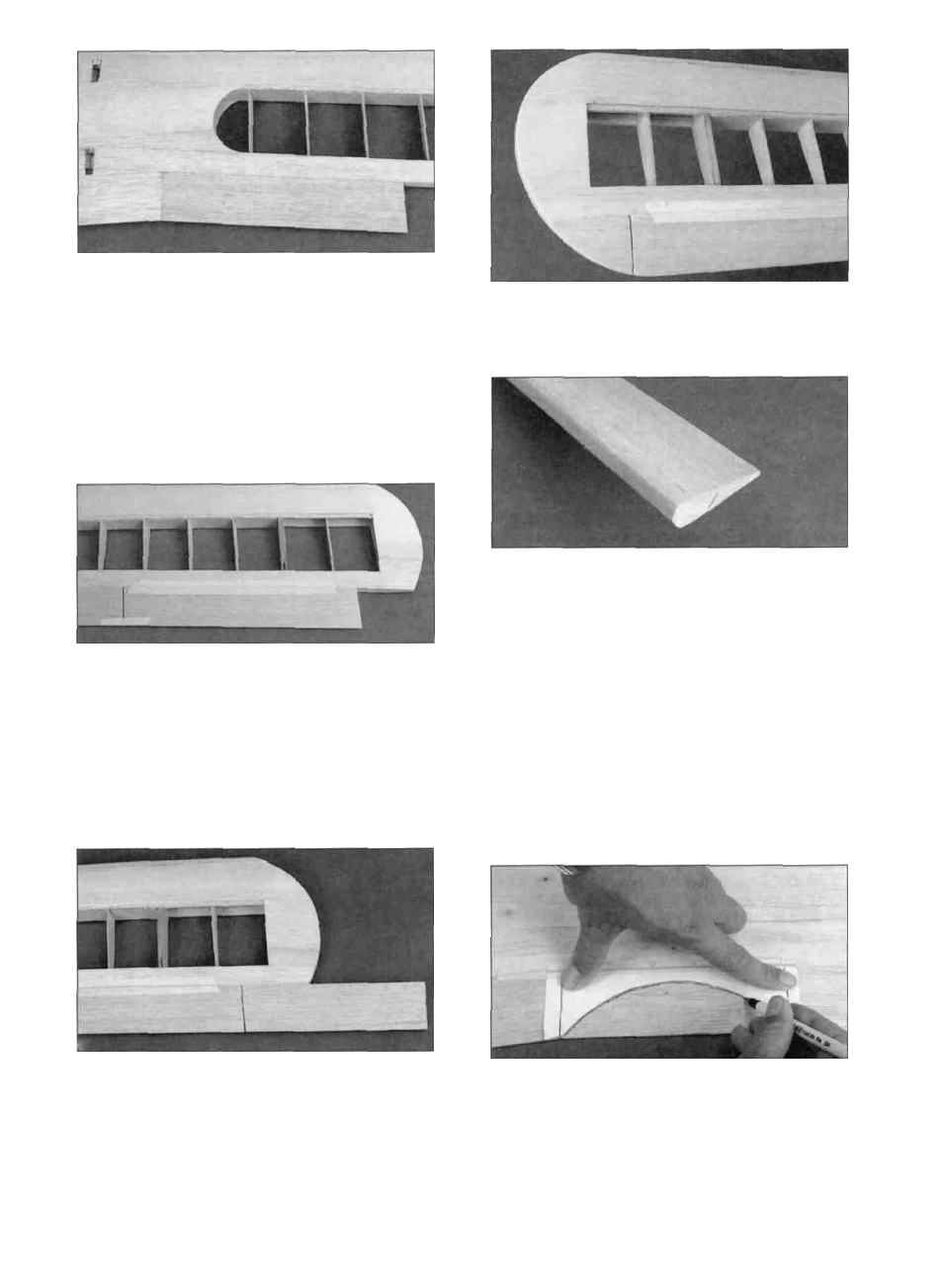

D 6 Trial fit the inner TE in place against the
center TE Sand it if necessary to achieve a good
fit and glue it in place Make sure it is aligned with
the center TE and the chord line of the airfoil.
D 9 Cut and sand the tip of the wing to match the
outline on the plans Sand the entire wing tip smooth.
D 10 Remove the aileron and bevel the front edge
to a "V" shape as shown on the cross section view
of the plans A razor plane and a coarse sanding
block make this step quick and easy.
D 7 Securely tape the aileron in place
approximately 1/16" away from the inner TE Make
sure it is aligned with the inner TE and the chord
line of the airfoil
D 11 Place the aileron over the aileron drawn on
the top ( l e f t ) wing plan and mark the hinge
locations Hold the aileron in place on the wing and
transfer the marks over to the wing Cut the hinge
slots following the hinge slotting guidelines on
page 10
D 8 Glue the outer TE in place approximately
1/16" away from the aileron Look down the trailing
edge of all three pieces to make sure they are all
aligned with each other.
D 12 Cut the top wing center TE template out of
the plans and tape it in place on the wing Mark
where the center trailing edge should be cut and
remove the paper
- 4 3 -
