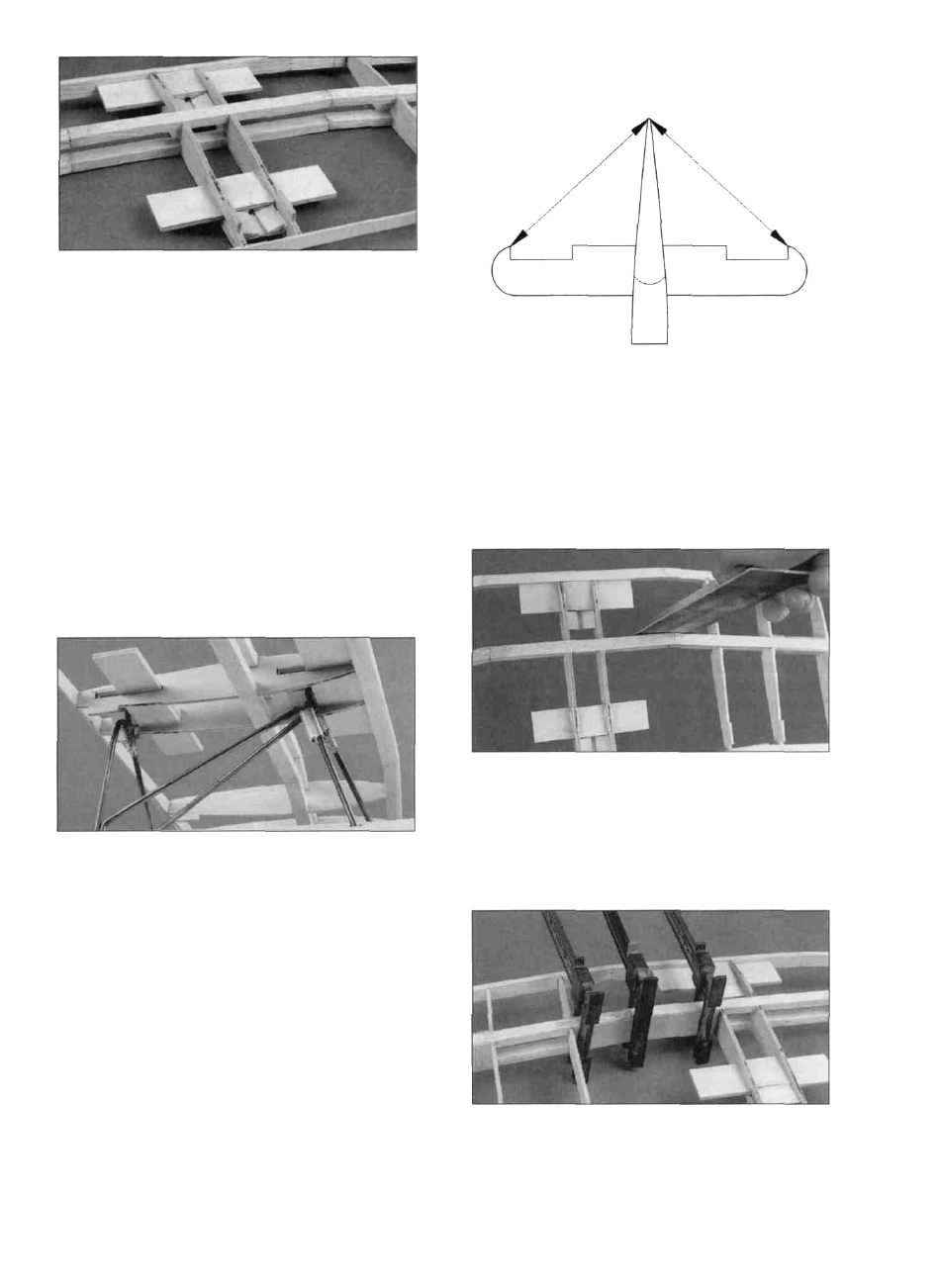

D 15 Insert the inner tube in the rear holder (you'll
have to bend it to do so) and install the rear 1/4"
basswood triangle wire guides Make sure the
inner tube is straight during this step Remove the
inner tube.
These measurements
must be equal!
D 17. Check the alignment of the top wing by
measuring from the aft end of the fuselage to each
wing tip as shown in the sketch If you are not
satisfied with the alignment of the wing (the
measurements must be within 1/4" of being equal),
you may cut the TE of the T1 ribs loose, adjust the
wing, and re-glue the ribs.
D 16 Test fit the wing onto the cabane wires To
do so, just drop the wing down onto the wires until
the wires hit the 1/16" ply wire stops The triangles
will help line up the wires with the tubes Now slide
the wing backwards until it will go no further Look
at the cabane wires from underneath the wing to
see if they are fully inserted into the brass tubes as
shown in the photo If the wing does not easily
slide onto the cabane wires, it is usually because
the wires are not correctly aligned Follow the
guidelines outlined in the last step to adjust the
wires until the wing will slide all the way on Bend
the wires a little at a time and frequently check the
fit of the wing as you go The easiest way to
remove the wing is to wrap your fingers around the
rear cabane wires and gently push on the trailing
edge of the wing.
D 18 Sand the front corner of the center
spar/spar junction to remove the sharp corner.
Sand the front and rear surfaces of the spars to
remove any bumps.
D 19. Test fit the die-cut 1/32" ply top wing
joiners (SKY6W06) in place on the front and the
-36
