DAD 141.1 Technical Manual, Rev. 2.2 - February 2014 Page 46 of 54
10.9.6. P’n’ Polarity of Setpoint [ Index 0x2070 ]
This command is used to setup the switch characteristic of the 3 setpoints S0, S1 and S2.
Master (PC / SPS) sends Slave (DAD 141.1) responds Meaning
P0 P0:+00000 Request: Polarity of setpoint S0 is OFF
P0_1 OK Setup: Polarity of setpoint S0 is ON
P1_1 OK Setup: Polarity of setpoint S1 is ON
P1 P:+00001 Request: Polarity of setpoint S1 is ON
For further informations or better understanding see the examples in chapter 10.9.5, too.
Note: All changes to the setpoint settings have to be stored in the EEPROM using the SS command. See
chapter 10.12.

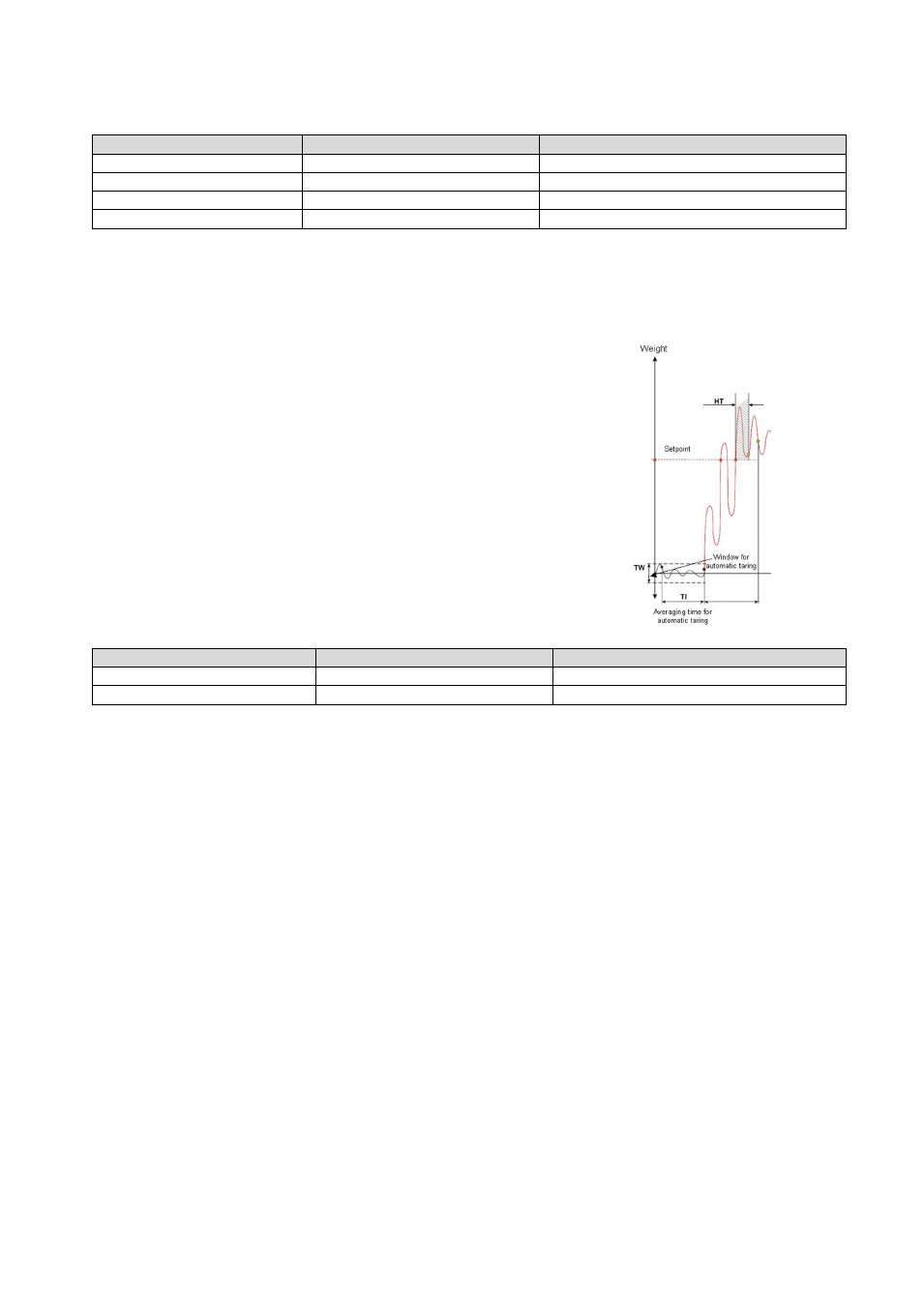

10.9.7. HT Hold time for Setpoint Limit [ Index 0x2408 ]
This command defines the hold time for the setpoint limit. The signal has
to exceed the setpoint limit continuously at least for this time period before
a switch event will be initiated.
Default setting: HT = 0 ms.
Master (PC / SPS) sends Slave (WCN-H 122.1) responds Meaning
HT H+00000 Request: HT = 0 ms
HT 200 OK Setup: HT = 200 ms
