C-PRO GIGA HARDWARE MANUAL

Pag. 11

2.2

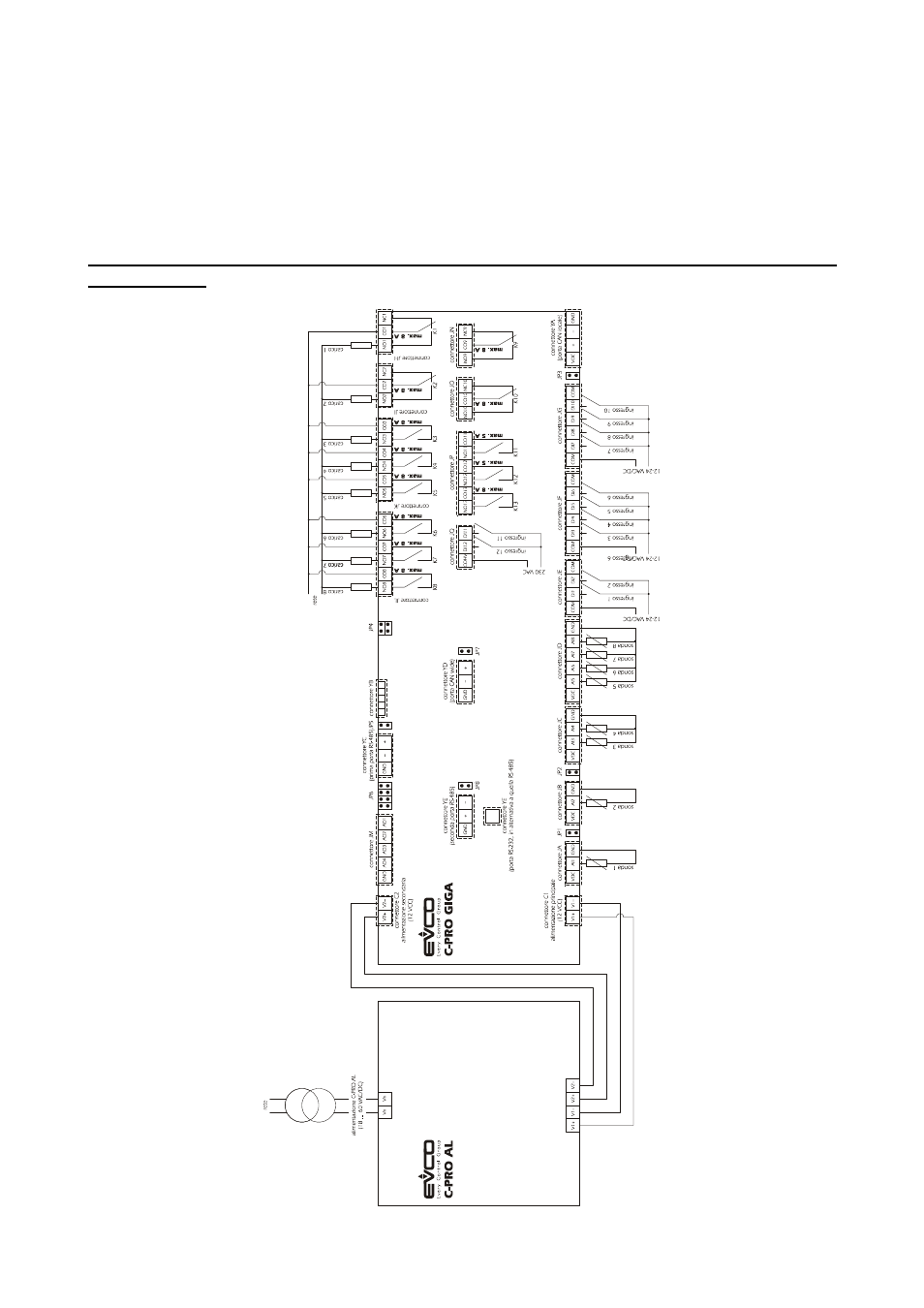

C-PRO GIGA wiring layout


C-PRO GIGA is available in two different versions : the first with 12 VDC + 12 VDC and the
second with 24 VAC/DC power supply.
The C-PRO GIGA 12 VDC + 12 VDC wiring layout connection is reported here below;
C-PRO AL power supplier adoption is recommended
Please, refer to the section “power supply” of chapter 3 regarding the utilization
optoinsulation.
