EVBOX1 | Installation guide ver. 1.2 | Code 144BOX1E124
page 8 of 88
2
DESCRIPTION
2.1
Outward appearance description

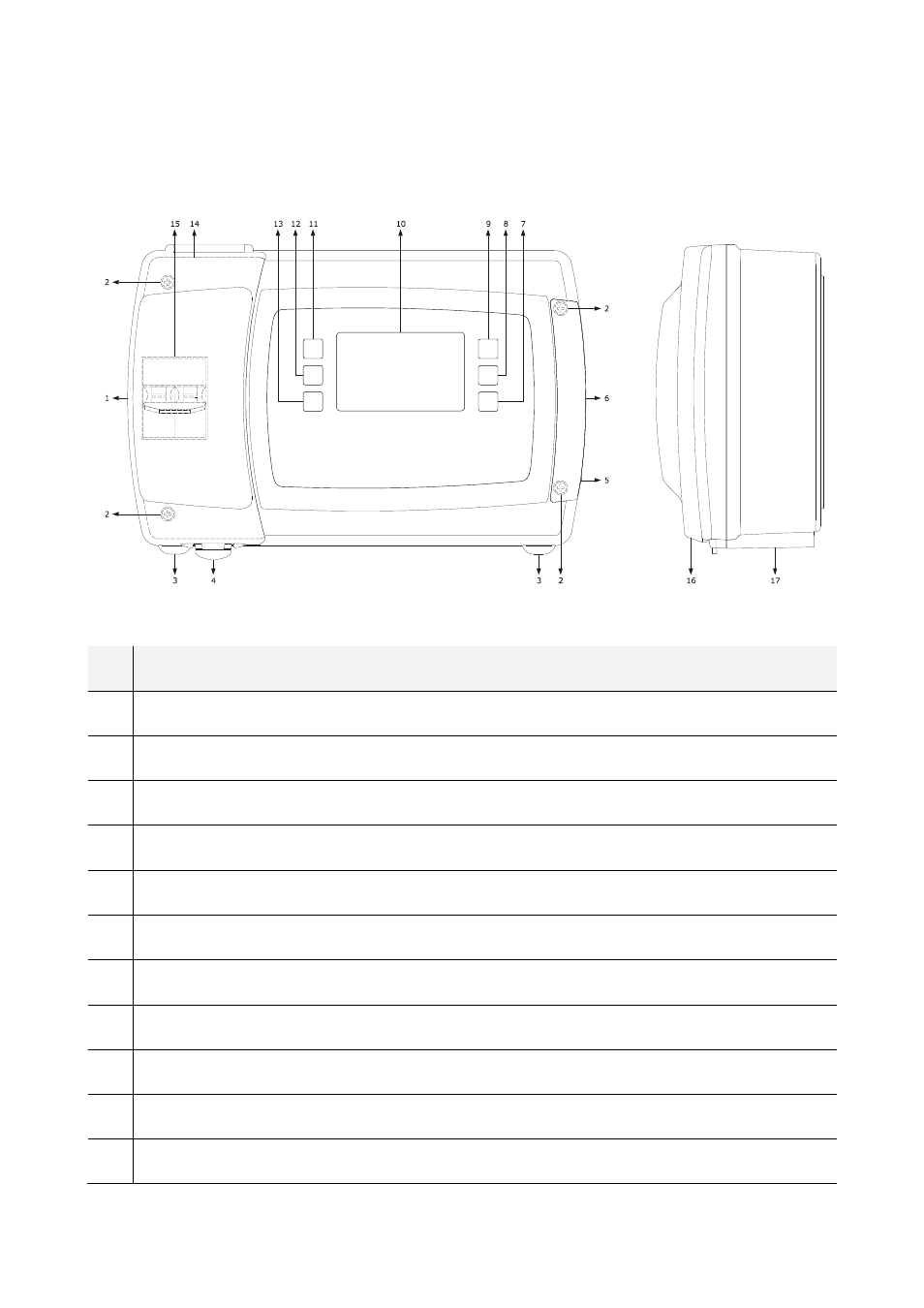

The following drawing shows the outward appearance of the devices.
The following table shows the meaning of the parts of the front of the devices
PART MEANING
1
access door to the magneto-thermal switch or differential magneto-thermal circuit breaker
2
screws fastening the front shell to the back shell
3
tab fastening the front shell to the back shell
4
handle of the access door to the magneto-thermal switch or differential magneto-thermal circuit breaker
5
handle to remove the cover of the screws fastening the front shell to the back shell
6
cover of the screws fastening the front shell to the back shell
7
on/off key, hereinafter also "ON/STAND-BY" key
8
manual defrosting key, hereinafter also "DEFROSTING" key
9
auxiliary functions key, hereinafter also "AUXILIARY" key
10 display
11
increase key, hereinafter also "UP" key
