EVCO S.p.A.

EVBOX1 | Installation guide ver. 1.2 | Code 144BOX1E124

page 16 of 88

4.2

Electric connection for models EVB1204N9 and EVB1214N9

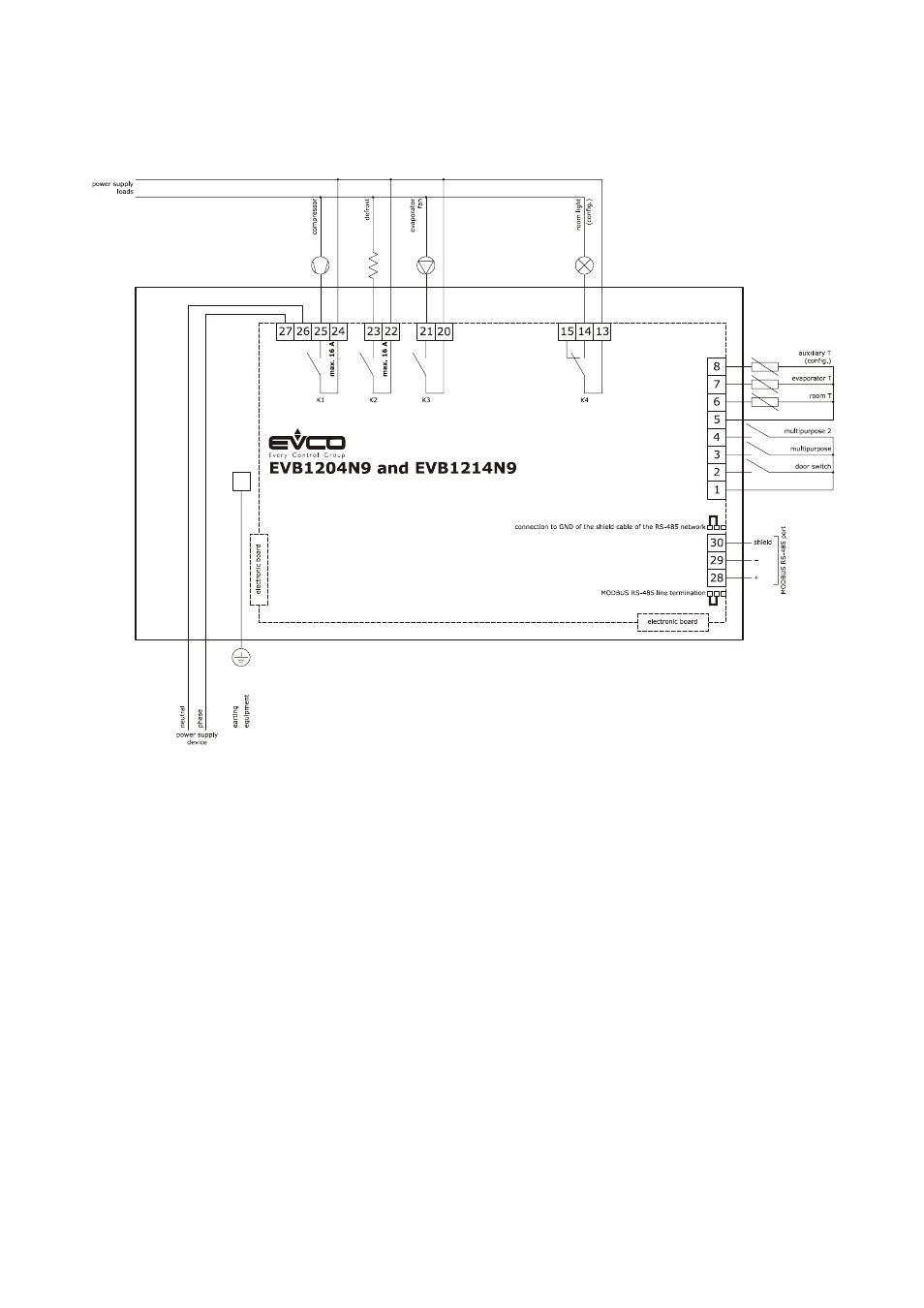

The following drawing shows the electric connections for the EVB1204N9 and EVB1214N9 models.
