EVCO S.p.A.

EVBOX1 | Installation guide ver. 1.2 | Code 144BOX1E124

page 17 of 88

4.3

Electric connection for models EVB1206N9 and EVB1216N9

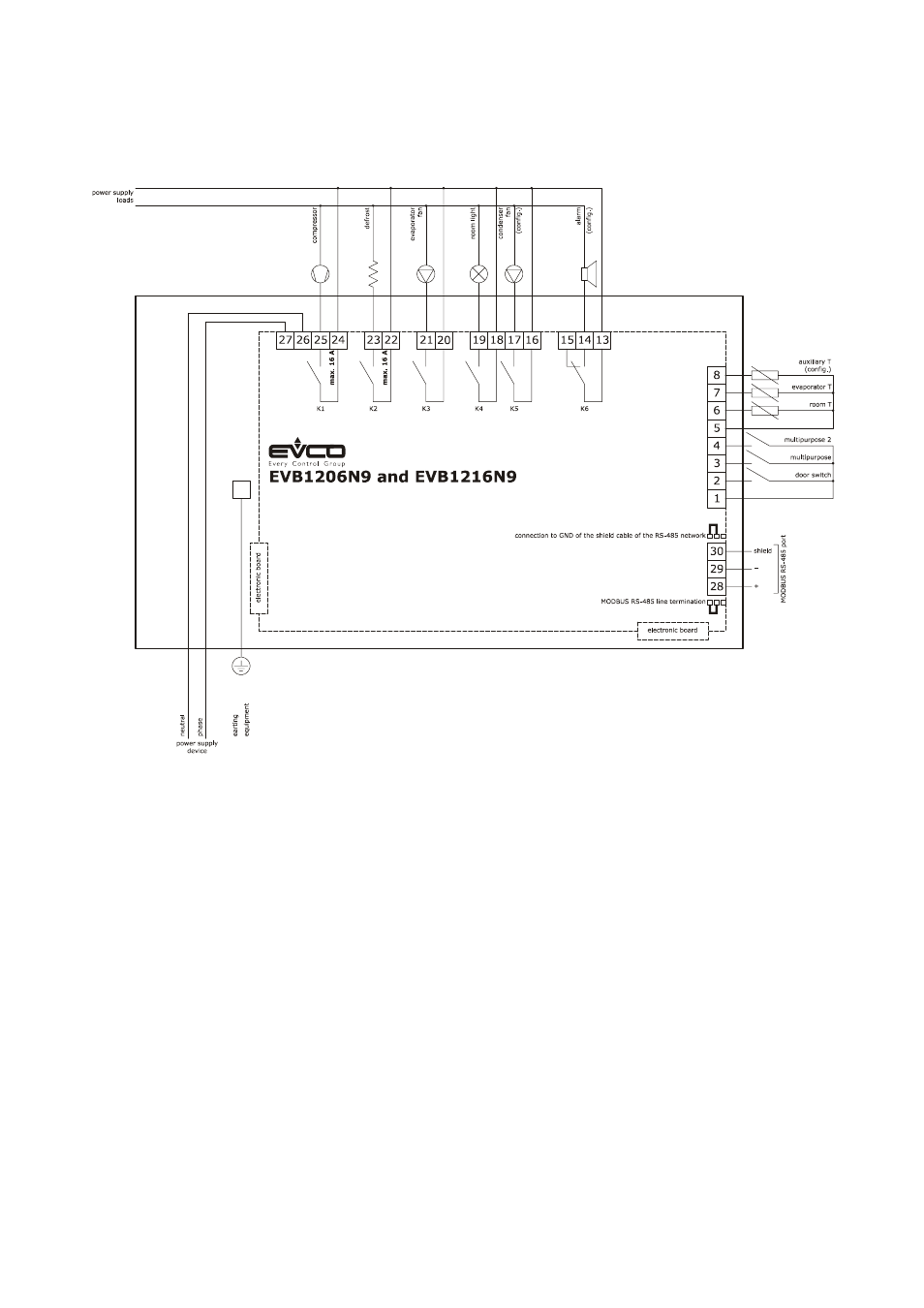

The following drawing shows the electric connections for the EVB1206N9 and EVB1216N9 models.
