Page 21

PC104 RocketPort Option

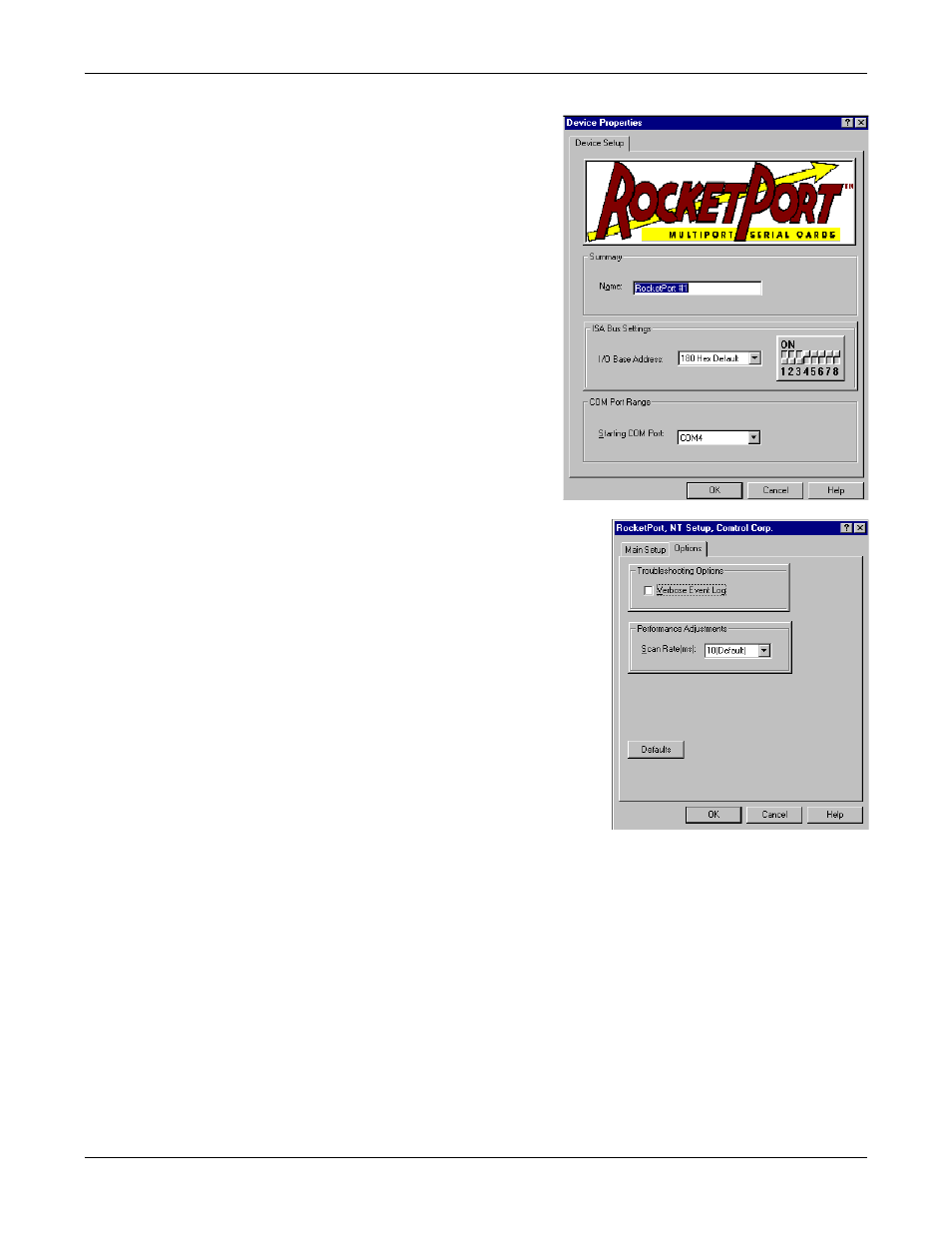

Configuring the Serial Ports

Change the Name or the
Starting COM Port number.

Note: Do not change the I/O

Base Address. It is
preset at the factory
and it cannot be
changed in the field.

•

COM1 is assigned to the
CONSOLE port.

•

COM2 is assigned to the
AUX A port.

•

COM3 is assigned to the
optional PCMCIA
Ethernet/Modem card.

The default starting COM port
number is COM4.

Select Ok to return to the
Main Setup screen.

If you want to set the verbose event log
or change the scan rate, select the
Options tab.

Check Verbose Event Log if you want
more information logged in to the
Event Viewer when the driver loads.

Use the Scan Rate drop list to select a
driver servicing rate.

Select Ok to close the Setup window.

Select Ok to close the Network window.

10. Reboot if requested by the system.
