nstaliing accessories
CAUTION
1. Before installation , be sure to disconnect the DC
power supply,or battery, or damage may occur the
equipment.
2. You can not install the digital recording unit(DRU-
1) and the DTMF unit togetner.
You should choose one unit to install.
Detent
CTCSS unit TSU-6
The use of the optional sub-audible tone decoder TSU-
6 allows CTCSS (Tone squelch) operation. When this op­
tion is active squelch will only open when the proper
tone is received.

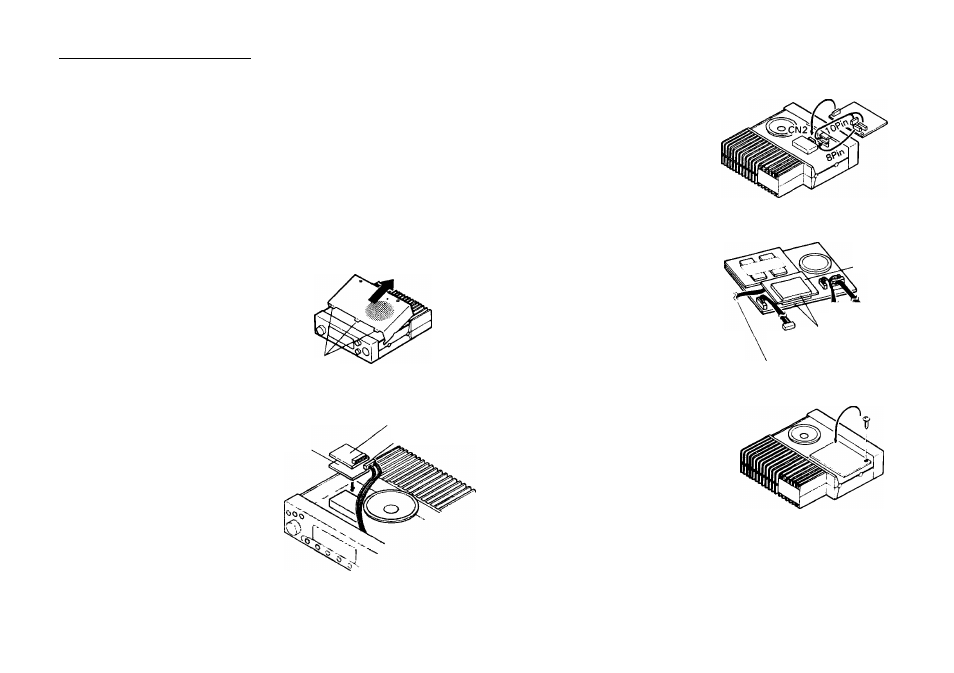

Installation
1. Remove the 2 screws secur­
ing the Top cover.
2. Carefully remove the top
cover.. (Fig.l)
3. Remove the backing from
the small cushion provided
with the TSU-6 and attach
it to the back of the TSU-6
as shown in Fig. 2.
4. Attach the cable from
TSU-6 as shown in Fig. 2.
5. Remove the backing from
the other side of the small
cushion and attach the
TSU-6 to the transceiver as
shown.
6. Replace the cover and
tighten the screws to
complete the installa­
tion. Fig. 2
Fig. 1
Cushion
TSU-6 unit
Attach the cable.
Digital Recording Unit DRU-1
1. Remove the 2 screws se­
curing the Top cover.
Carefully remove the top
cover. (Fig. 1)
2. Attach the three cables
from the DRU-1 in the
transceiver as shown in
Fig. 3. Don’t forget to at­
tach the TSU-6 as shown
if you are installing this
unit at the same time
(Fig. 4).
Fig. 3
TSU-6
Attach the cushions
Route the wiring
3. Tighten the screws
(fig. 5).
4. Replace the cover and
tighten the screws to
complete the installa­
tion.
Fig. 4
Fig. 5
54
