® ★ ¿/¿/ Indicates the active memory channel
number. ★ indicates that the chan­
nel is locked out.
C is displayed during call channel.
Either PO, PI, P2, P3, or PA is dis-
played during paging.
® F I On whenever the F key has been de­
pressed. Also shows the last memory
channel number that had been se­
lected.
On when the Tone Alert function is
active. The indicator flashes when
signal has been received.
On when the Tone Decode and En­
code function has been activated.
— On when the Tone Encode function
has been activated.
On when the Priority Alert function
has been activated.
On when the Reverse function has
been activated.
@ — + Display the selected transmitter off­
set direction.
Both — and + light at the same
time during split channel operation.
@ :388.888s
Displays the operating frequency to
the nearest kHz digit; or the tone
frequency etc.
— The indicator flashes when scan­
ning.

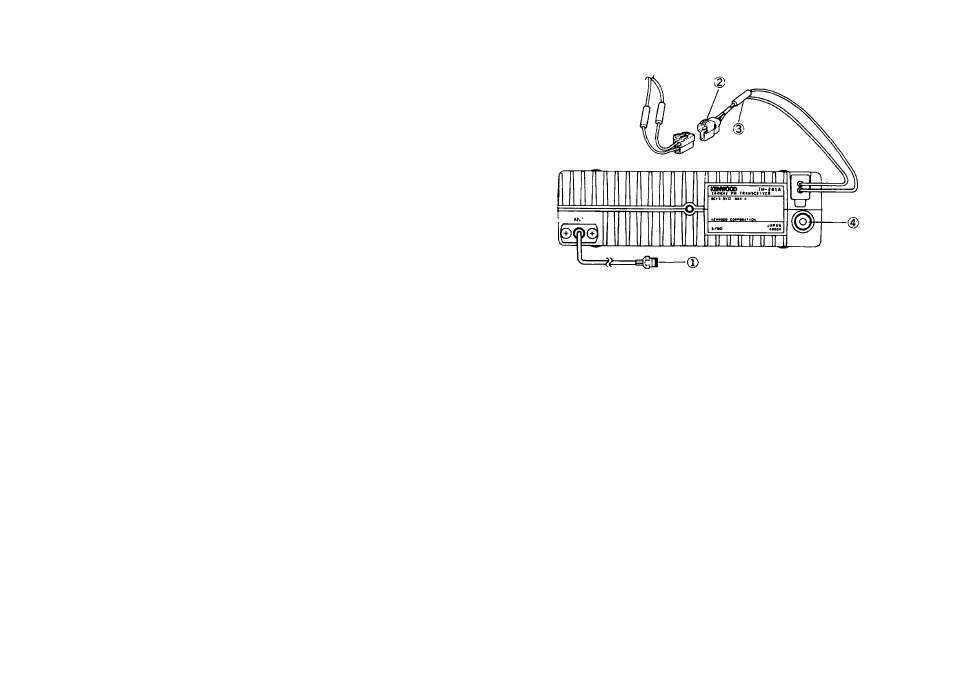

5-1-3 Rear Panel
@ CTCSS
I____
AL
REV
©ANTENNA connector
Attach an antenna with a low SWR and an
impedance of 50 ohms.
© 13.8 VDC power input connector
Connect the supplied DC power cable to this
connector.
Pay close attention to the polarity. Red is positive and
black is negative.
d)Fuse holder
Contains a requaired fuse.
TM-241A: 15A, TM-441A: lOA, TM-541A: 8A
Do not use a larger fuse as damage might result to
the transceiver.
0 External speaker jack
This jack is used to connect an external speaker. The
speaker should have an impedance of 8 ohms.
