Connecting the SMC in a System with Multiple Serial Console Lines 3-9
3.3.3 Dress the Cables
Form a service loop and tie wrap the BN25G cable to the rail.

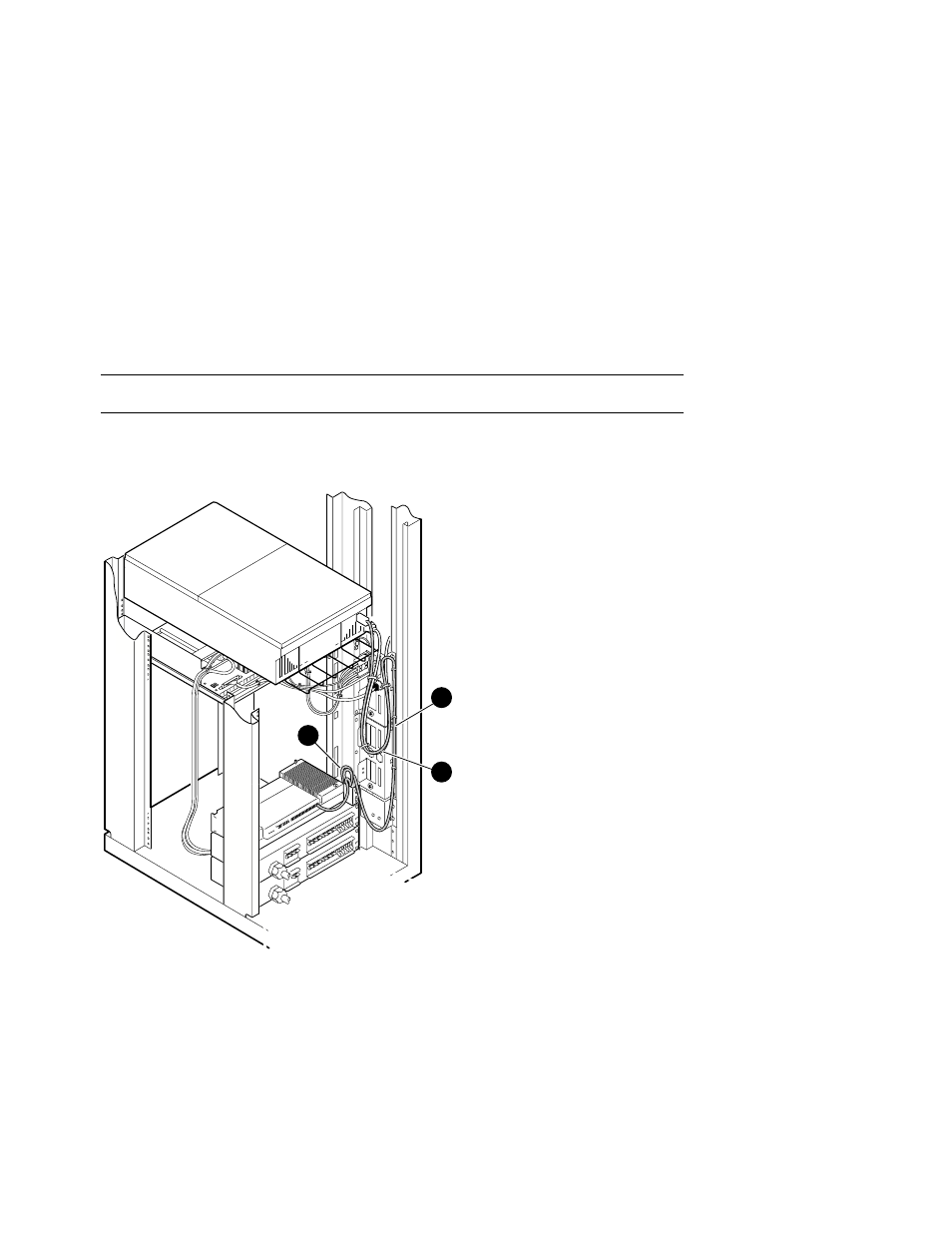

Figure 3–7 Terminal Server Cable
PK-1753-00
1 2 3 4 5 6 7 8
1
3
2
1. At the PCI box end, tie wrap the BN25G cable (17–03212–05) to the CSB
junction cable (17–04936–xx) to form a service loop (
in Figure 3–7).
2. Tie wrap the BN25G cable down the rail of the expander cabinet ( ).
3. At the bottom of the rail, coil the BN25G cable and place the extra length in
the rail (
).
