Installing a Terminal Server in a GS160/320 System B-7
1. Set the position identifier dial at the rear of the terminal server to
management agent (the position after 14; Figure B–4).
2. Attach the power cord to the rear of the terminal server power supply. Do
not plug the other end into the power source yet.
3. From the rear of the GS160/320 power cabinet, install the U-type fasteners
in holes 14 and 16 from the bottom on both side rails, above the AC input
boxes (Figure B–5).
4. Install the terminal server in the power cabinet.

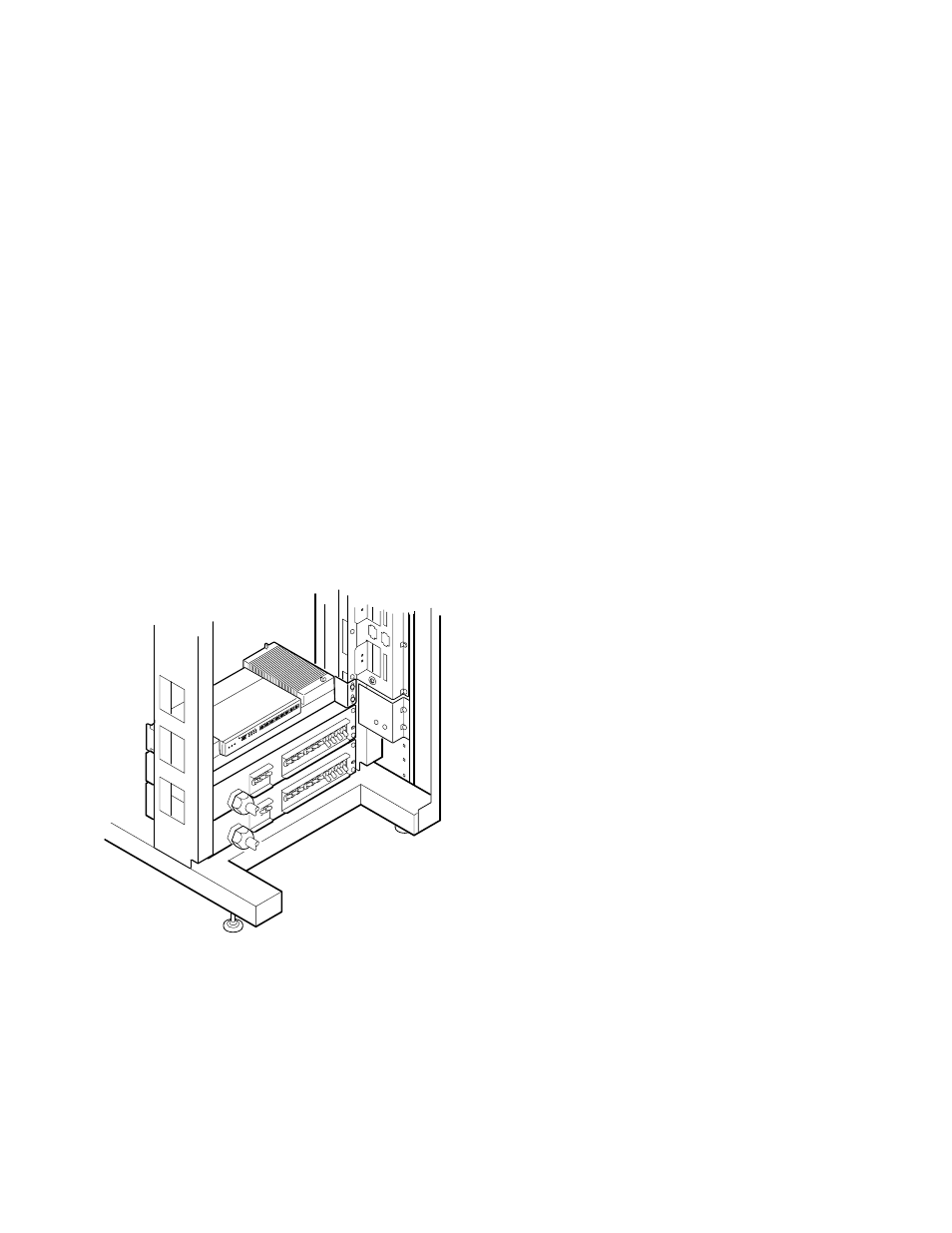

Figure B–5 Terminal Server Placement in the GS160/320 System
PK-1740-00
1 2 3 4 5 6 7 8
