Compaq GS320 User Manual
Page 265
Installing a Terminal Server in a GS80 System
C-7
1.
Set the position identifier dial at the rear of the terminal server to
management agent (the position after 14; Figure C–4).
2.
Attach the power cord to the rear of the terminal server power supply. Do
not plug the other end into the power source yet.
3.
At the front of the GS80 rack, install the U-type fasteners in holes 1 and 3
at the bottom of both side rails (Figure C–5).
4.
Install the terminal server in the rack.

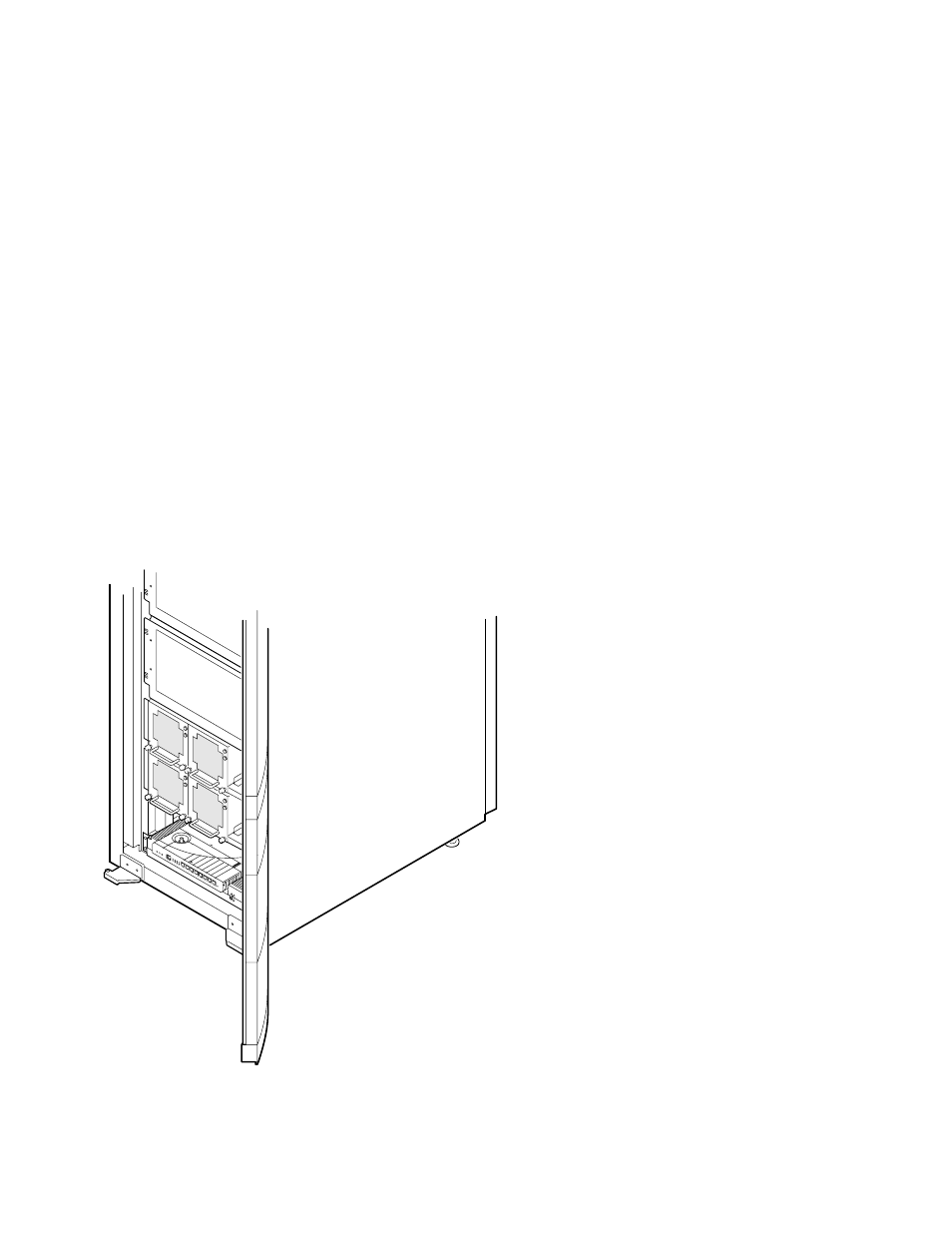

Figure C–5 Terminal Server Placement in the GS80 System
PK-1791-00
