Preparation
I
Powering the Camcorder
from an AC Outlet
You can also power the camcorder from a
power outlet by using the supplied AC adapter/
battery charger and DC cable.
Caution:
• The supplied AC adapter/battery charger is
specially designed for use with this camcorder,
and should not be used as a power supply for
other camcorders.
1
Make sure that the Power switch is set
to OFF.
2
3
Lift up the viewfinder.

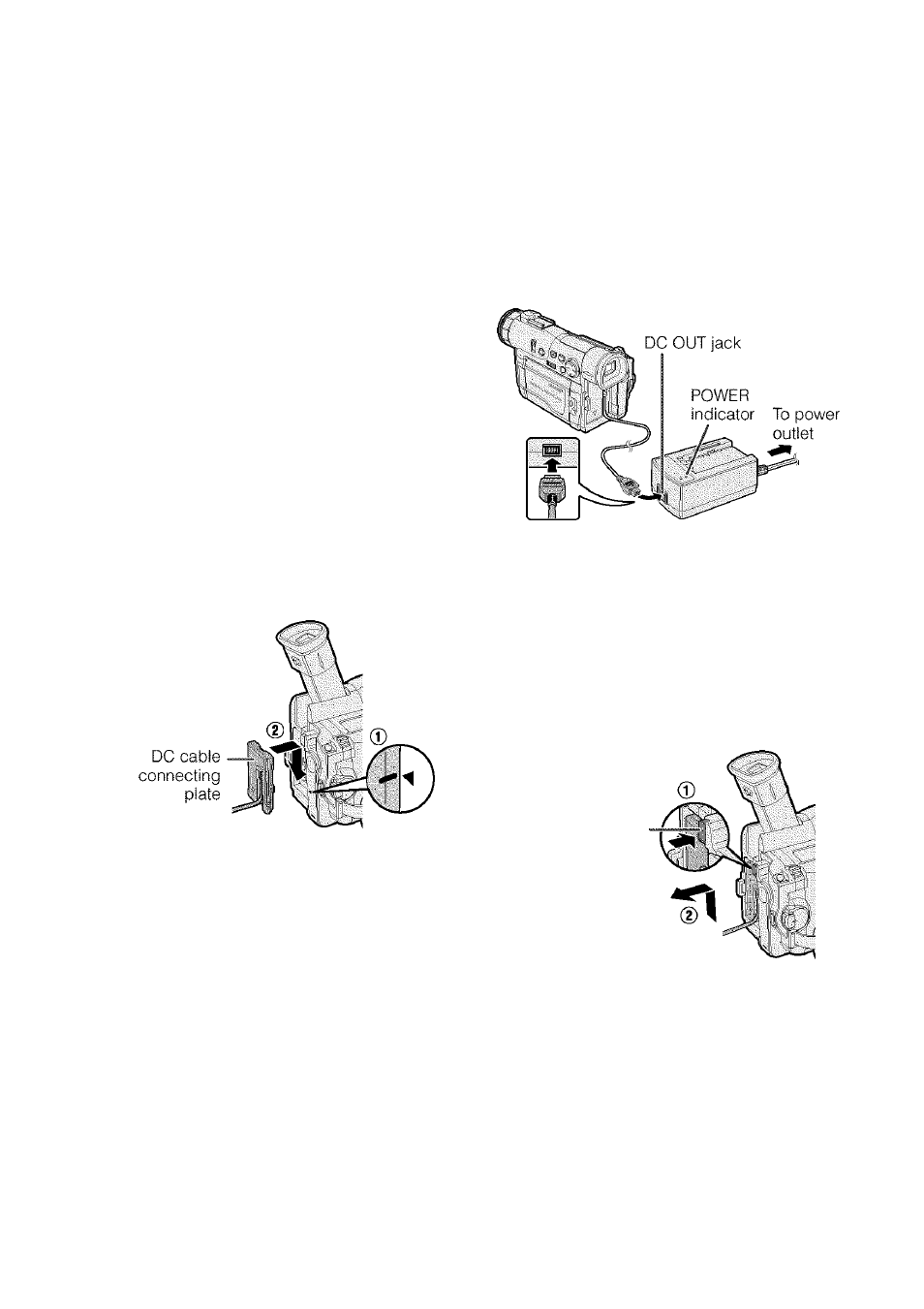

Align the ■■■ mark on the side of the
DC cable connecting plate with the ◄
mark on the camcorder (®), and slide
the connecting plate down completely
until it locks into place (®).
4
Lower the viewfinder.
Insert the DC cable plug into the DC
OUT jack on the AC adapter. Connect
the supplied power cord to the AC
adapter, and insert the AC plug into a
power outlet.
• The POWER indicator on the AC adapter
lights up, and the camcorder is supplied
power.
Note:
• When the AC adapter/battery charger is used to
power the camcorder, it cannot be used to
charge the battery pack.
Removing the DC cable from the
camcorder
Perform steps 1 and 2 above. Press the power
source PUSH release button (®), and slide the
connecting plate up and take it out (@).
Power source PUSH
release button
Cautions:
• BEFORE REMOVING THE DC CABLE,
ALWAYS STOP RECORDING OR PLAYBACK
AND TURN THE POWER OFF. Removing the DC
cable while shooting or during playback may
damage the tape by causing it to wrap around
the video head drum or may destroy the
SmartMedia card, rendering it unreadble and
unwritable.
• Disconnect the camcorder from the AC adapter
if you will not use the camcorder for a long
period of time.
