7

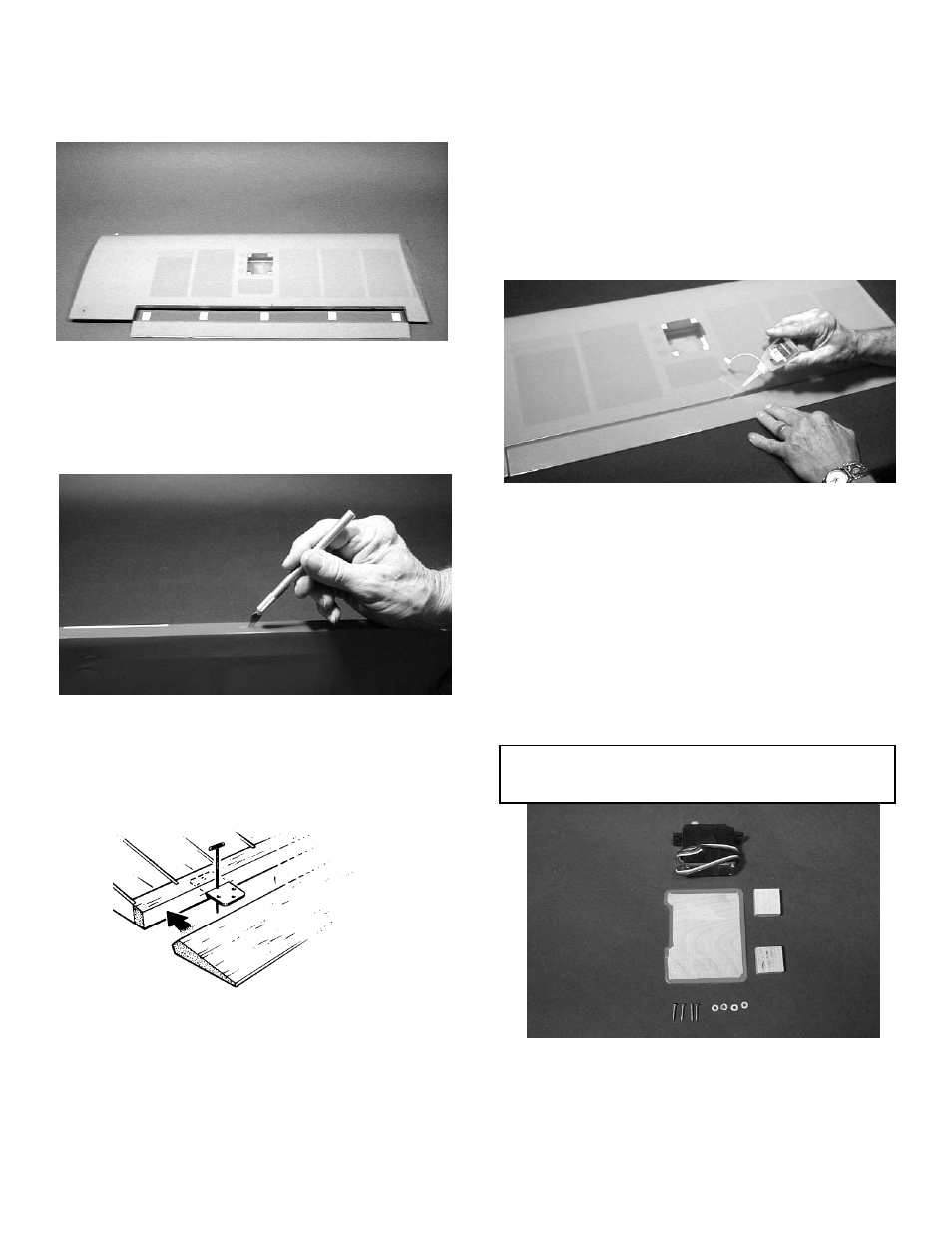

WING ASSEMBLY & INSTALLATION
AILERON INSTALLATION
1. Collect the following parts:
(1) Left wing
(1) Right wing
(1) Left aileron
(1) Right aileron
(10) Jet hinge
2. Locate the pre-cut aileron hinge slots in both
wing halves. Using a hobby knife (#11 blade),
slide the blade into each slot to make sure it
is cleanly cut.
Repeat this process with the ailerons, mak-
ing sure all hinge slots are clean.
3. Place a straight pin into the center of each of
the four JET™ hinges.
Slide each hinge into the hinge slots on one
of the wing halves. The pin will prevent the
hinges from going in further than halfway into
the wing.
4. Select the aileron for the wing on which you
are working and insert the exposed half of
each hinge into the aileron slots.
Slide the aileron toward the wing until no gap
remains between the aileron and the wing.
5. Carefully check the alignment of the aileron.
There should be about 1/32" on both ends.
When satisfied with the alignment, remove
the straight pins, being sure to keep the
aileron tight to the wing. You may wish to
apply a few pieces of masking tape to keep
the pieces in place.
6. Keeping the aileron and wing in position,
apply 3 or 4 drops of thin CA to the small
exposed area of each hinge.
Turn the assembly over and again apply 3 or
4 drops of CA to the exposed hinge surfaces.
Allow to dry for 10 minutes before flexing the
aileron.
7. Repeat the above steps for the other half of
the wing.
AILERON SERVO INSTALLATION
The following pictures may not exactly match the hard-
ware you are using. Always check the radio manufac-
turer's instructions when installing radio equipment.
1. Collect the following items:
(1) Aileron servo door
(2) 3/8 x 3/4" square Servo Mounting Block
(4) Servo Mounting Screw (supplied with radio)
(4) #2 Washer
(4) #2 x 3/8" Screw
(1) Servo with rubber grommet
