OUTFITTING THE FUSELAGE

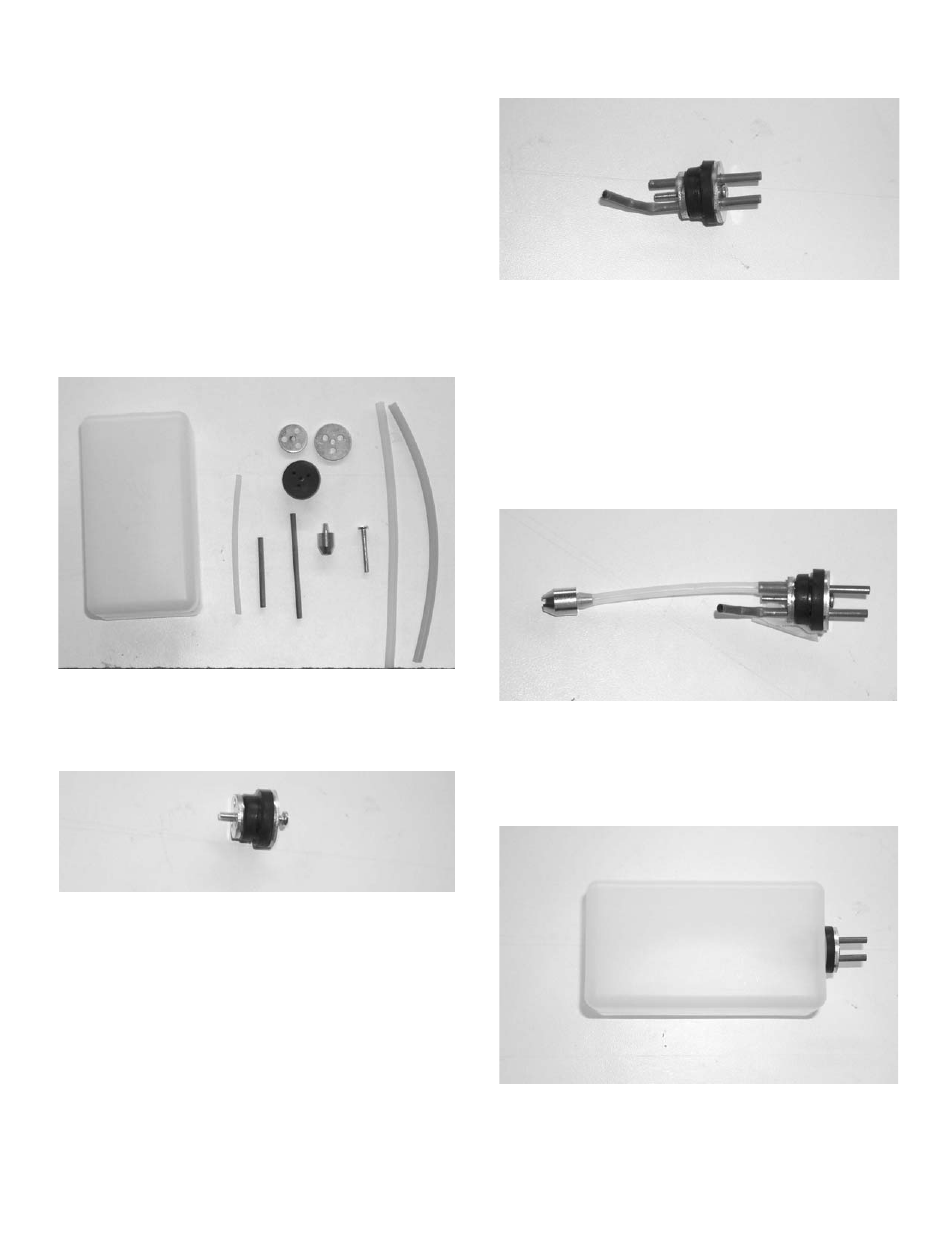

FUEL TANK ASSEMBLY
1. Gather the following items
(1) fuel tank
(1) rubber tank stopper
(1) clunk
(1) 3mm x 25mm screw
(1) cap washer large
(1) cap washer small
(1) 3mm x 40mm brass tube
(1) 3mm x 60mm brass tube
(1) silicone tube 4mm x 80mm
(2) silicone tube 5mm x 165mm
2. Insert the 3mm screw through the center
hole in the large washer, through the
center hole in the rubber washer against
the large side, and screw the small wash-
er on the back side.
3. Insert the brass tubes through two of the
holes. They should be arranged so as
the long one will be on the right side of
the plane and the short one on the left
side.
The tubes should extend out the front of
the cap 5/8”. Bend the long tube up at
about a 20 degree angle. This should be
adjusted so the end of the tube almost
touches the top of the tank when
installed.
4, Install the 4mm silicone tube to the short
brass tube and install the clunk to the
other end of the silicone tube. This is the
fuel pickup and must be free to “flop”
around in the tank so it can pick up fuel in
any attitube.
